Best 3-Phase AC to DC Converter Guide for Power Projects
Three-phase bridge rectifiers and three-phase AC to DC converter modules provide robust, high-current DC outputs for CNC machines, motor drives, and power supplies. This guide highlights five top options, detailing specifications, heat management, and suitability for demanding industrial applications. Each entry includes direct access to the product page, image, and key features to help you compare performance and reliability at a glance.
| Product | Brand | DC Output Current | Voltage Rating | Notes |
|---|---|---|---|---|
| DAOKAI Rectifier MDS100A | DAOKAI | 100 A | 1600 V | High power three-phase diode bridge |
| Walfront MDS 200A | Walfront | 200 A | 1600 V | 5-terminal three-phase rectifier |
| Chazcool Bridge Rectifier SQL100A | Chazcool | 100 A | 1600 V | Heatsink included, 3-phase |
| PETiB Three Phase Bridge Rectifier | PETiB | 50 A | 1000 V | Aluminum heat sink, compact |
| Walfront SQL100A 1600V | Walfront | 100 A | 1600 V | Low ripple, heatsink ready |
The following selections emphasize three-phase rectification with robust heat dissipation, stable DC output, and suitability for power supplies, CNC drives, and generator systems. Each product section provides a concise overview, supported by listed features and a direct link to the Amazon product page for quick comparison.
DAOKAI MDS100A 1600V Three-Phase Rectifier
Designed for three-phase rectification, this module delivers up to 100 A average forward rectified current. It features a large over-current capacity, effective heat dissipation, and low forward voltage drop, supporting stable power conversion in power supplies and industrial controls. The device uses a full-wave bridge topology and is built with high-quality materials to ensure reliable performance across thermal cycles.
Walfront MDS 200A 1600V Three-Phase Rectifier
This three-phase rectifier module provides 200 A DC output with a 1600 V rating. Built with a solid welded structure, it emphasizes improved temperature handling and power cycling capability. It is specifically designed for three-phase rectification, ideal for large power supplies or generator-based applications requiring robust DC output.
Chazcool SQL100A 1600V 3-Phase Rectifier
The 3-phase diode bridge from Chazcool provides a 100 A DC output at up to 1600 V. It emphasizes good heat dissipation and a high overcurrent capacity, making it suitable for power supplies and other heavy-duty DC conversion requirements. The heatsink integration supports sustained operation under heavy loads.
PETiB Three Phase Bridge Rectifier 50A 1000V
Petib’s three-phase bridge rectifier delivers 50 A at 1000 V with an aluminum heat sink designed for efficient heat management. This configuration suits compact generators and small power conversion setups where reliable three-phase rectification is needed in a portable package.
Walfront SQL 100A 1600V Three-Phase Rectifier (SQL Series)
This 100 A three-phase rectifier module emphasizes reliable DC output with good temperature and power cycling performance. It is designed for three-phase applications and is compatible with a range of industrial power supply configurations, offering a balanced combination of performance and durability.
Aigoodele MDS200-16 200A 1600V Phase Rectifier
This 200 A, 1600 V three-phase bridge rectifier is designed for CNC machines, motor drives, and high-power power supplies. It features a ceramic substrate for improved heat resistance and dissipation, supporting stable DC output under elevated load, with a recommended external heat sink for optimal performance at high currents.

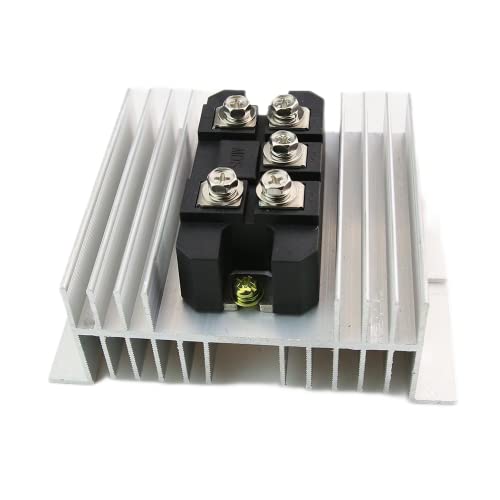

Aigoodele MDS100A1600V 3-Phase Rectifier
Offering 100 A at 1600 V, this MDS100A module provides a compact, robust solution for three-phase rectification. It includes a heatsink option and warranty support, making it suitable for power supplies and industrial control systems requiring reliable DC conversion with effective thermal management.
Three Phase Diode Bridge Rectifier by Eujgoov
This two-piece industrial module provides robust three-phase rectification at up to 200 A 1600 V, designed for high-efficiency AC to DC conversion. The welded construction supports stable performance in demanding electrical equipment, with emphasis on reliability and longevity in power conversion tasks.
Buying Guide: Key Purchase Considerations
- Current and voltage ratings: Match DC output current and voltage to your load and supply capabilities. Higher ratings offer headroom for startup surges and thermal drift.
- Thermal management: Heatsinks, ceramic substrates, and overall heat dissipation influence reliability under continuous operation. Consider external cooling for high-current setups.
- Topology and redundancy: Full bridge rectifiers are common for three-phase systems. Some modules offer multiple terminals for easier wiring; assess if you need built-in redundancy or modular expandability.
- Physical construction: Welded or robust mechanical design enhances durability in industrial environments and reduces thermal cycling failures.
- Compatibility with generators and power supplies: Ensure the rectifier’s input/output specifications align with your generator or supply unit, including ripple characteristics and regulation needs.
- Heat dissipation features: Aluminum heat sinks, ceramic substrates, and mounting options affect performance at elevated currents; verify installation requirements.
- Warranty and service: Look for vendor support, warranty length, and availability of replacement parts to minimize downtime.
When selecting a three-phase AC to DC converter, balance electrical ratings with thermal management, enclosure considerations, and integration needs. The products listed here provide varied current capacities and cooling approaches, enabling you to tailor a solution for CNC drives, motor control, or stable DC power generation in industrial settings.
