Best Thermal Protectors for Motors to Prevent Overloads
Choosing a reliable thermal protector is essential for safeguarding motors in refrigerators, compressors, and small appliances. This guide highlights top options designed to prevent overloads by cutting power when temperatures or currents exceed safe limits. All selections are compatible with standard 120V systems and fit common motor protectors. The included buying considerations help you compare features, temperature ranges, and installation needs to find the right match for your equipment.
| Product | Brand | Temp/Current Range | Key Benefit |
|---|---|---|---|
| E-outstanding Compressor Thermal Overload Protector | E-outstanding | 250W, current-based shutoff | Direct replacement for mini fridges and coolers |
| FDXGYH 2pcs Compressor Thermal Overload Protector | FDXGYH | ~250W / 26mm diameter | Easy installation, reliable protection |
| Rebower KSD9700 NC 80C | Rebower | 80°C, NC | Fast acting, accurate control |
| Walfront NR2-36 Electric Heat Thermal Overload Relay | Walfront | 50-60 Hz, 690V | Broad compatibility, durable protection |
| SEKI HB-2 Korea Thermal Protector | SeKi | 50–150°C, 125V/250V rated | Bimetallic, robust motor protection |
E-outstanding Compressor Thermal Overload Protector
Designed as a practical replacement part for mini refrigerators, wine centers, and beverage coolers, this protector is built with high-quality materials for stable, reliable performance. It connects to the compressor and shuts down the motor when current draw becomes excessive, preventing damage from overheating or overcurrent. The kit typically includes two units, making it convenient for dual-motor systems or spare parts inventories. Lightweight and easy to install, it offers a straightforward upgrade path for aging compressors.
FDXGYH 2pcs Compressor Thermal Overload Protector
These protectors are sized for common 1/3 HP refrigeration units, with a diameter of 26mm and height of 16mm. They are manufactured from durable materials to maintain stable characteristics under load. Their primary function remains to disconnect the compressor when current exceeds safe limits, reducing the risk of motor damage and extending equipment life. The compact design makes installation feasible in tight spaces typical of home refrigeration units.
Rebower KSD9700 NC 80C Thermostat
The KSD9700 family offers fast action and precise temperature control with a Normally Closed (NC) configuration. With a target around 80°C and a 250V rating, it is well-suited for household motors and various small appliances, including washing machines, fans, and induction cookers. Its compact build and reliable switching make it a strong option for engineers seeking dependable temperature-triggered protection without complicated wiring.
Walfront NR2-36 Electric Heat Thermal Relay
Walfront’s NR2-36 relay is designed to protect electrical motors with a focus on durability and long service life. Its compatibility spans circuits rated for 50-60 Hz and insulation up to 690V, providing a broad application range. The device uses an innovative temperature-compensation mechanism to maintain accurate protection against overloads, making it suitable for industrial and residential motor systems alike.

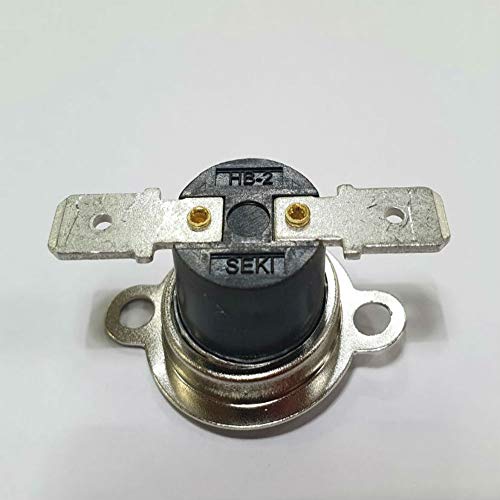

SEKI HB-2 Korea Thermal Protector (50–150°C)
SEKI HB-2 is a bimetallic temperature switch designed for motor protection across a wide temperature range. Rated for 125V 15A or 250V 7.5A, it provides reliable cut-out at specified temperatures from 50°C to 150°C depending on variant. The bimetal construction offers robust resistance to mechanical wear, which benefits long-term motor protection in appliances and small industrial equipment.
SEKI HB-2 Korea Thermal Protector (150°C)
This variant of the SEKI HB-2 is tuned for higher-temperature protection, offering consistent performance in systems where motors may run hotter due to load or ambient conditions. Its construction emphasizes reliability and ease of integration into existing motor protection schemes, helping prevent premature equipment failure in harsh operating environments.
Buying Guide
Key purchase considerations help ensure you select the right thermal protector for motor protection in your application:
- Temperature setpoint: Choose a range that aligns with your motor’s operating temperature and the ambient environment. NC (Normally Closed) configurations are common for straightforward shutdown triggers.
- Voltage and current ratings: Verify compatibility with your power system (125V, 250V, etc.) and the motor’s current draw to avoid nuisance tripping or inadequate protection.
- Mounting and form factor: Ensure the protector fits your equipment’s size constraints and mounting options. Some models are compact for tight spaces.
- Reliability and durability: Look for units with robust materials (metal or high-grade plastic) and proven switching mechanisms designed for frequent cycling.
- Wiring and compatibility: Check connector types and whether the device is designed to replace existing protectors or requires plumbing into the circuit.
- Application scope: Some protectors are tailored for refrigeration compressors, while others target general-purpose motors in household appliances or small machinery.
- Maintenance and replacement: Consider availability of spare parts, multi-pack options, and documentation to facilitate installation and troubleshooting.
Overall, selecting the right thermal protector involves balancing precise temperature control, electrical ratings, and physical compatibility with the equipment you’re protecting. For replacement parts, prioritize models with clear installation instructions and compatibility notes to minimize downtime and ensure consistent motor protection.
