Best Molded Case Circuit Breakers for PV OEM Manufacturing
The following molded case circuit breakers (MCCBs) are suitable for photovoltaic (PV) systems, battery banks, and related OEM applications. This guide highlights models with high-current ratings, durable contacts, and versatile DC/AC compatibility to meet solar, storage, and marine battery needs. Each product section includes a direct link to its Amazon listing, a visual, and core features to help buyers compare performance and safety attributes for robust electrical protection.
| Product | Brand | Current Rating | Voltage Range |
|---|---|---|---|
| CNLonQcom 250A MCCB | CNLonQcom | 250A | DC 12-500V / AC 90-480V |
| Heschen 63A MCCB | Heschen | 63A | DC 250V / AC 90-240V |
| CNLonQcom 200A MCCB | CNLonQcom | 200A | DC 12-250V / AC 90-240V |
| OSOBSUNC PV MCCB (4P) | OSOBSUNC | 100A-630A | DC/AC 500V-1000V (varies by model) |
| SVZMKFTBW 250A 2P MCCB | SVZMKFTBW | 250A | DC/AC ranges shown on listing |
CNLonQcom 250A MCCB for PV and Battery Systems
Advanced circuit protection combines thermal-magnetic trip technology with high current handling to shield DC and AC power rails. This MCCB offers a short-circuit breaking capacity up to 20kA and utilizes durable silver-alloy contacts (moving contacts 35% silver; fixed contacts 45% silver) to improve conductivity and reduce arcing. Designed for versatile operation, it supports DC voltages from 12V to 500V and AC voltages from 90V to 480V, with a 250A rating. The housing uses high-insulation resin for enhanced electrical safety in demanding environments, such as solar installations, battery banks, or marine systems.
Heschen DC MCCB, 63A, PV System Ready
This Heschen model is a single-pole DC MCCB rated at 63A with DC 250V operation and a high 8kV impulse withstand. It is tailored for photovoltaic systems requiring dependable protection against overloads and short circuits in DC circuits, and its compact form suits PV arrays, battery disconnect locations, and small off-grid configurations. With a robust 10kA breaking capacity, it provides reliable isolation for critical solar components and wiring.

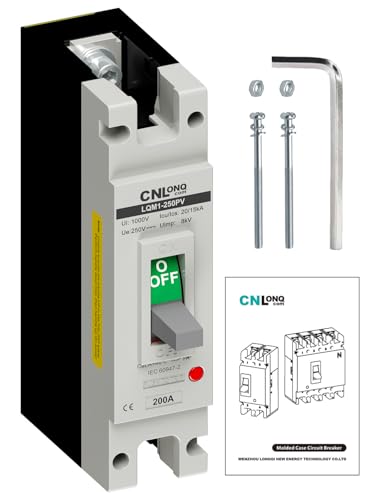

CNLonQcom 200A MCCB, PV and Battery Applications
This 200A DC MCCB provides thermal-magnetic protection suitable for battery banks, PV arrays, and off-grid inverters. It shares the same high-current design philosophy as the 250A model, including silver-alloy contact durability and broad DC/AC voltage compatibility. It is optimized for 12–250V DC operation and 90–240V AC, making it a versatile choice for solar charge controllers, UPS systems, and marine installations seeking simple, reliable breaker protection.
OSOBSUNC PV DC MCCB – 4 Pole Options
OSOBSUNC offers multi-pole DC MCCBs suitable for PV systems and battery protection. Models cover 1P to 4P configurations with current ratings ranging from 100A to 630A and voltages up to 1000V in DC and AC applications. These MCCBs are designed for PV protection subsystems, including PV combiner boxes and large DC distribution boards, providing flexible isolation and safety in high-energy installations.
SVZMKFTBW 250A 2P DC MCCB
Designed for PV systems and DC distribution, this 2P 250A MCCB emphasizes robust protection for both loads and batteries. While the listing highlights standard “circuit breaker, protection” features, the model is positioned for scenarios where compact dual-pole protection is preferred in solar charge stations and DC buses, offering solid interrupting capability and reliable operation in PV and off-grid configurations.
Buying Guide: Key Considerations for PV OEM MCCBs
- Voltage and Current Range: Select MCCBs that support the system voltage (DC and AC) and the desired current rating to prevent nuisance trips while ensuring adequate protection during faults.
- DC vs. AC Compatibility: PV systems rely heavily on DC protection for battery banks and PV arrays; ensure the MCCB can handle DC interruptions and impulse withstand voltages appropriate for PV environments.
- Electrical Safety and Materials: Look for high-insulation housing materials, durable silver-alloy contacts, and robust insulation to reduce arcing and extend service life in outdoor or marine installations.
- Trip Technology: Thermal-magnetic trip mechanisms provide reliable overload and short-circuit protection. Evaluate break capacity (kA rating) to match the fault current in your system.
- Pole Configuration: Choose 1P, 2P, 3P, or 4P MCCBs based on the number of conductors and the layout of the PV array or battery system. Multi-pole designs offer better isolation and safety.
- Size, Mounting, and Compatibility: Confirm DIN-rail compatibility and enclosure dimensions to fit existing PV combiner boxes or distribution boards.
- Certifications and Standards: Ensure the MCCB meets relevant safety standards for your region and application (industrial, marine, or residential solar installations).
- Maintenance and Replacement: Consider models with readily available replacement contacts and straightforward testing procedures to minimize downtime in critical solar applications.
In selecting MCCBs for PV OEM projects, buyers should balance protection level, mechanical fit, and long-term reliability. The models listed above provide a cross-section of DC-focused and mixed-voltage MCCBs, with various current ratings and pole configurations to support diverse solar, storage, and marine deployments. Always verify spec sheets and compatibility with your system design before purchasing.
