Best VFD for Exhaust Fans: Efficient, Adjustable Ventilation Solutions
The best VFD for exhaust fans enables precise speed control, energy savings, and safer operation in commercial kitchens, restrooms, and industrial exhaust systems. This guide highlights five solid options and explains who each is best for, plus practical trade-offs. Whether you need simple single‑phase control or robust three‑phase performance, these selections help you tailor airflow to negative pressure targets and environmental conditions.
| Product | Best For | Key Benefit |
|---|---|---|
| Tjernlund COP2 Heater Interlock Control | Restaurants, HVAC technicians | Modulates approved exhaust fans to maintain a negative pressure set point |
| CAPTIVE-AIRE Restaurant Canopy Hood Exhaust Fan | High-CFM commercial hoods | Direct drive with reliable speed control for up to 3000 CFM |
| MGMYVDDGVW VFD Speed Controller (1.5kW) | General-purpose exhaust fans | Multiple protections, energy savings, easy operation |
| VENTILATION DIRECT VXD240 | Large commercial kitchens | 5,000 CFM with VFD for precise, high‑speed control |
| KBWPCQMPKW VFD Controller (0.75KW) | Small to mid-size systems | Multiple protections, straightforward speed control |

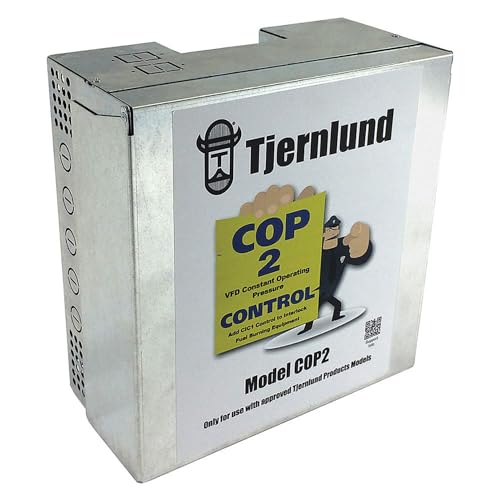

Tjernlund COP2 Heater Interlock Control for RT-Series Fans
The COP2 includes a VFD that modulates the speed of an approved Tjernlund exhaust fan to maintain a user-adjustable negative pressure set point. The set point is configured via dip switches on the COP2 circuit board, enabling precise control across an operating range of -0.05” WC to -0.53” WC in 0.01” WC steps. Best for: facilities needing automatic pressure regulation and integrated safety interlock in make-up air or exhaust systems. Caution: ensure compatibility with the RT-Series fans and confirm the dip-switch programming matches your target pressure range.
CAPTIVE-AIRE Restaurant Canopy Hood Exhaust Fan
This high-speed, direct-drive centrifugal upblast exhaust fan operates with three-phase power and includes speed control, a disconnect switch, and a large wheel. It handles up to 3000 CFM at -1.000” WC effective static pressure and runs at about 1183 RPM. Best for: high-demand kitchen hoods needing strong exhaust flow with reliable speed control. Caution: heavy unit with a substantial base; verify mounting and electrical requirements for your installation.
MGMYVDDGVW Multiple Protection VFD Controller (1.5kW, 220V to 380V)
Features include high efficiency and energy savings through copper windings and smooth variable-speed control. It offers multiple protections against overvoltage, undervoltage, overload, overcurrent, and overheating, plus a dust- and moisture-resistant housing for long-term operation. Best for: beginners to mid-level setups seeking safe, durable VFD operation with simple parameter adjustments. Caution: ensure electrical compatibility with your motor’s voltage and phase configuration.
VENTILATION DIRECT VXD240 High-Crequency VFD Exhaust Fan
Premium efficiency, 5,000 CFM centrifugal upblast exhaust fan with a three-phase drive and VFD speed control. Capable of handling -1.500” WC static pressure, it runs at 923 RPM with a 5.0 HP motor. Best for: large kitchens or facilities requiring robust, adjustable ventilation with high airflow. Caution: high power requirement; confirm electrical service and duct compatibility.
VENTILATION DIRECT VXD180 High-Performance VFD Exhaust Fan
This 3,000 CFM upblast exhaust fan uses a direct-drive, three-phase motor with VFD control. It features an 18-3/4″ wheel, -1.000” WC ESP capability, and runs at 1183 RPM with a 1.5 HP motor. Best for: mid-size kitchens or workshops needing reliable, compact VFD-controlled ventilation. Caution: check the base size and mounting space to fit the 28” x 28” or similar footprint.
Buying Guide: VFD For Exhaust Fans — Key Considerations
- Voltage and phase compatibility: Ensure the VFD matches your motor’s voltage (single-phase vs three-phase) and that available electrical supply aligns with VFD input requirements.
- Control needs: If you require automatic pressure regulation, select models with built-in interlock or compatible sensors that can modulate speed to maintain target negative pressure.
- Protection and durability: Look for multiple protections (overvoltage, undervoltage, overload, overheating) and a dust/moisture-resistant housing for harsh environments.
- Flow requirements: For high-CFM environments (e.g., restaurant hoods), prioritize higher-capacity VFDs and larger wheel sizes to achieve target airflow without excessive motor strain.
- Installation footprint: Check base dimensions, mounting requirements, and space for wiring and cooling to avoid fit issues with existing ductwork or canopies.
- Energy and maintenance: VFDs offer energy savings and soft-start benefits; consider ease of parameter settings and service accessibility.
Frequently Asked Questions
- What is a VFD and why use one for an exhaust fan?
A VFD (variable-frequency drive) controls motor speed by adjusting the frequency of the electrical supply, allowing precise airflow and energy savings in exhaust systems. - Can a VFD be used with any exhaust fan?
Most VFDs work with many three-phase motors and some single-phase to three-phase setups, but compatibility depends on motor rating and wiring. Check the motor label and VFD manual. - What does negative pressure mean in exhaust systems?
Negative pressure means the system pulls air from the surrounding space into the duct, preventing leakage and helping control odors and contaminants. - What safety considerations matter with VFDs?
Ensure proper electrical clearance, proper enclosure for dust/moisture, and adherence to local code requirements. Also verify motor protection and proper S.O.S. (soft-start) settings. - How do I choose between a higher-CFM VFD and a smaller one?
Match airflow to the occupied space’s needs. Larger spaces with heavy exhaust loads need higher CFM and robust motors, while smaller rooms benefit from smaller, efficiency-focused drives. - Is installation best done by a professional?
Yes. VFD wiring, motor compatibility, and electrical codes typically require a licensed professional for safety and compliance.
