Best Valve Position Indicator Limit Switch Box: A Comprehensive Guide
The valve position indicator limit switch box is a key component in pneumatic systems, giving clear feedback on valve positions and enabling safer, more reliable automation. This guide highlights five top options, detailing construction, electrical specs, and environmental ratings to help you choose the right model for your application.
| Product | Brand | Key Feature | Ideal For |
|---|---|---|---|
| UNOX Limit Switch Box for Pneumatic Actuators | UNOX | IP67 waterproof, -20°C to 80°C, 0-90 position indicator | Harsh environments, outdoor or damp locations |
| APL-210N Limit Switch Box Valve Position Indicator (Generic) | Generic | Aluminum die-cast shell, 8-terminal, wide voltage range | Industrial lines needing robust enclosure |
| APL-210N Industrial Valve Limit Switch Box (GANGTING) | GANGTING | Solid aluminum housing, weatherproof visual indicator, tool-free cam adjustment | Frequent maintenance, variable actuator setups |
| APL-210N Mechanical Switch Box (BOQZPZR) | BOQZPZR | 2SPDT, AC/DC compatibility | Versatile control circuits |
| APL210N Mechanical Limit Switch Box (HanOaki) | HanOaki | 2 SPDT + proximity options, weatherproof mounting | Durable performance in challenging climates |
The following sections review five highly relevant models. Each section includes a concise summary, key features, and how they fit typical pneumatic actuator applications. Prices are not included, and specifications may vary by production batch.
UNOX Limit Switch Box for Pneumatic Actuators
The UNOX model features a robust aluminum housing with an IP67-rated seal, making it suitable for wet or dusty environments. Its position indicator covers a 0-90 range, enabling precise feedback on valve rotation. The operating temperature span of -20°C to 80°C allows use in cold and hot settings, and the unit is designed for Namur-compatible directional valves. A notable advantage is its compact footprint and corrosion-resistant construction, which support long service life in demanding industrial plants. While the product listing highlights manufacturing origins in Türkiye, the core value lies in waterproof integrity and reliable electrical contact under vibration and temperature fluctuation.
APL-210N Limit Switch Box Valve Position Indicator (Generic)
This generic option uses a die-cast aluminum shell with a carbon steel bracket and black polyester-painted exterior for durability. It supports up to 250V AC/DC with silver contacts and copper-core 8-position screw terminals for wiring. An internal diagram is provided for wiring reference, which helps technicians streamline installation. It is positioned as a versatile choice for chemical, metallurgy, light industry, papermaking, power, refrigeration, and other industrial sectors. The broad voltage tolerance and sturdy construction make it well-suited for environments where frequent valve cycling occurs and space is at a premium.
APL-210N Industrial Valve Limit Switch Box (GANGTING)
The GANGTING version emphasizes a solid aluminum die-casting housing with a powder-coated finish for weather resistance. It features a visually secure position indicator that bolts in place to prevent shift, enhancing reliability in outdoor or factory-floor settings. The quick-setting cam mechanism allows spline cam and spring installation to adjust positioning without tools, reducing downtime during calibration. This model suits applications requiring dependable feedback in varying environmental conditions, including dusty or humid environments where quick field adjustments are beneficial.
APL-210N Limit Switch Box Valve Position Indicator (BOQZPZR)
This BOQZPZR unit highlights a straightforward safety-focused design with two SPDT contacts, enabling simple control logic and redundancy. It targets industrial valve applications where reliable fail-safe signaling is required. While concise in its feature set, the model’s durability and easy wiring approach make it a practical choice for systems that prioritize robust mechanical interfaces and consistent actuator feedback without overly complex configurations.

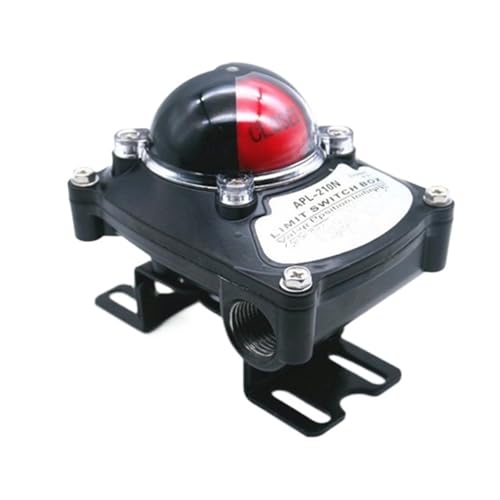

APL210N Mechanical Limit Switch Box (RXKPWRFX)
The RXKPWRFX option markets a compact single-piece compact design suitable for APL210N and similar valves. It emphasizes a practical balance of mechanical reliability and straightforward installation, with a focus on compatibility with common pneumatic actuator configurations. The listing notes its suitability for various APL210N- and APL- series setups, which can simplify procurement for shops standardizing on this family of limit switch boxes. The model presents a pragmatic, no-nonsense approach to valve position feedback in standard industrial environments.
Buying Guide: Key Purchase Considerations
- Environment and enclosure rating: Choose IP ratings and materials suited to your location (indoor, outdoor, wet or dusty). Aluminum housings with weatherproof seals are common and effective.
- Electrical compatibility: Verify voltage ranges (AC/DC), contact types (SPDT/DPDT), and terminal configurations to match your control logic and PLC inputs.
- Position indication range: Ensure the indicator scale (e.g., 0-90) aligns with your actuator geometry and desired feedback granularity.
- Adjustability and ease of wiring: Look for tool-free cam adjustments or accessible wiring diagrams to minimize commissioning time.
- Maintenance and durability: Consider bolt-on indicators, weatherproof mounting, and corrosion resistance for long-term reliability.
- Compatibility with Namur and valve types: Some units are designed for Namur valves or specific actuator brands; confirm compatibility with your system.
- Brand support and availability: Availability of spare parts, documentation, and local support can influence total cost of ownership.
- Size and mounting: Check the footprint and mounting pattern to ensure fitment with existing valve assemblies and frames.
In selecting a valve position indicator limit switch box, balance environmental exposure, electrical needs, and ease of maintenance. The five models reviewed provide a range of enclosure robustness, adjustability, and compatibility to suit most standard pneumatic actuation setups. When in doubt, consult the manufacturer’s datasheet for precise dimensions, connector layouts, and compatibility notes to ensure seamless integration with your control system.
