Best Tilt and Trim Relay Solutions for Marine Outboards
Choosing a reliable tilt and trim relay is essential for smooth engine lifting and stable boat performance. This guide highlights five top relays and related components, with direct links to Amazon for quick comparison. Each product is evaluated for compatibility, durability, and installation practicality, helping boaters and technicians select the right relays for Mercury, Yamaha, Johnson/Evinrude, and other outboards.
| Product | Brand | Type | Key Benefit |
|---|---|---|---|
| Power Trim and Tilt Relay 584416 586224 | Hoypeyfiy | 12V DC SPDT | High compatibility, solid replacement for multiple OEM parts |
| Tilt Trim Relay for Yamaha 63P-81950-00-00 | DKIIGAME | 12V | Direct OEM replacement for Yamaha 2- and 4-stroke models |
| Power Trim Tilt Relay AZ973-1C-12DC4 | Casalytics | 12V SPDT | Durable build, reliable for demanding marine environments |
| NEWHOW 586767 Trim Relay for Evinrude/Johnson | NEWHOW | 12V waterproof | OEM-replacement compatibility with broad engine range |
| Boat Power Tilt Trim Relay 61A-81950-01-00 | Adorish | 12V | Wide Yamaha compatibility across HP range |
Product 1: Power Trim and Tilt Relay 584416 586224 (Pack of 2)
Brand: Hoypeyfiy
Features: Replaces part numbers 582195, 582472, 582473, 584416, 586147, 586224. Specs: 30 Amp/12 Volt. Fitment includes replacement for Johnson, Evinrude, Outboard Marine Corp (OMC) and many others. The kit includes two relays, designed to support power tilt and trim operations on compatible outboards. With a 30A rating, it provides robust control for typical marine tilt/trim circuits and is suitable for mid-range outboard installations. The relays are built to handle frequent cycling and saltwater exposure typical of marine environments. Installation is straightforward for technicians familiar with standard 12V control circuits.
Product 2: Tilt Trim Relay for Yamaha 63P-81950-00-00
Brand: DKIIGAME
Features: Fits Yamaha 50HP, 60HP, 70HP, 75HP, 90HP, 115HP, 150HP, 175HP, 200HP, 225HP, 250HP models. Replaces OEM numbers including 63P-81950-00-00 and TRM6003, among others. Offers 12V operation with mounting holes and stud sizing details (6.6mm OD, M6 x 1.0 studs). This relay is designed for easy installation in Yamaha outboards with electric tilt/trim systems, providing dependable switching for hydraulic or electric trim circuits. It is positioned as a direct OEM alternative to reduce downtime during service or repairs.

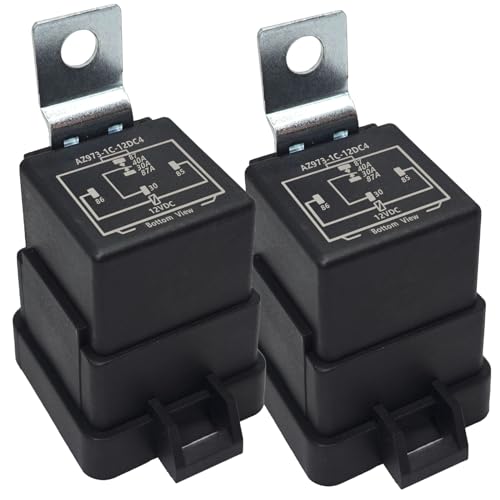

Product 3: Power Trim Tilt Relay AZ973-1C-12DC4
Brand: Casalytics
Features: Replacement parts include AZ973-1C-12DC4 and several OEM identifiers such as G8JN-1C6T-F-R-DC12, 882751A1, and VF4-35F11-Z07. The relay is a 12V DC, 40 Amp SPDT design built for marine reliability. The product emphasizes a robust build intended for demanding environments, with a focus on consistent power control for tilt/trim functions. Suitable for Mercury outboards and other compatible models, this unit is positioned as a durable aftermarket option for boaters seeking restoration of lift/trim performance without OEM constraints.
Product 4: NEWHOW 586767 Trim Relay for Evinrude/Johnson Outboard Motors
Brand: NEWHOW
Features: Exact OEM replacement part replacing 0586767. Designed for Evinrude E-TEC and select Johnson models from 2004 onward, covering 40HP through 300HP engine ranges. Features a marine-grade waterproof 12V housing to withstand salt, moisture, and harsh conditions. Built to support the engine’s power tilt system with reliable waterproofing to protect critical electrical connections. The relay aims to minimize corrosion-related failures common in marine electrical components.
Product 5: Boat Power Tilt Trim Relay 61A-81950-01-00 (Yamaha Compatibility)
Brand: Adorish
Features: Replaces OEM numbers 61A-81950-00-00 and 61A-81950-01-00, Sierra 18-1523. Tilt/Trim relay replacement for 1991-2012 Yamaha 2- and 4-stroke engines across a broad HP range. Compatible with various Yamaha models including F-150, F-225, and F-250 series. The unit emphasizes straightforward installation and broad compatibility, ensuring that trim and tilt functions operate reliably on applicable engines. It is positioned as a versatile aftermarket option for Yamaha outboards requiring a robust, easy-to-install relay solution.
Buying Guide: Key Purchase Considerations
When selecting a tilt and trim relay, consider these factors to ensure compatibility, reliability, and long-term performance:
- Voltage and current rating: Most marine relays use 12V DC and vary in amperage. Ensure the chosen relay matches or exceeds the OEM specification for your engine’s tilt/trim system.
- SPDT configuration: Commonly used for controlling the signal and power paths in tilt/trim circuits; confirm the specific configuration your system requires.
- Compatibility: Check OEM part numbers and model compatibility (engine brand, horsepower, and year range). Some relays advertise broad compatibility, while others are targeted to Yamaha, Evinrude/Johnson, Mercury, or Yamaha-specific models.
- Waterproofing and marine-grade construction: Saltwater exposure necessitates sealed housings and corrosion-resistant terminals to maximize lifespan.
- Installation and fitment: Pay attention to mounting hole dimensions, stud types, and wiring harness compatibility to ensure a straightforward swap or replacement.
- Warranty and return policy: A robust warranty provides assurance against early failures and helps cover installation troubleshooting.
- Aftermarket vs OEM: OEM-equivalent relays can offer precise matching, but high-quality aftermarket options may reduce downtime and cost while delivering reliable performance.
- Warranty coverage for pack options: Packs (e.g., two relays) can be advantageous for boats with multiple tilt/trim circuits or future replacements.
Across the options presented, select relays that clearly list Yamaha, Johnson/Evinrude, Mercury, or other OEM alignments in their features. For critical systems, prioritize marine-grade waterproof construction and a proven current capacity aligned with your engine’s tilt/trim demands. Where possible, verify compatibility with your specific model year and horsepower rating, and consult service manuals or a marine technician if in doubt.
