Best Three Phase Solid State Relay Solutions for Industrial Power Control
Answering your search for reliable three‑phase solid state relays (SSRs) for industrial automation, these picks emphasize high current capability, solid thermal management, and DC-to-AC or AC-to-AC control suitable for CNC machines, heaters, and motors. The top options cater to heavy workloads, compact installations, and robust heat sinking. Best for heavy-duty manufacturing teams, machine builders, and maintenance engineers seeking fast switching, low-noise operation, and long service life.
| Product | Best For | Output Range |
|---|---|---|
| Baomain JGX-48100A | High-current three-phase loads | 480 VAC, up to 100 A |
| LCLCTC 40DA | Medium to heavy loads with radiator cooling | 24-480 VAC, 40 A |
| Baomain JGX-3340A | Three-phase CNC and automation | 24-480 VAC, 40 A |
| LCLCTC SSR-25AA | Three-phase systems with space constraints | 24-480 VAC, 25 A |
| OMXWOQMP SSR Zero-Crossing | Household to light industrial loads | AC-AC, up to 100 A |
Baomain JGX-48100A 3 Phase SSR Review
This DC-to-AC SSR handles three-phase loads up to 480 VAC and 100 A, with a 4-32 VDC input. The device includes a compact 6 x 5 mm mounting footprint, making it suitable for mid-to-large industrial panels. Best for integrators needing a high-current, straightforward DC control solution for CNCs or large heaters. A note: ensure proper radiative cooling when operating near peak current to prevent thermal throttling.
LCLCTC 40DA 3 Phase SSR
This DC-to-AC SSR provides 40 A capacity with a wide 24-480 VAC output, suitable for three-phase machines. It uses a universal 4-32 VDC input and benefits from a large body for heat dissipation. Best for heavier duty automation where consistent switching is crucial and where a radiator is used to maintain temperature. If current exceeds 10 A, consider additional cooling to avoid heat buildup.
Baomain JGX-3340A 3 Phase SSR
This 40 A DC-to-AC SSR provides three-phase control with an integrated high-efficiency heat sink. It is designed for CNC machinery and industrial automation that require rapid, spark-free switching up to 480 VAC. Best for systems demanding reliable thermal management and a robust aluminum heatsink for continuous operation. Choose this if you need a solid heat-dissipation solution and straightforward installation.

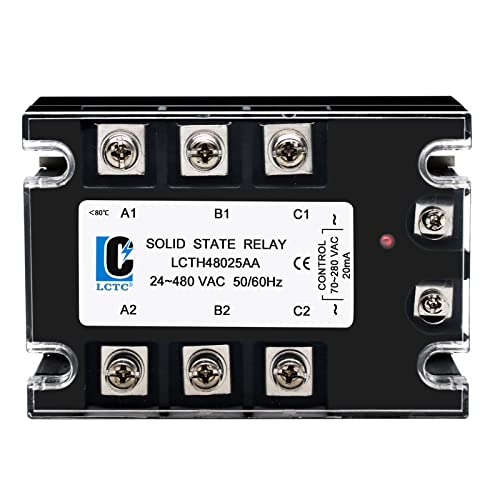

LCLCTC SSR-25AA AC to AC
This AC-to-AC SSR covers 70-280 VAC input with 24-480 VAC output, rated at 25 A. It is ideal for compact three-phase setups where space is limited but reliable, high-speed switching is required. Best for smaller three-phase projects or retrofits where you need a lighter-duty, but still solid, SSR solution. A caution: radiators are recommended for sustained high-current operation to maintain performance.
LCLCTC 100A DC to AC SSR
This 100 A DC-to-AC SSR is designed for heavy-duty three-phase loads with high current requirements. It uses a 3-32 VDC input to drive 24-480 VAC outputs and requires careful sizing to match the motor or heater load. Best for large motors, furnaces, or heating elements in automation lines. Caution: always verify current setting aligns with the associated equipment to avoid overload.
Baomain JGX-3340A 3 Phase SSR (Alternative View)
This listing highlights the same 3-phase, 40 A capacity with a copper heat sink, making it a strong candidate for CNC and industrial automation. Best for users prioritizing a robust heatsink and compact form factor in a three-phase control relay. Use this when a high-current, low-noise alternative to mechanical relays is desired.
OMXWOQMP SSR Zero-Crossing
This zero-crossing three-phase SSR supports a broad range of three-phase loads with 3-32 VDC control and heatsink cooling. It offers options up to 100 A for AC-AC control at 380 V. Best for applications where smooth turn-on with minimal electrical noise is essential, such as precise motors or heating elements. Limitation: verify compatibility with your load type and ensure appropriate heat sinking for extended operation.
Buying Guide
Key considerations when choosing a three-phase SSR: load type (DC-to-AC vs AC-to-AC), current rating, voltage range, cooling needs, and physical footprint. Decide if you need an integrated heatsink, such as the Baomain JGX series, or a more compact model like the LCLCTC 25AA. Consider thermal management: high current often requires radiators or active cooling to prevent thermal rollover. For CNC and heavy automation, prioritize fast switching speed and minimal spark/noise compared to mechanical relays. Ensure the input control signal (3-32 VDC or 70-280 VAC) matches your control system.
How to compare: look at current ratings, voltage ranges, and whether the SSR supports zero-crossing or random-crossing operation. Zero-crossing devices reduce electrical noise and are beneficial for resistive loads, while random-crossing facilitates faster switching for inductive or motor loads. For three-phase motors, confirm the SSR supports true three-phase switching and is compatible with your motor’s starting current and duty cycle.
Mounting and heat management: many units include a pre-attached heatsink, while others require external cooling. A larger heatsink improves reliability under continuous load. Placement matters: mount away from heat sources and ensure adequate airflow. Wiring should be performed by qualified personnel following local electrical codes.
FAQ
- What is a three-phase SSR and how does it differ from a single-phase SSR?
Answer: A three-phase SSR switches three hot lines in a three-phase system, enabling synchronized control of motors or three-phase loads, while single-phase SSRs control one hot line. - Do these SSRs require cooling for high current?
Answer: Yes. High current ratings like 40–100 A typically need proper heatsinking or radiator cooling to prevent overheating. - Can I use AC-to-AC SSRs for DC loads?
Answer: No. AC-to-AC SSRs are designed for AC loads only. Use DC-to-AC SSRs for DC control signals driving AC outputs. - What control voltages do these SSRs accept?
Answer: Most listed models accept 3-32 VDC inputs, while some AC-to-AC variants use 70-280 VAC input. Match the control signal to your controller. - Is zero-crossing always better for SSRs?
Answer: Zero-crossing reduces electrical noise and arcing for resistive loads, but random-crossing suits inductive or motor loads with faster switching requirements. - What should I consider when selecting a current rating?
Answer: Compare your load’s steady-state current and inrush current. Choose an SSR with headroom above the peak current to avoid overheating or premature failure.
