Best Solenoid Valves for Pneumatic Cylinders: Top Picks
When selecting a solenoid valve for a pneumatic cylinder, durability, voltage compatibility, and precise control are crucial. The following five options represent reliable choices across common voltages and configurations, helping engineers and technicians optimize automation setups. Each product below is suited for 1/4″ NPT systems and offers solid pilot-operated or direct-acting designs for smooth, reliable operation in industrial environments.
| Product | Brand | Voltage / Type | Key Benefit |
|---|---|---|---|
| 4V210-08 DC12V Solenoid Valve | TAILONZ PNEUMATIC | DC12V, 2 Position 5 Way | Low-voltage operation with open-on-off behavior for compact automation |
| 4V210-08 AC110V Solenoid Valve | TAILONZ PNEUMATIC | AC110V, 2 Position 5 Way | Junction-box configuration for easy panel mounting |
| 2V025-08 DC12V Solenoid Valve | TAILONZ PNEUMATIC | DC12V, 2 Position 2 Way | Smaller footprint with straightforward air flow control |
| 4V210-08 Electric Solenoid Valve (Baomain) | Baomain | 12V DC, 2 Position 5-Way | Aluminum body with standardized 1/4″ ports for easy manifold integration |
| 4V210-08 DC24V Solenoid Valve | TAILONZ PNEUMATIC | DC24V, 2 Position 5 Way | Higher voltage option for longer runs and robust actuation |
Note: All selected products use 1/4″ NPT ports, suitable for common pneumatic cylinder connections. They provide either pilot-operated or direct-acting designs, with a focus on reliable switching, compact size, and straightforward integration into standard pneumatic circuits.
TAILONZ PNEUMATIC 4V210-08 DC12V Solenoid Valve
The 4V210-08 is a 2-position, 5-way solenoid valve designed for 1/4″ NPT connections. This DC12V model uses a pilot-operated mechanism to control airflow with a simple, reliable actuation cycle. When the coil is de-energized, the valve state reverses or opens, depending on the coil configuration, enabling predictable control of pneumatic cylinders. The valve operates within a standard temperature range and supports a broad working pressure window, suitable for typical factory automation lines.
Key features include: 2-position, 5-way configuration; outlet wire wiring; DC12V operation; compatible with standard pneumatic components; robust pilot-operated design for dependable cylinder control.
TAILONZ PNEUMATIC 4V210-08 DC12V Solenoid Valve (Alternative Variant)
This variant presents the same core 4V210-08 family with a focus on simplified wiring and integration into 1/4″ NPT pneumatic systems. The DC12V coil provides dependable actuation for dual-acting cylinders, and the valve’s pilot-operated design helps ensure quick response times with consistent switching. For installations requiring compact control blocks or module-style manifolds, this model offers straightforward compatibility with common solenoid valve kits.
Essential details: 2-position, 5-way; DC12V; pilot-operated; 1/4″ PT ports; simple installation into automated lines.
TAILONZ PNEUMATIC 2V025-08 DC12V Solenoid Valve
The 2V025-08 is a compact solenoid valve designed for 1/4″ NPT ports with a DC12V coil. It features a 2-position, 2-way configuration suitable for basic on/off control of single-acting or double-acting cylinders, depending on the circuit design. The valve supports a temperature range and pressure window compatible with standard shop air lines, enabling reliable actuation in automation tasks where space is at a premium. Its wiring is typically straightforward, reducing installation time in panel-mounted systems.
Highlights include: 2V025-08 model; DC12V; 1/4″ NPT; 2-way control; compact footprint for tight installations.
Baomain 4V210-08 Electric Solenoid Valve
The Baomain 4V210-08 is a dedicated 4V210-08 solenoid valve with a 1/4″ PT port design. This aluminum-bodied valve offers a reliable, modular option for pneumatic systems, featuring a 2-position, 5-way layout that supports double-acting cylinders and complex logic in automation sequences. The inclusion of a lampshade junction box simplifies wiring and protection in industrial environments, helping operators maintain clean, safe control panels. The valve is suitable for integration into manifolds and compact assemblies where space and compatibility matter.
Key aspects: 12V DC operation; 2-position, 5-way; 1/4″ PT ports; aluminum body; convenient junction box for wiring and protection.

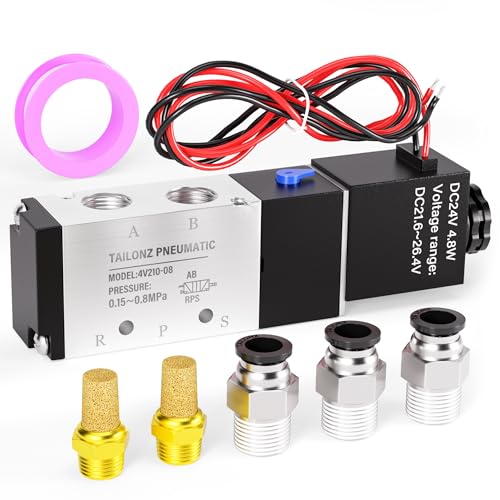

TAILONZ PNEUMATIC 4V210-08 DC24V Solenoid Valve
The 4V210-08 DC24V model expands the same 2-position, 5-way design into a higher voltage class for longer runs or systems requiring stronger actuation. This coil configuration improves response times and holds valve positions reliably under varying load conditions. The valve maintains a compact 1/4″ NPT port footprint suitable for manifolds and compact control blocks. Its operation remains consistent with the DC12V variants, delivering predictable on/off control for pneumatic cylinders in automation lines that demand higher voltage options.
Important details: 2-position, 5-way; DC24V; 1/4″ ports; pilot-operated design; robust for panel-mounted installations.
Buying Guide: Key Purchase Considerations
Valve Type and Configuration
Most pneumatic applications rely on 2-position, 5-way solenoid valves for double-acting cylinders. This configuration supports independent control of the cylinder’s extend and retract motions. For simple on/off control of a single actuator, 2-position, 2-way variants can suffice, but 5-way valves offer more flexibility in complex circuits and exhaust options.
Voltage and Power Requirements
Common options include DC12V, DC24V, and AC110V. DC variants are typically used in compact electronics and mobile setups, while higher voltages may be preferred for longer cable runs or heavy-duty installations. Ensure the coil voltage matches the control system to avoid coil burnout or insufficient actuation.
Port Size and Mounting
Standard 1/4″ NPT ports are widely compatible with many pneumatic components, including cylinders, manifolds, and air lines. Check port threads and port arrangement (inlet, outlet, exhaust) to ensure compatibility with existing plumbing and to simplify manifold design.
Construction and Durability
Aluminum bodies are common for lightweight, corrosion-resistant valves, while reinforced plastics can offer cost savings. Look for corrosion resistance, protective enclosures or junction boxes, and weatherproofing if the valves will operate in challenging environments.
Response Time and Switching Performance
Solenoid valves with pilot-operated designs generally provide fast, reliable transitions. For high-speed automation or high-cycle applications, verify response times and coil duty ratings to minimize heat buildup and service intervals.
Wiring, Control, and Maintenance
Junction boxes or integrated wiring solutions simplify installation in control panels. Consider ease of maintenance, availability of replacement coils, and compatibility with existing control logic (e.g., PLCs, relays). Standardized 1/4″ ports ease future upgrades or reconfigurations.
Operational Range and Safety
Ensure operating temperature and pressure ranges align with system specifications. Safety features, such as manual overrides or lockout mechanisms, can be important in maintenance scenarios or high-stakes industrial environments.
