Best Reversing Switches for Single Phase Motors: A Complete Buyer’s Guide
Finding the right reversing switch for a single-phase motor depends on voltage, horsepower, and duty needs. The top picks below are grouped by suitability: compact drum switches for lightweight applications, rugged industrial options for continuous use, and multi-voltage units that support broader power systems. Whether you build a small workshop setup or outfit an industrial machine, these reversers help you change motor direction safely and reliably.
Quick product overview: the following table highlights the five featured reversing switches and their target applications. Use this as a starting point to compare form factors, voltage compatibility, and control style.
| Product | Best For | Voltage Range | Notes |
|---|---|---|---|
| RS-1A-MP Relay & Controls | Small to mid-size single-phase motors | 115V / 230V | Spring-return drum switch; compact |
| Relay and Control Corp 1.5-2 hp Drum Switch | Standard single-phase motors | 115V / 230V | Spring-return; gray quick-connects |
| RS-5 Maintained Drum Switch | Higher horsepower single-phase motors | 115V / 230V | Maintained position |
| Aramox Industrial Forward/Reverse Switch | Garage and workshop machinery | 220V / 380V | Industrial-grade; dual voltage |
| Adfaga QS15 380V Reversing Switch | Heavy machinery and power tools | 380V 15A | Dual-direction for single/three-phase |
RS-1A-MP Relay & Controls — 1.5 hp to 2 hp Drum Reversing Switch
Best for small to mid-size single-phase motors requiring a spring-return action. This unit supports 115V for 1.5 hp and 230V for 2 hp configurations. Its compact dimensions (W 2.25″ H 4.5″ D 4″) make it suitable for tight control panels. Choice rationale: ideal where a simple forward-reverse function is needed without a maintained position, and where space is at a premium.
Who this is for: hobbyists or small shop machines needing a straightforward forward-reverse control. Limitation: spring-return means the switch naturally returns to its default position when released, which may not be ideal for machinery requiring a locked or maintained setting during operation.
Relay and Control Corp 1.5-2 hp Drum Switch — Spring Returned
This 1.5 hp to 2 hp drum switch is designed for single-phase operations, with a spring-return mechanism and quick-connect terminals. It’s a robust option when you need reliable forward-reverse control in a compact footprint. Why chosen: predictable mechanical action and ease of wiring for standard motor controllers.
Who this is for: maintenance and retrofit projects in workshops with space constraints. Limitation: similar to other spring-return models, it does not lock the position for continuous reverse or forward operation without manual hold.
RS-5 Maintained Reversing Drum Switch — 2 hp to 7.5 hp Range
This model provides a maintained (latching) forward or reverse position, suitable for higher horsepower single-phase motors. It lists 2 hp 115V and 3 hp 230V, with larger overall dimensions reflecting its increased capacity. Best for: scenarios where a fixed direction is required during motor operation. Limitation: larger footprint may demand more panel space.
Who this is for: industrial or garage setups needing a held reverse/forward state. Better for: applications where you don’t want the switch to return to the center automatically.

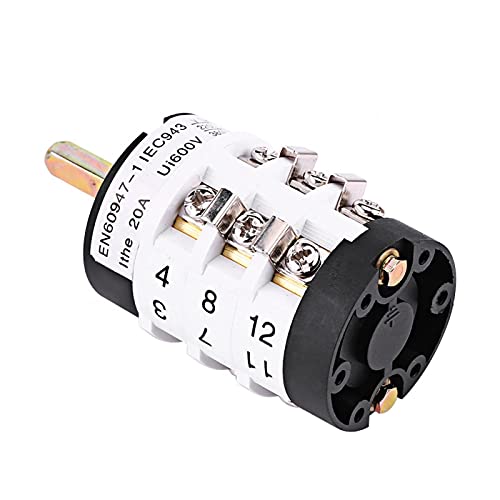

Aramox Industrial Forward/Reverse Switch — Dual Voltage
Designed for industrial machines, this forward/reverse switch supports 220V single-phase and 380V three-phase systems. Its heavy-duty construction and reliable terminals make it suitable for continuous operation in garage or workshop environments. Choose this if you need flexibility across voltage standards. Limitation: dual-voltage capability may require careful wiring to match the specific motor and supply configuration.
Who this is for: professionals integrating reversible motors in variable-voltage equipment. Better for: panels that serve multiple machines or regions with different power supplies.
Adfaga QS15 380V Reversing Drum Switch
High-capacity 380V, 15A reversing switch designed for single-phase and three-phase motors in industrial machinery. Its dual-direction operation makes it versatile for tools requiring bidirectional rotation. Reason to pick: robust design for demanding environments with higher voltage. Caution: ensure compatibility with your motor’s voltage and insulation rating to prevent overloading.
Who this is for: large equipment or automation systems needing reliable bidirectional control at higher voltages. Better for: machines where a compact 115V/230V option is insufficient. Limitation: 380V operation requires appropriate safety measures and wiring standards.

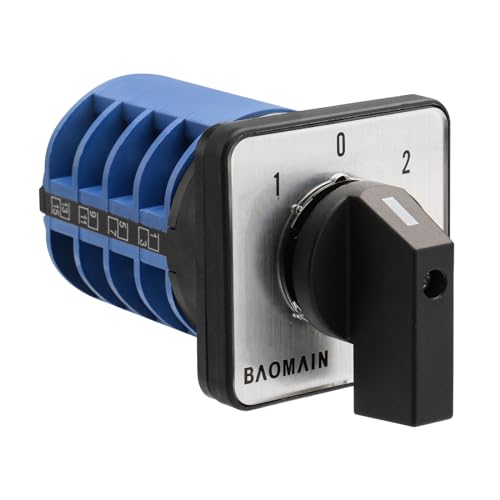

Baomain 40A Rotary Cam Changeover Switch
Industrial-grade rotary cam switch with a 40A current rating and 660V insulation voltage. It features four-phase, 16-terminals design and silver alloy contacts for high conductivity and low arcing. Best for complex motor control and power switching needs in heavy equipment. Caution: installation requires precise wiring and secure enclosure to maintain safety in high-voltage applications.
Who this is for: engineers and technicians designing multi-phase motor controls or power distribution panels. Better for: applications needing robust, high-current switching with long service life. Limitation: may be more complex to wire than simpler drum switches.
Buying Guide: How To Choose The Right Reversing Switch For Your Motor
- Voltage and horsepower compatibility: Match the switch rating to your motor’s voltage (115V, 230V, or 380V) and horsepower. Using a higher-rated switch can be safer for future upgrades.
- Direction control type: Choose between spring-return (centered return) and maintained (latching) positions based on whether you need the switch to recenter automatically or hold a chosen direction.
- Number of phases: For single-phase motors, ensure the unit supports single-phase operation; some models advertise dual voltage or multi-phase compatibility that may be unnecessary for simple reversals.
- Mounting and enclosure: Consider the panel space and environmental conditions. Industrial options often feature rugged housings and dust/water resistance (IP ratings) suitable for garages or workshops.
- Wiring straightforwardness: Units with clearly labeled terminals and quick-connects reduce installation time and wiring errors, especially in retrofits.
- Maintenance vs. accessibility: Maintained switches are ideal for continuous operation; spring-return models are better when you want a momentary action or to require a reset after each actuation.
- Safety considerations: Verify insulation ratings, voltage isolation, and proper enclosure to prevent accidental contact with live terminals during installation and operation.
Frequently Asked Questions
- What is a reversing switch for a single-phase motor? A reversing switch changes the direction of current flow to the motor windings, turning the motor clockwise or counterclockwise.
- Do I need a maintained or spring-return switch? Choose maintained when you need the direction held in place during operation; choose spring-return if you want the switch to return to center when released or to initiate a quick, momentary direction change.
- Can these switches handle high horsepower motors? Some models support up to several horsepower, but check the exact voltage and current ratings to ensure compatibility with your motor.
- Is dual-voltage a necessary feature? Dual-voltage switches are helpful if you meter across different power supplies or plan to run the same motor in different regions; ensure the wiring is correct for each configuration.
- What safety steps should I take during installation? Disconnect power, follow the device’s wiring diagram, use proper enclosures, and use insulated tools to prevent shocks or short circuits.
- Are these suitable for industrial machines? Yes, several models are designed with industrial-grade housings and robust terminals for continuous use in workshop and factory environments.
