Best Rack Mount 110 Block Solutions for Modern Data and Voice Networks
Finding the right rack mount 110 block solutions helps streamline voice, data, and mixed-use installations in modern network rooms. This guide reviews five targeted products that pair 110-term termination with rack-friendly design, enabling clean cross-connect layouts, future-proof cabling, and efficient maintenance. Each option emphasizes standard 110 termination compatibility, reliable construction, and rack-mount readiness to fit standard 19-inch racks.
| Product | Type | Key Benefit |
|---|---|---|
| ICC Rack Mount 110 Wiring Block, 100-Pair | 110 Panel | Dense, dual 50-pair blocks for high-density terminations |
| ICC Rack Mount 110 Wiring Block, 200-Pair | 110 Panel | Four 50-pair blocks for large-scale terminations |
| ICC CAT5e Patch Panel | Patch Panel | Rear 110 IDC termination with future-proof Cat5e performance |
| ICC CAT6A Patch Panel | Patch Panel | Rear 110 IDC termination for 10G networks and PoE support |
| Leviton 41DBR-1F5 110 Rack Mount Kit | 110 Wiring Base Kit | Comprehensive 100-port kit with C5 connectors |

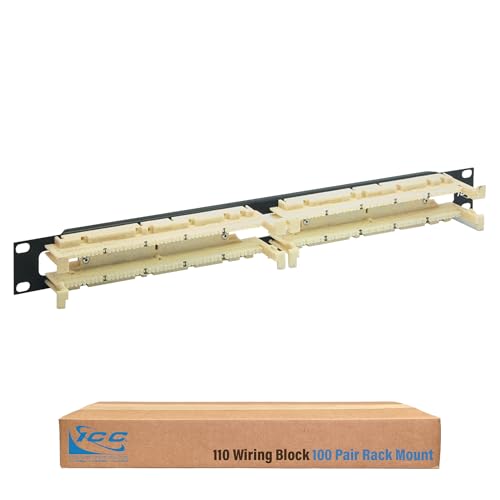

ICC 100-Pair Rack Mount 110 Block
The ICC 100-Pair Rack Mount 110 Panel is designed for voice and data terminations in network racks and cabinets. It features dual factory-mounted 50-pair 110 blocks on a reinforced steel panel, delivering high-density cross-connect capability. The design supports standard 110 IDC terminations and remains compatible with additional ICC 4-pair and 5-pair blocks for flexible, scalable cabling layouts. This panel suits mixed-use environments, from small offices to larger data rooms, where clean routing and reliable terminations matter most.
ICC 200-Pair Rack Mount 110 Block
This 200-Pair Rack Mount 110 Panel expands cross-connect capacity with four 50-pair blocks on a single reinforced frame. It is designed for dense voice and data terminations in rack environments and supports standard 110 IDC terminations. The panel remains compatible with ICC’s range of 4-pair and 5-pair connecting blocks to accommodate evolving network designs, particularly in environments that require greater termination density without sacrificing organization or accessibility.
ICC CAT5e Patch Panel
The ICC CAT5e Patch Panel is a 1U, 19-inch rack-mount panel built from 16-gauge steel. It uses rear 110 IDC terminations to reduce install time and supports PoE up to 90W. The design includes color-coded wiring diagrams (TIA-568A and B) and numbered ports for quick identification. It’s designed to be future-proof for Gigabit Ethernet, ensuring compatibility with a wide range of network switches and cabling, while maintaining a clean and organized patch layout.
ICC CAT6A Patch Panel
The ICC CAT6A Patch Panel is a 48-port, 2U 19-inch panel designed for 10 Gigabit Ethernet networks. It uses rear 110 IDC terminations and supports PoE++ up to 100W, making it suitable for high-bandwidth applications and power-hungry devices. The panel is built from 16-gauge steel for durability and aligns with standard rack dimensions. It’s backward compatible with Cat6 and Cat5e cabling and provides clear port labeling for efficient management of large network landscapes.
Leviton 41DBR-1F5 110 Rack Mount Kit
The Leviton 41DBR-1F5 110 Rack Mount Kit provides a complete 100-port 110 wiring base, including 20 C5 connecting blocks and port IDs. It is positioned as a commercial-grade solution within Leviton’s cable management system, designed to streamline 110-type terminations in rack environments. The kit’s construction emphasizes orderly cable organization and reliable, consistent terminations suitable for professional installations in offices, data centers, and larger network rooms.
Buying Guide
Key considerations help choose the right rack mount 110 block and related components for a given project.
- Termination density: Assess required port counts. For smaller setups, 100- or 200-pair blocks cover basic needs, while larger deployments benefit from multi-block panels to minimize splicing and mis-termination risk.
- Rack compatibility: Confirm the panel’s height (1U or 2U) and width (standard 19-inch racks) to ensure proper fit with existing enclosures and mounting rails.
- Future expansion: Choose panels supporting standard 110 IDC terminations and compatibility with ICC, Leviton, or similar 4-pair/5-pair blocks to accommodate evolving networks.
- Patch panel capabilities: For data networks, CAT5e and CAT6A options offer different performance envelopes. Consider PoE requirements, data rates, and backward compatibility with existing cabling.
- Construction and durability: Look for steel framing (often 16 GA CRS) and reinforced panels to withstand rack environments and repeated terminations. Finishes and labeling ease installation and ongoing maintenance.
- Power and protection: When integrating with PDU options, ensure proper wiring, circuit protection, and surge suppression are aligned with equipment standards and local electrical codes.
- Compliance and security: Verify UL listings, TAA, and Section 889 compliance if applicable to procurement requirements or sensitive environments.
In practice, selecting a combination of 110 terminal blocks alongside compatible CAT5e or CAT6A patch panels provides a balanced approach to performance, reliability, and future readiness. For dense voice and data deployments, pairing 100- or 200-pair ICC rack blocks with a high-capacity CAT6A or CAT5e patch panel can streamline cross-connects while maintaining an organized rack footprint. When power delivery is a concern, integrating a compliant PDU with a clear labeling strategy supports efficient operations without compromising cabling clarity.
