Best Pulse Generator Test Equipment for Precise Signal Testing
Direct answer: For reliable pulse generation and waveform testing, consider versatile, dual‑channel DDS and programmable waveform generators that offer stable outputs, wide frequency ranges, and flexible storage. This article highlights five suitable options, comparing stability, output options, and ease of use. The top picks are best for electronics labs, hobbyist projects, engineering students, and production test benches seeking repeatable, configurable signals. Each product section explains who it’s best for and why it was selected, plus practical cautions to consider when purchasing pulse generator test equipment.
Summary table of chosen products:
| Product | Brand | Best For | Key Benefit |
|---|---|---|---|
| A860-0202-T001 Pulse Generator | Generic | Starter tests, basic waveform needs | Simple, functional input for basic pulses |
| Professional Upgraded DDS Signal Generator Counter (Seesii) | Seesii | Advanced DDS, complex waveforms | High precision, large waveform library |
| Koolertron Upgraded 15MHz DDS Signal Generator | Koolertron | Budget-friendly dual-channel testing | Good for entry to mid-level DDS work |
| PWM Signal Generator Module (LiebeWH) | LiebeWH | Motor control and PWM experiments | PWM-focused with duty-cycle control |
| Rigol DG822 Pro Waveform Generator | Rigol | Lab-grade precision testing | Two channels, 25 MHz, 16-bit resolution |

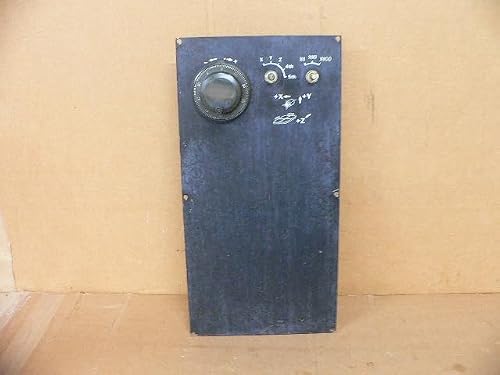

A860-0202-T001 Pulse Generator
The A860-0202-T001 Pulse Generator is a basic, single-device option suitable for entry-level pulse testing. Best for individuals who need straightforward pulse output without extensive configuration. Caution: limited data provided on performance specs; rely on the unit’s operating condition as stated by the seller.
Professional Upgraded DDS Signal Generator Counter
Best for advanced users needing dual‑channel DDS waveform generation with high precision. It supports up to 60 MHz sine outputs and 200 MSa/s sampling, plus 99 user‑defined states for quick recall. Choose this if you require stability, storage, and a broader waveform set. Limitation: complex software package may have a steeper learning curve for new users.
Koolertron Upgraded 15MHz DDS Signal Generator
Best for budget‑minded labs needing dual‑channel DDS capabilities with a solid set of waveforms. It supports sine, square, triangle, sawtooth, pulse, and user‑defined waves, with independent channel parameter settings. Caution: frequency range is limited to 15 MHz, which may not cover higher‑frequency testing needs.
PWM Signal Generator Module (LiebeWH)
This module emphasizes PWM outputs for electronics projects and motor control tests. Best for people who need adjustable frequency and duty cycle for MCU control and PWM dimming. Caution: primarily a PWM module; other waveform types may not be as flexible as full function generators.
Rigol DG822 Pro Waveform Generator
Best for precision lab work requiring dual‑channel independence and wide waveform support. It provides a 25 MHz bandwidth, 16‑bit vertical resolution, and 200 MSa/s sampling rate. This makes it a strong choice for analog design, embedded development, and educational demonstrations. Limitation: higher price point and more features than basic hobbyist models may be unnecessary for simple tasks.
Buying Guide
What should you consider when choosing pulse generator test equipment?
- Frequency range and resolution: Determine the highest frequency you need and whether you require high‑resolution outputs for precise testing.
- Number of channels: Dual‑channel generators enable independent testing of two signals simultaneously, which is useful for circuit testing and comparison.
- Waveform variety: Look for sine, square, pulse, triangle, sawtooth, noise, and user‑defined waveforms if your projects require diverse signal shapes.
- Storage and recall: If you work with repetitive test setups, a device that stores multiple waveform configurations can save time and reduce setup errors.
- Ease of use vs. flexibility: Simpler units are quick to deploy, while more capable models offer extensive software, calibration, and control options. Choose based on your comfort level and project complexity.
- Output stability and accuracy: Stable outputs with low distortion help ensure reliable measurements and repeatable experiments.
- Software and connectivity: Consider whether mobile apps or PC software are important for control, data export, and waveform import/export.
FAQ
- What is a pulse generator used for in electronics testing?
It creates controlled electrical pulses or waveforms to simulate signals in circuits, verify timing, and test responses of devices such as amplifiers, ADCs, and microcontrollers.
- Why choose a dual‑channel generator?
Dual channels allow simultaneous or comparative testing, enabling more efficient debugging and testing of differential or multi‑signal circuits.
- What is DDS in signal generators?
DDS stands for Direct Digital Synthesis. It uses a digital oscillator to generate precise, programmable waveforms with fine frequency control and rapid switching.
- How important is waveform fidelity?
High fidelity reduces measurement errors and ensures that the observed response is due to the device under test, not the generator itself.
- Do I need advanced software for basic testing?
For basic experiments, a straightforward interface is sufficient. For complex waveforms or automated testing, consider models with robust software features and waveform libraries.
- What should I avoid when selecting equipment?
Avoid models with frequency ranges far below your needs, limited waveform options, or insufficient output stability for your intended tasks.
