Best PSC Condenser Fan Motor Options for HVAC Upgrades
Choosing the right PSC condenser fan motor is essential for restoring proper airflow and heat exchange in outdoor AC units. This guide highlights five reliable options compatible with common Trane, American Standard, Carrier, Bryant, and similar systems. Each product below includes key specifications, compatibility notes, and practical installation considerations to help you select a suitable replacement motor.
Summary of selected products
| Product | Brand | Horsepower | RPM | Voltage | Notes |
|---|---|---|---|---|---|
| Condenser Fan Motor 1/8 HP 825 RPM | AUTOTOP | 1/8 HP | 825 | 208-230V | TEAO, includes 5 MFD capacitor; fits OE parts MOT18688, MOT12215, MOT12004 |
| Packard 45210 Condenser Fan Motor | Packard | 1/5 HP | 825 | 208-230V | Direct replacement for HC37GE210 series |
| 45210 Condenser Fan Motor (Carrier/Bryant) 1/5 HP | PROOVEELLY | 1/5 HP | 825 | 208-230V | Includes 5μF/370V capacitor; fits a wide range of Carrier Bryant Payne models |
| MARS 10458 1/3-1/6 hp Outdoor Motor | MARS – Motors & Armatures | 1/3-1/6 HP | 1075 | 208-230V | PSC design; drip-proof enclosure; 48 frame |
| MOT18688 Condenser Fan Motor (Upgraded) 1/8 HP | Gledewen | 1/8 HP | 825 | 208-230V | Replaces MOT12215/MOT12004; includes capacitor; OE-compatible |

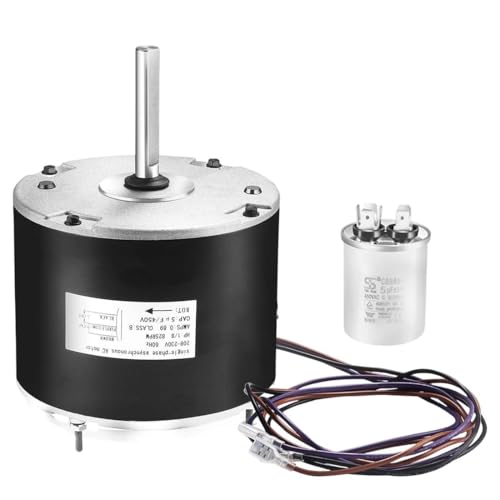

Condenser Fan Motor 1/8 HP 825 RPM — AUTOTOP
The AUTOTOP PSC condenser fan motor is designed for outdoor Trane and American Standard units requiring a 1/8 HP, 825 RPM, 208-230V motor. It includes a 5 MFD/370V capacitor and features a TEAO housing with precision-wound copper coils to maintain balance. The motor uses a 1/2-inch shaft with a flat for blade installation and is built to address abnormal vibration and winding issues common in factory outdoor units. This product aims to restore original airflow and heat exchange performance for prolonged duty cycles.
Key considerations:
– Compatibility: Designed for OE part numbers MOT18688, MOT12215, MOT12004, MOT10514.
– Installation: Typical replacement time around 45 minutes; ensure blade alignment and shaft fitment.
– Durability: TEAO housing and robust copper windings for consistent operation in outdoor environments.
Packard 45210 Condenser Fan Motor Replacement
The Packard 45210 condenser fan motor serves as a direct replacement for Carrier HC37GE210 series and similar units. It provides a reliable, plug-and-play option to restore fan performance and cooling in outdoor condensers. The motor’s 825 RPM operation aligns with common condenser fan requirements, helping to maintain refrigerant temperature balance and system efficiency.
Key considerations:
– Compatibility: Specifically listed as a direct replacement for Carrier HC37GE210/HC37GE210A models.
– Installation: Straightforward swap in standard 48-frame outdoor housings.
– Durability: Built for outdoor environments with appropriate weather resistance.
45210 Condenser Fan Motor for Carrier/Bryant/Payne
This 1/5 HP, 825 RPM motor is compatible with Carrier Bryant Payne HC37GE210 and related part numbers. It includes a 5 μF/370V capacitor and features a single-speed operation with a CWLE shaft end. The body measures within the TEAO-friendly 48-frame family, designed to deliver steady airflow and effective heat rejection in outdoor units.
Key considerations:
– Compatibility: Aligns with Carrier/Bryant Payne and listed 51-23055-12 family parts.
– Functionality: Includes automatic overload protection and a capacitor for immediate operation.
– Installation: Suitable for single-speed outdoor condensers that use a 48-frame motor.
MARS 10458 1/3-1/6 HP Outdoor Condenser Fan Motor
The MARS 10458 motor is a versatile PSC outdoor condenser fan motor rated for 1/3 to 1/6 HP. It is designed for 208-230V operation at 1075 RPM, with a NEMA 48 frame and drip-proof enclosure suitable for outdoor installations. This motor targets units requiring a balance between airflow and energy efficiency, providing reliable operation across a range of residential and light commercial condensers.
Key considerations:
– Compatibility: PSC design with 48-frame housing; suited for a variety of outdoor condensers.
– Performance: 1075 RPM offers a middle ground between high-speed motors and energy-conscious operation.
– Durability: Drip-proof enclosure provides weather resistance in outdoor settings.
10728 Condenser Fan Motor (MOHTOL) — Reversible 1/4 HP
The MOHTOL 10728 motor is a high-compatibility condenser fan motor replacement for Mars 10733 and many equivalent models. It features a reversible rotation option, 208-230V operation, and a 1/4 HP rating with 1075 RPM. This model targets users upgrading from a variety of brands, including A.O. Smith, Genteq, and US Motors families, while preserving the original mounting and shaft dimensions.
Key considerations:
– Compatibility: Broad cross-compatibility with many major OEM part numbers and models.
– Rotation: Reversible rotation provides flexibility for installation in different system layouts.
– Installation: Comprehensive part cross-reference helps ensure a correct match before ordering.
Gledewen MOT18688 Condenser Fan Motor (Upgraded)
The Gledewen MOT18688 is an upgraded condenser fan motor designed for Trane, American Standard, and other A/C units requiring 1/8 HP, 208-230V, 825 RPM. This model replaces MOT12215 and MOT12004 while including the compatible capacitor. It emphasizes OE-style fitment and straightforward installation, typically around 45 minutes, with attention to blade alignment and motor-to-unit compatibility.
Key considerations:
– Compatibility: Specifically targets Trane and American Standard outdoor units; cross-refs MOT12215, MOT12004, MOT10514.
– Installation: Emphasizes OEM-style fit and direct replacement in standard outdoor housings.
– Quality: OE-grade construction ensures reliable operation and longevity.
Buying Guide: Key Purchase Considerations and Comparisons
When choosing a PSC condenser fan motor, consider the following to ensure the best match for your HVAC system:
- Compatibility: Verify the motor’s HP, RPM, voltage, and frame size align with your outdoor condenser unit. Cross-reference OEM part numbers when possible to avoid misfits.
- Rotation and Capacitor: Some models offer reversible rotation; others are fixed. Ensure the included capacitor (typically 5 μF to 5 MFD) matches your original setup or plan to replace it simultaneously.
- Mounting and Frame: Most outdoor condensers use a 48-frame enclosure; confirm shaft diameter, mounting holes, and blade clearance to prevent contact with the housing.
- Environment and Durability: Outdoor motors should resist weather and moisture. Look for TEAO or drip-proof enclosures and corrosion-resistant materials for longer life.
- Installation Time and Tools: Replacement durations vary. Plan for a typical 30–60 minute swap, depending on access, wiring, and blade alignment.
- Energy Efficiency: While most PSC motors deliver reliable airflow, RPM choice impacts noise and energy use. Higher RPMs provide more airflow but can raise noise and motor load expectations.
- Part Availability: Some models have broad aftermarket compatibility, while others are brand-specific. If you are maintaining a legacy unit, a widely compatible option can simplify future replacements.
- Safety: Ensure power is shut off and capacitors are discharged before handling electrical components. If unsure, consult a licensed HVAC technician.
In summary, the five options highlighted here cover a range of compatible HP ratings, RPMs, and OEM cross-reference scenarios. For most residential outdoor units built around 208-230V systems, a 1/8 HP to 1/5 HP PSC motor with a 825 RPM or similar speed provides a reliable balance of airflow, cooling, and efficiency. If your unit supports a reversible rotation or requires a particular OE replacement, the MOHTOL 10728 and Gledewen MOT18688 models offer strong cross-compatibility with common replacement part numbers.
