Best Pre-Wired Strain Gauges for Precision Measurements
Pre-wired strain gauges are critical for accurate force, pressure, and deformation measurements in both educational and professional settings. This article spotlights five well-regarded options and explains how to choose the right gauge for your project. Each entry includes installation considerations, sensitivity notes, and compatibility tips to help you plan your tests with confidence.
| Product | Brand | Resistance | Pack Size | |
|---|---|---|---|---|
| BX120-10AA, 2Pack | Cuidr | 120 Ω | 2 | 2-sided sensitivity, 0.2m leads |
| BX120-5AA, 4Pack | Cuidr | 120 Ω | 4 | Multiple units for scale tests |
| BX120-20AA, 2Pack | Cuidr | 120 Ω | 2 | Long grid length, precise alignment |
| 50AA Foil Strain Gauge, 2Pack | Cuidr | 120 Ω | 2 | Versatile for various measurement setups |
| AG-Strain Gauge 350 Ohm, 3AA | Aggofory | 350 Ω | 3 | High-compatibility for dynamics and wheatstone bridges |

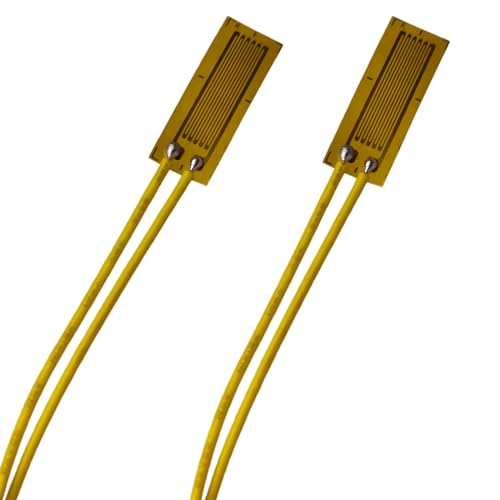

BX120-10AA 2Pack – Cuidr
The BX120-10AA strain gauge features 0.2-meter PVC leads and 120 ohm resistance, with a 10 mm grid length and 3 mm grid width. It is compatible with both dynamic and static strain gauges and is constructed from three layers: a protective laminate top layer, a thin metallic sensing element, and a plastic film base. Clear alignment marks outside the active area aid installation. The gauge demonstrates higher sensitivity to vertical strain than horizontal, which informs orientation during mounting.
BX120-5AA 4Pack – Cuidr
This 4-pack of BX120-5AA gauges shares the same three-layer construction as other Cuidr gauges, with a protective laminate, sensing element, and plastic base. It reinforces measurement versatility since a single project often benefits from multiple gauges at different points to track localized strain. As with the 10AA variant, the device’s resistance converts mechanical strain into a measurable electrical signal, enabling precise data capture for force, pressure, or weight testing. Proper orientation relative to the primary strain axis optimizes sensitivity.
BX120-20AA 2Pack – Cuidr
The BX120-20AA gauges offer a longer 20 mm grid length with a 3 mm width, maintaining 120 ohm resistance. Built with the same three-layer architecture, these gauges are easy to align thanks to visible marks around the active area. Vertical-direction sensitivity remains higher, so installation should consider the dominant strain axis. The longer grid can improve measurement resolution across larger deformation areas, making these suitable for applications requiring broader sensing coverage.
50AA Foil Strain Gauge – Cuidr
The 50AA foil strain gauge from Cuidr uses a 120 Ω resistance and shares the standard three-layer construction for reliable sensing. It is designed for dynamic or static strain measurements and includes self-contained wiring for straightforward testing and integration with existing equipment. Alignment marks outside the active area help ensure repeatable placement across multiple tests, while vertical sensitivity is typically emphasized in the gauge’s orientation to optimize results.
AG-Strain Gauge 350 Ohm – Aggofory
The Aggofory AG-Strain Gauge is a 3AA 350-ohm device designed for materials testing across mechanical and industrial contexts. It supports dynamic and static strain measurement applications and aligns with Wheatstone bridge configurations. The gauge’s structure comprises a sensitive grid and substrate with two external wires ready for machine connection without welding, simplifying setup for experiments and small-scale testing. This model broadens compatibility for scenarios where 350 ohms is preferred or required by instrumentation.
Buying Guide
Key factors to consider when selecting pre-wired strain gauges:
- Resistance and wiring: Most options in this list are 120 ohms, common for many load cells and data acquisition systems. Ensure your instrumentation supports 120 Ω or the gauge’s resistance.
- Grid length and width: Longer grids (e.g., 20 mm) cover larger deformation areas but may alter sensitivity. Shorter grids offer higher spatial resolution. Choose based on expected maximum strain location and distribution.
- Orientation sensitivity: Gauges are often more responsive to vertical strain than horizontal. Plan installation direction to align with the primary strain axis in your application.
- Three-layer construction: A protective laminate, sensing element, and plastic base provide durability and predictable performance. Verify compatibility with your environmental conditions and mounting methods.
- Bulk options: Packs (e.g., 4Pack, 2Pack) can reduce setup time for multi-point testing. Consider your test plan and whether multiple gauges are needed.
- Compatibility with Wheatstone bridges: If your system uses Wheatstone bridge circuits, ensure the gauge selection supports your bridge configuration and the expected signal range.
- Installation aids: Clear alignment marks and easy, solder-free connections simplify the mounting process and reduce installation errors.
- Durability and testing needs: For long-term or high-cycle testing, assess the gauge’s mechanical robustness and resistance to environmental factors such as temperature and humidity.
When choosing among these options, match the gauge’s resistance, grid dimensions, and pack size to your experiment’s scale, expected deformation, and data-collection cadence. For projects requiring multiple sensing points, a multi-pack option can streamline installation. If you anticipate dynamic testing with Wheatstone bridges, verify bridge compatibility and signal conditioning requirements before purchase.
