Best Pogo Pins Test Fixture for PCB Prototyping and Burn-In
Pogo pins test fixtures are essential tools for validating electronics quickly and reliably. This guide highlights five top options and what to consider when selecting a fixture for PCB testing, programming, and burn-in tasks. Each pick combines precision pogo pin design with versatile compatibility to handle a range of PCB sizes and configurations. Read on to compare features, build quality, and practical use cases to help you choose the right fixture for your testing workflow.
| Product | Brand | Key Benefit | Ideal For |
|---|---|---|---|
| PCB Universal Test Stand | VGVGV | High precision pogo contacts | Various PCB sizes and types |
| PCB Test Jig Pogo Pin Test Fixture | ZZJLOPP | Reliable contact and durability | Electronic project testing |
| EC Buying 2Pcs 2.54mm Clip | EC Buying | Secure grip with Dupont wiring | Programming and burning tasks |
| Comidox 2Pcs 5 Pin Clip | Comidox | Gold-plated pogo pins for corrosion resistance | Quick circuit board testing |
| Walfront Spring Loaded Test Pins | Walfront | Brass pogo pins with robust build | Burn-in fixtures and general testing |

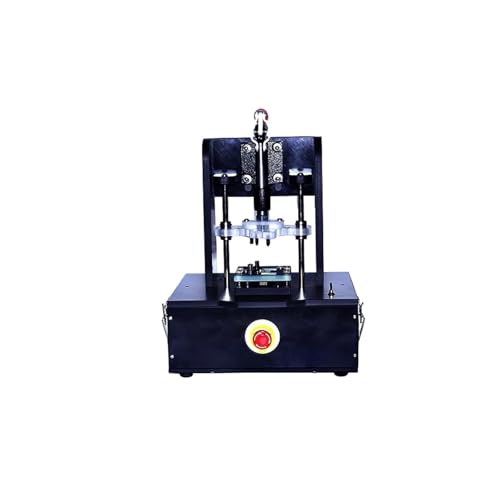

PCB Universal Test Stand
The PCB Universal Test Stand from VGVGV uses a high-precision pogo pin design to ensure reliable contact during PCB testing. Its compatibility with various PCB sizes makes it a flexible option for different electronics projects, reducing the need for multiple fixtures. Constructed with quality materials, this fixture aims to deliver durable performance even in demanding testing environments. It is a practical choice for both lab benches and production lines where repeatable contact integrity is essential.
PCB Test Jig Pogo Pin Test Fixture
This test jig from ZZJLOPP centers on reliable, accurate contact for PCB testing. The high-precision pogo pins support a variety of PCB sizes and types, making it adaptable to multiple electronic projects. The fixture’s durable construction is designed for long-term use in testing environments where consistency is critical, such as burn-in or functional verification cycles.
EC Buying 2Pcs 2.54mm Clip
The EC Buying 2Pcs 2.54mm single-row test clip provides a secure grip on PCBs during testing and programming. Its compact design accommodates boards up to a 7mm thickness, offering a stable platform for burn-in and testing tasks. The included 30cm Dupont wire enhances connectivity, enabling straightforward jumper connections and expanding fixture versatility for a range of testing setups.
Comidox 2Pcs 5 Pin Clip
Comidox offers gold-plated pogo pins designed for high-frequency debugging and burn-in testing, emphasizing reliability and corrosion resistance. The Dupont Wire-equipped clip ensures a stable grip on the circuit board, reducing movement during testing and boosting workflow efficiency. With a clamping capacity up to 7mm, this module is compatible with a wide range of testing wire clips and is a solid choice for diverse PCB fixtures and testing stations.
Walfront 100Pcs Spring Loaded Pins
Walfront’s 100-piece spring-loaded pogo pins offer a robust brass construction for reliable contact and durability. The pins are suitable for burn-in fixtures and electronics testing across various industries, including inverters, charging systems, and automotive applications. The concise 33.35mm length provides a practical balance of reach and stiffness, supporting multiple test scenarios while maintaining sturdiness under repeated use.
MEETOOT P75-E2 Spring Probes
MEETOOT’s P75-E2 spring test probes feature a conical E-type head with a 1.3mm contact diameter and 1.02mm tube diameter. The pins deliver stable contact with a 2.50mm full stroke and 100g spring force, designed for reliable circuit-board testing and burn-in work. They use high-quality materials, including a heat-treated BeCu plunger and plated bronze components, to ensure longevity in demanding environments.
2.54Mm Spacing Test Stand Clip
This 2.54mm spacing test stand clip uses gold-plated pogo pins to ensure stable electrical contact and corrosion resistance, ideal for high-frequency debugging and burn-in testing. It is compatible with EEPROMs and various SPI/ARM/JTAG devices, and the solderless clip design supports quick programming without disassembly, reducing risk to boards while saving time.

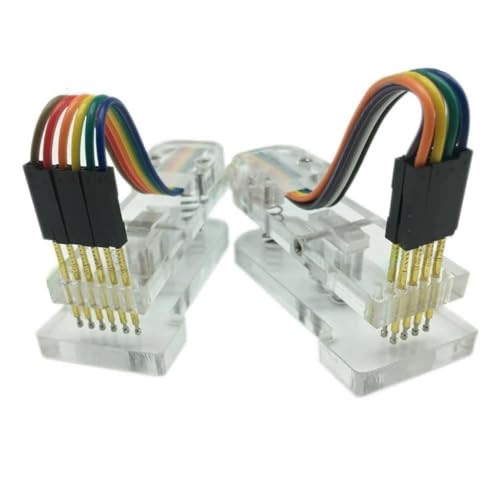

Test Stand Clip 1.27/2.0/2.54Mm Spacing
This generic test stand clip supports multiple spacing options, including 1.27, 2.0, and 2.54mm. The gold-plated pogo pins provide stable contact and corrosion resistance for high-frequency debugging and burn-in tasks. The solderless, clip-based design enables easy chip programming without board disassembly, reducing risk to devices and increasing throughput.
Buying Guide: Key Considerations For Choosing A Pogo Pins Test Fixture
- Pin quality and material: Look for gold-plated or high-grade BeCu pins for corrosion resistance and reliable contact over many cycles.
- Contact geometry: Conical versus concave heads affect contact area and probe wear. Choose based on PCB pad size and alignment tolerance.
- Pitch and spacing: Common options include 2.54mm (0.1″), 2.0mm, and 1.27mm. Ensure compatibility with your PCB layouts and test rigs.
- Clamping range: Check maximum board thickness and clamp force to prevent slippage without damaging boards.
- Wiring and interface: Dupont wiring and solderless clips simplify setup and reduce disruption during tests. Ensure wiring length fits your fixture footprint.
- Durability: For burn-in and high-frequency work, fixtures should withstand repeated cycles with minimal contact resistance drift.
- Compatibility: Consider whether the fixture supports multiple PCB sizes and common programming standards (SPI, JTAG, UART, etc.).
- Ease of use: Quick attachment/detachment, clear labeling, and robust connectors help maintain workflow efficiency.
- Cost vs. value: While premium pins last longer, ensure the fixture’s capabilities align with your testing requirements and budget.
- Maintenance: Availability of spare pins and easy cleaning access can reduce downtime during production runs.
These considerations help balance precision, versatility, and cost. For teams performing frequent burn-in, prioritizing durable pins and secure clamping can improve yield and data reliability. For quick circuit checks, solderless clips and easy wiring reduce setup time without compromising contact integrity. When evaluating fixtures, align features with your PCB sizes, test regimes, and programming needs to maximize testing efficiency and consistency.
