Best NEMA 4X Conduit Fittings for Outdoor Installations
Choosing reliable NEMA 4X conduit fittings ensures protection against moisture, corrosion, and wash-down conditions in outdoor and harsh environments. This guide highlights five relevant products that align with the needs of robust electrical installations, from liquid-tight connectors to explosion-proof options. Each item includes notable features to help compare durability, ease of use, and compatibility with standard conduit systems.
Summary of Selected Products
| Product | Brand | Type | Key Benefit |
|---|---|---|---|
| LifCratms 4Pcs NPT 3/4″ 180D Liquid Tight Conduit Connector Fittings | LifCratms | Liquid Tight PVC Connector | Indoor/Outdoor use; reusable; high-temp tolerance |
| Wiegmann BH0404 NEMA 1 Lay-in Hanger | Wiegmann | Steel Conduit Hanger | Rigid support for wireways; sturdy steel construction |
| DJC Supply Co. 4″ x 4″ x 3″ PVC Junction Conduit Box | DJC Supply | PVC Conduit Junction Box | Pre-molded conduit holes; lightweight and recyclable |
| Crouse-Hinds ECD385 Explosion Proof Universal Drain Or Breather | Crouse-Hinds | NEMA 4X Drain/Breather | Explosion-proof, suitable for harsh environments |
| Hoffman F44G90E Wireway, NEMA 1 | Hoffman | Steel Wireway | Flexible orientation with removable sides |
Note: The following sections provide detailed product insights, including images, features, and practical considerations for selecting the right conduit fittings for NEMA 4X environments.
LifCratms 4Pcs NPT 3/4″ 180D Liquid Tight Connector
The LifCratms set includes four liquid-tight PVC connectors designed for NPT 3/4″ conduit. Key characteristics include a temperature rating up to 125°C and a 94V-2 flammability class. The connectors are manufactured from high-strength PVC, making them suitable for both indoor and outdoor use. They are reusable and come with ferrules and locknuts to simplify installation—convenient for various wiring configurations and weather-exposed environments.
- Materials: PVC with ferrule and locknut
- Temperature index: 125°C
- Compatibility: Indoor/outdoor use; reusable
- Includes four connectors: 2.22″ x 1.65″ (L x W)

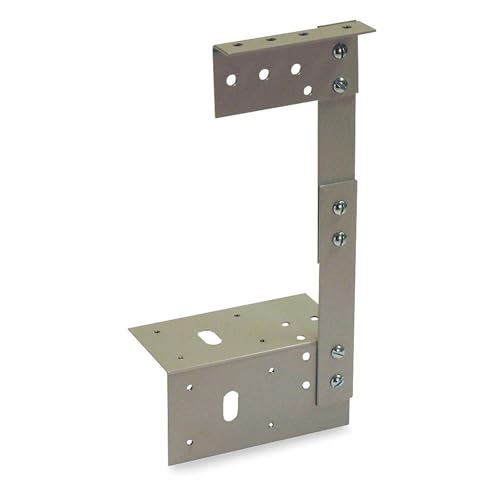

Wiegmann BH0404 NEMA 1 Lay-in Hanger
The Wiegmann lay-in hanger is designed for use with HS and S Series wireways, featuring ANSI-61 gray color and robust steel construction (12 gauge and 14 gauge carbon steel). This hanger provides reliable support for conduit and wireways, contributing to stable, code-compliant installations in a variety of settings, including outdoor or industrial environments where corrosion resistance and mechanical strength matter.
- Material: Carbon steel (12/14 gauge)
- Finish: ANSI-61 gray smooth
- Compatibility: HS/S Series wireways
- Size: 4″ x 4″ layout for sturdy mounting
DJC Supply PVC Junction Conduit Box
The DJC Supply PVC junction box offers lightweight, environmentally friendly PVC material with pre-molded conduit holes. The material choice supports recyclability and lower environmental impact, while the pre-molded holes simplify installation—useful for quickly routing conductors in compact or outdoor spaces. The product emphasizes ease of assembly and straightforward knock-out customization for conduit runs.
- Material: PVC (recyclable)
- Pre-molded conduit holes for quick wiring
- Lightweight yet durable
- Suitable for outdoor and indoor use
Crouse-Hinds ECD385 Explosion Proof Drain Or Breather
This universal drain or breather is designed for hazardous locations with NEMA 4X protection. From Cooper Crouse-Hinds, it combines explosion-proof performance with versatile drainage or breather functionality. This component is well-suited for outdoor, wet, or dusty environments where maintaining enclosure integrity and venting is essential to prevent moisture buildup and pressure issues inside enclosures.
- Protection: NEMA 4X
- Application: Drain or breather for enclosures
- Industry: Explosion-proof environments
- Brand lineage: Crouse-Hinds
Hoffman F44G90E Wireway
The Hoffman F44G90E wireway offers NEMA 1 protection in a 4.0″ x 4.0″ steel enclosure with a 90-degree elbow design. It features removable sides to preserve lay-in functionality regardless of elbow orientation, making it adaptable for different layouts. The unit is steel-built with a painted finish for added durability in indoor or sheltered outdoor installations.
- Material: Steel
- Protection: NEMA 1
- Configuration: 90-degree elbow; removable sides
- Finish: Painted steel
Buying Guide: Key Purchase Considerations for NEMA 4X Conduit Fittings
-
<liEnvironment and protection level: Confirm enclosure ratings (NEMA 4X vs. NEMA 1) and suitability for outdoor, wet, or corrosive environments. For outdoor installations, prioritize 4X-rated components when applicable.
- Material and corrosion resistance: PVC and nonmetallic connectors offer corrosion resistance and lightweight handling, while steel enclosures and metal fittings provide higher mechanical strength and grounding options.
- Temperature and chemical exposure: Check temperature ratings and inhibitor materials to withstand local heat, sunlight, and chemical exposure. Some PVC connectors are rated up to 125°C as noted for LifCratms products.
- Ease of installation: Look for features such as pre-molded conduit holes, locknuts, ferrules, and knock-outs to simplify wiring and reduce installation time.
- Compatibility and standards: Ensure compatibility with standard conduit sizes (e.g., 3/4″ and 4″ trade sizes) and verify approvals (UL, CSA, IEC) when selecting components for specific projects.
- Maintenance and serviceability: Reusable connectors and modular components can simplify maintenance, replacements, and future upgrades in evolving electrical systems.
- Environmental considerations: Evaluate recyclability and material choices (PVC vs. metal) to align with sustainability goals and regulatory requirements.
