Best NEMA 3R Panelboard Enclosures for Outdoor Electrical Installations
Choosing the right NEMA 3R panelboard enclosure helps protect electrical components from weather, dust, and tampering. The following selections highlight outdoor-rated enclosures that balance durability, ease of installation, and accessibility. Each product below is well-suited for outdoor electrical projects, equipment housings, and panelboard setups that require reliable protection. This guide compares construction, sealing, mounting, and access features to help you decide which enclosure best fits your needs.
| Product | Material / Rating | Approximate Dimensions | Key Benefit |
|---|---|---|---|
| Leviton NEMA Type 3R Enclosure | Thermoplastic, NEMA 3R | 16S31-UCL model, size varies by configuration | Outdoor-rated with automatic closing lid and corrosion-resistant hardware |
| Benner-Nawman NEMA 3R DataCom Enclosure | 16-gauge zinc-coated steel with desert tan powder coat | 24″ x 26″ x 8″ | Includes backboard and ground bar; multiple knockouts for conduit |
| VEVOR Fiberglass Enclosure (3X) | Fiberglass reinforced polyester, IP65 | 23.6″ x 15.7″ x 9.1″ | Rugged, weatherproof with reinforced hinges and latches |
| NEMA Outdoor Steel Enclosure (CentroPower) | Cold-rolled steel, IP65 | 19.6″ x 15.7″ x 7.8″ | Durable steel construction with modular back panel options |
| VEVOR Fiberglass Enclosure (3X) | Fiberglass reinforced polyester, IP65 | 23.6″ x 15.7″ x 9.1″ or similar | Durable weatherproof housing with dual quarter-turn latches |
Note: The listed products cover a spectrum of outdoor-ready enclosures, with several models explicitly rated for NEMA 3R or related outdoor protections. Review specific model numbers and dimensions to ensure compatibility with your panelboard and mounting requirements.
Leviton NEMA Type 3R Enclosure
The Leviton 16S31-UCL enclosure combines a thermoplastic housing with a cover designed for outdoor use. It features a stainless steel torsion spring on the lid for reliable automatic closing and a cylindrical profile to reduce snap stress on the enclosure. Termination options include single or double set screws or crimp tubes, providing flexible cable management for panelboard connections in outdoor environments. This unit is NEMA 3R rated when mated, offering rain and corrosion resistance suitable for exterior installations where weather exposure is a concern.
VEVOR Fiberglass Enclosure 3X
Constructed from fiberglass reinforced polyester, this enclosure delivers durable weather resistance with IP65 sealing. It employs a robust lock core, reinforced hinges, and dual quarter-turn latches to secure access. The unit is designed to prevent water intrusion and withstand rain erosion, making it a solid option for outdoor equipment housings that require reliable protection for sensitive electrical gear such as panelboards and control components.
NEMA Outdoor Steel Enclosure CentroPower
This CentroPower enclosure uses heavy-duty cold-rolled steel with a powder-coated finish designed to resist deformation and environmental exposure. It features a modular DIY back panel and a rain hood option to deter rain ingress when the lid is opened. Sealing, robust hinges, and a secure locking mechanism provide reliable protection for panelboard components in outdoor projects, making it suitable for installations requiring sturdy steel enclosures with good weather sealing.

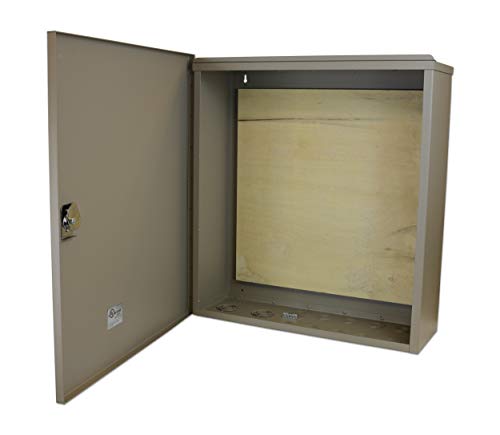

Benner-Nawman 3R DataCom Enclosure
Benner-Nawman’s exterior data enclosure combines a 24″ x 26″ x 8″ form with 16-gauge zinc-coated steel and a desert tan powder coat. It includes a backboard and a 4-position ground bar inside, plus multiple knockouts (7/8″ to 2-1/2″ and 7/8″ to 1-3/4″) for circuit wiring and conduit routing. This design supports sturdy mounting and easy organization of electrical panel components for outdoor installations subject to exposure and maintenance needs.
VEVOR Fiberglass Enclosure 3X (Second Version)
This fiberglass enclosure mirrors the durability features of the earlier 3X model with IP65 sealing and reinforced locking hardware. Its design emphasizes weather resistance and secure access, with hinged doors and quarter-turn latches that help prevent water intrusion while allowing straightforward maintenance and inspection of panelboard components.
Buying Guide: Key Purchase Considerations For Outdoor Enclosures
- Protection Rating: Match enclosure rating to your environment. NEMA 3R and IP65 or higher protect against rain, dust, and corrosion, but verify compatibility with your local climate and weather exposure.
- Material Choice: Thermoplastic enclosures are lightweight and corrosion-resistant, while fiberglass offers excellent weather resistance and UV stability. Steel enclosures provide robust physical protection but may require more maintenance against corrosion if not properly coated.
- Sealing And Gasket Design: Look for reliable gasket materials, rubber sealing strips, and rain hoods to reduce water ingress. Verify that doors, hinges, and latches are designed for frequent access without compromising seal integrity.
- Mounting And Backing: Consider back panels, mounting plates, and knockouts for conduit entry. A removable or modular back panel can simplify wiring and equipment installation inside the box.
- Locking Security: A secure lock core and reinforced hinges prevent unauthorized access. Choose latching mechanisms that stay secure under outdoor conditions while allowing easy servicing when needed.
- Size And Configuration: Ensure the enclosure dimensions accommodate your panelboard, wiring, and any internal mounting hardware. Leave space for cable clearances and potential future expansion.
- Installation Environment: If the enclosure is placed on walls or poles, ensure mounting options support the anticipated load and vibration. Weatherproof ratings should align with wind and exposure considerations.
- Maintenance And Serviceability: Favor designs with easy-to-clean interiors and accessible hardware. Durable materials and straightforward seal maintenance extend service life.
- Cost and Availability: Compare total cost of ownership, including accessories, gasket replacements, and potential retrofit options. Availability matters for project timelines.
This collection provides practical outdoor enclosure choices for panelboard and related electrical installations. When selecting a model, verify the exact NEMA or IP rating, confirm dimensions, and assess how the enclosure integrates with your wiring plan and mounting settings. The right enclosure minimizes weather-related risks while facilitating safe and accessible electrical maintenance.
