Best Nema 34 Stepper Motor Options for Precision CNC and 3D Printing
Finding the right Nema 34 stepper motor hinges on torque needs, current ratings, and the level of control you want in a CNC router, mill, or 3D printer. This guide highlights five top options, clarifying who each is best for and why. Whether you need high torque for heavy cuts, or a closed-loop system to prevent missed steps, these choices cover a range of applications. The products below are suited for users building or upgrading machines that demand robust performance from Nema 34 form factors.
| Product | Torque (Nm) | Current (A) | Notes |
|---|---|---|---|
| STEPPERONLINE Nema 34 Stepper Motor 4.8Nm | 4.8 | 6.0 | Low vibration and noise; good for mid-range force in CNC/light milling. |
| Nema 34 Stepper Motor 8.5Nm | 8.5 | — | Higher torque; suitable for demanding cuts; heavier and longer motor. |
| STEPPERONLINE Closed Loop 12Nm | 12 | 6.0 | Encoders and closed-loop control for precise, stall-free operation. |
| Nema 34 12.8Nm High Torque | 12.8 | 6.4 | Very high torque; best for heavy-duty machines; larger and heavier. |
| NEMA 34 Integrated Closed-Loop 6.5Nm | 6.5 | 6.0 | Compact closed-loop solution with integrated controller and encoder. |
STEPPERONLINE Nema 34 Stepper Motor 4.8Nm
Features: Low vibration, low noise, high speed; bipolar 2-phase with 4 leads; holding torque 4.8Nm (679.87oz·in); rated current per phase 6.0A; voltage range 36-60VDC.
Best for: hobbyists or small shop setups needing solid mid-range torque without excessive heat or weight. This motor fits standard Nema 34 frames and offers a good balance of speed and torque for lighter milling, precise jogging, and moderate feeds in DIY CNC projects.
Why selected: It provides a reliable, straightforward upgrade path for machines requiring a robust, non-closed-loop solution with a clear specification of current and voltage. The 4.8Nm torque is enough for many precise tasks without demanding the highest torque motors.
Caution/Limit: Higher-speed performance may become less consistent under heavy loads; ensure drive electronics and cooling meet your application’s duty cycle.
Nema 34 Stepper Motor 8.5Nm
Features: 118mm length; 8.5Nm (1204 oz-in) torque; 3.6kg weight.
Best for: larger CNC routers or mills where aggressive cutting and high axial loads require substantial torque. This motor can handle tougher materials with steadier performance than smaller equivalents.
Why selected: Its torque is well-suited for demanding operations, reducing stall risk on heavier feeds. The longer form factor helps manage heat and mechanical leverage in bigger machines.
Caution/Limit: The increased size and weight demand compatible mounts, drivers, and power supplies; ensure your gantry and frame can accommodate the motor’s dimensions.

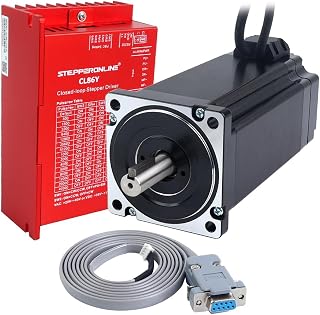

STEPPERONLINE Closed Loop 12Nm
Features: 1.8° step angle; 12Nm holding torque; 6A rated current; 2-phase, 4-lead; built-in encoder with 1000PPR (4000CPR); encoder feedback enables high precision and no loss of steps; driver supports 800-40,000 microsteps.
Best for: precision-focused CNC tasks requiring high torque and reliable position maintenance, such as precise milling, routing, and automated tooling where slip or missed steps are unacceptable.
Why selected: The combination of strong torque and encoder feedback reduces runout and improves repeatability in demanding setups. Closed-loop control helps minimize calibration drift over time.
Caution/Limit: System complexity increases with encoder and driver integration; ensure compatibility with your control software and power sourcing.
Nema 34 12.8Nm High Torque
Features: 86x149mm body; 12.8Nm torque; 0.7Ω resistance; rated current 6.4A; 4-lead; shaft 14mm; cable 2m; weighs about 5.25kg.
Best for: heavy-duty applications where peak torque is essential, such as large-format CNC milling, machining tough materials, or when firm responsiveness is required under high loads.
Why selected: This motor delivers one of the highest torques among the listed options, making it ideal for machines where cutting forces are intense and frequent stall must be avoided.
Caution/Limit: Its weight and size increase inertia; verify mounting, frame rigidity, and drive compatibility to prevent alignment issues.
NEMA 34 Integrated Closed-Loop
Features: Integrated closed-loop design with pulse-direction control; built-in encoder and motion controller; supports 24-48VDC and up to 6A; torque up to 6.5Nm.
Best for: compact automation projects requiring a single, space-saving solution with integrated control and feedback, such as compact CNC mills or compact 3D printers with high precision needs.
Why selected: The all-in-one design reduces wiring complexity and simplifies integration for users who want a turnkey closed-loop system without separate drivers.
Caution/Limit: Limited to the integrated controller’s capabilities; ensure the controller features meet your application’s timing and path planning requirements.
Buying Guide: Key Considerations For Selecting A Nema 34 Stepper Motor
Torque vs. current: Higher torque motors often require higher current ratings. Ensure your driver can safely supply the rated current and consider cooling requirements to prevent overheating.
Open-loop vs closed-loop: Closed-loop motors offer encoder feedback to reduce missed steps and improve accuracy, but add driver and control complexity. Choose closed-loop when precision and reliability under load are critical.
Mounting and form factor: Nema 34 frames vary in length and shaft size. Confirm shaft diameter (often 14mm) and installation hole patterns fit your machine’s mount and drive gear or belt system.
Heat management: Higher torque motors generate more heat. Plan for passive or active cooling, especially for long runs or high-speed operation.
Drive compatibility: Check voltage range, microstepping options, and impedance to match your controller or motor driver. Improper matching can lead to reduced torque or unstable operation.
Weight and inertia: Heavier motors affect acceleration and deceleration. Ensure your gantry or carriage can handle the additional inertia without compromising performance.
Practical considerations and quick comparisons
- Best overall balance: 4.8Nm open-loop motor for standard CNC tasks where a simple setup is preferred.
- Best for high demand: 8.5Nm or 12.8Nm motors for aggressive milling and heavy-duty material processing.
- Best precision: Closed-loop 12Nm for applications needing near-zero missed steps and reliable repeatability.
- Best compact option: Integrated closed-loop 6.5Nm for space-constrained builds with simplified wiring.
FAQ
- What is a Nema 34 stepper motor?
A Nema 34 stepper motor is a large-sized stepper with a 86 x 86 mm mounting frame, designed for high torque and robust performance in CNC, milling, and 3D printing applications.
- Why choose a closed-loop Nema 34 motor?
Closed-loop motors use encoder feedback to maintain position, reduce missed steps, and improve reliability under load, making them suitable for high-precision tasks.
- How do I pick torque and current?
Match motor torque to your load and material, then verify your driver can supply the rated current. Higher torque often requires better cooling and a compatible drive system.
- Are integrated closed-loop motors easier to install?
They can simplify wiring and control, but you must ensure the built-in controller and encoder are compatible with your control software and hardware.
- What maintenance should I expect with high-torque Nema 34 motors?
Expect periodic inspection of wiring, connectors, and drive electronics; monitor temperature to avoid overheating and inspect mounting integrity after heavy use.
- Can these motors be used in 3D printers?
Yes, especially the higher-torque or closed-loop variants can improve print stability and enable faster, more reliable extrusion for demanding materials in large-format printers.
