Best M12 Push Pull Connectors for Reliable Industrial Wiring
The M12 push-pull connector family offers rugged, easy-to-use solutions for industrial and outdoor wiring. This guide highlights five top options, covering IP68 water and dust protection, quick locking mechanisms, and versatile configurations for sensors, automation, and automation systems. Each product below includes a short overview, key features, and how it fits typical M12 push-pull applications.
| Product | Brand | Key Feature | Ideal For |
|---|---|---|---|
| CNLINKO LP-12 6-Pin | CNLINKO | IP68 waterproof protection when mated | Industrial sensors and quick-connect lines |
| LOKLNEYK LP12 M12 IP68 Outdoor | LOKLNEYK | Auto-locking, IP68, outdoor rugged design | Automotive and harsh outdoor environments |
| HangTon 3-Pin Right-Angle | HangTon | 90-degree adjustable elbow for cable routing | Compact installations with limited space |
| 21033816404 M12 Push/Pull X/D Coded | Generic | Push-pull, X/D coded for quick mating | Packed sensor and actuator links |
| 21031111415 M12-S Push-Pull 4P | Generic | 4-pole, push-pull, compact housing | Industrial control interfaces |
CNLINKO LP-12 6-Pin Push-Pull Connector
The LP12 6-Pin connector from CNLINKO features an IP68 rating when mated, delivering strong dust and water resistance for demanding environments. It supports cables in the 22-20 AWG range (0.34-0.5 mm²) with a diameter range of 4.5–5.5 mm. The connector pairs with a 6-pin contact design and offers a durable mating lifecycle of at least 500 cycles. Electrical specs include 5 A at 125 V AC, with high insulation resistance and low contact resistance, making it suitable for industrial automation and sensor networks. Assembly supports soldering, and caution is advised to avoid charging during insertion.

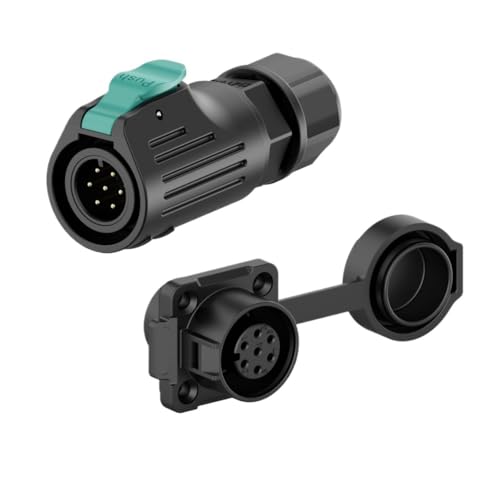

LOKLNEYK LP12 M12 IP68 Outdoor Push-Pull
LOKLNEYK presents an IP68-rated M12 push-pull, designed for outdoor and automotive electrical applications. The system uses a robust M12 male and female pair, delivering reliable connectivity even under challenging conditions. Its automatic insertion and self-locking mechanism streamlines the connection process, while the IP68 rating protects against dust and water ingress up to two meters for two hours. This makes it a strong option for outdoor equipment, industrial machinery, and rugged sensor networks requiring durable connections.
PHOENIX CONTACT M12 Front-Mount Housing
This Phoenix Contact M12 housing is designed for front mounting and panel integration. It is described as a plug-ready housing with mechanisms suitable for securing and aligning M12 connectors. While the listing emphasizes the housing and mounting style rather than a complete push-pull assembly, it pairs well with push-pull connectors in compact control cabinets. The product line focuses on robust mechanical integration, ensuring secure mating and ease of maintenance for industrial control networks.
M12 Push-Pull X/D Coded Adapters
This item provides a push-pull M12 interface with X/D coding, designed for quick mating and secure retention between mating halves. The adapter-style product typically offers in-line compatibility and is useful for linking different M12 configurations or extending reach between components. It lists a 17.2 mm shell diameter and a 58 mm length, focusing on seamless integration with female counterparts for sensor and actuator connections in industrial settings.
M12 Push-Pull Rear-Mount Housing
This rear-mount M12 housing is designed for PCB or panel installations, offering IP67 protection and robust mechanical support. It complements push-pull mating mechanisms by providing a stable mounting point for M12 connectors and ensures repeatable, reliable connections in control panels and automation equipment. The focus is on secure retention, easy maintenance, and compatibility with standard M12 plug and socket configurations.
HangTon Silver 3-Pin Right-Angle M12 Connector
The HangTon 3-Pin right-angle M12 push-pull connector emphasizes a rotated adjustable elbow to optimize cable paths and reduce strain. With a 12 A rating and 20 AWG compatibility, this connector is suited for audio/video, energy, and industrial applications requiring compact, flexible mounting. Its short, adjustable elbow helps manage cable routing in tight spaces while maintaining a secure, push-pull engagement for quick disconnects.
M12-S Push-Pull 4P Inverse Male
This M12-S Push-Pull 4P connector features an inverse male configuration for specialized mating schemes requiring a compact, unshielded, four-pole arrangement. The product emphasizes a gold-plated contact option and a standard current rating suitable for general industrial control lines. It is a practical choice for sensor-to-controller links, automation modules, and other M12-based interconnects that benefit from quick connection and secure retention.
Buying Guide: Key Considerations for M12 Push-Pull Connectors
- IP Rating and environmental protection: For outdoor or harsh industrial environments, prioritize IP68-rated push-pull connectors that protect against dust, water ingress, and immersion.
- Pin count and coding: Choose configurations (e.g., 3P, 4P, 6P) and coding (A, B, X/D, S) that align with your sensor, actuator, or control system requirements.
- Connection mechanism: Push-pull assemblies offer rapid mating and secure retention. Confirm mating cycle ratings to ensure long-term durability in repeated connect/disconnect scenarios.
- Cable size and assembly: Verify compatible wire gauges and insulation/dielectric ratings. Some designs support solder or quick-disconnect assembly, affecting installation time.
- Environmental compatibility: Consider temperature ranges, vibration resistance, and chemical exposure when selecting connectors for automotive or outdoor use.
- Mechanical mounting: Front, rear, or panel-mount housings affect how you integrate connectors into enclosures, control panels, or machine housings.
- mating compatibility: Ensure your chosen connectors align with the mating partner’s pin configuration and coding to avoid mis-wiring and signaling errors.
- Maintenance and lifecycle: Look for low contact resistance, high insulation resistance, and robust mating lifecycles to minimize downtime and replacement costs.
The options above illustrate a range of M12 push-pull connectors suitable for industrial automation, sensors, and outdoor equipment. When selecting, align the product’s IP rating, pin configuration, and mounting style with your system’s electrical and mechanical needs to ensure reliable performance across environments.
