Best Low Profile Plastic DIN Rail Power Supplies for Tight Installations
In crowded electrical panels, a low profile plastic DIN rail power supply is often the best choice for saving space while delivering reliable 24V or 12V DC power. This guide highlights five compact options suitable for control panels, automation, and small machines. Each product is evaluated for who it’s best for, its standout feature, and a practical limitation to consider. Use this to match your enclosure size, input voltage, and current needs with a unit that fits without oversizing the cabinet.
Buyer summary table
| Product | Best For | Key Feature | Notes |
|---|---|---|---|
| HDR-60-24 Ultra Slim Step-Shape 3SU | High-current, compact spaces | 24V, 4.5A output | Very slim design; check input compatibility |
| Ultra Slim Step-Shape 4SU (12V, 2A) | AC/DC versatility in one rail | Dual input (AC or DC) 85-264VAC / 120-370VDC | Broad input range; may require careful wiring |
| MEAN WELL HDR-15-12 | Budget-friendly, 12V supply | 12V, 1.25A | Ultra slim; ideal for small modules |
| 120W 24V Din Rail (Hapidot) | Quiet operation in demanding layouts | No fan, 24V output up to 5A | High wattage; ensure enclosure cooling |
| MDR-20-12 (NVVV) | Simple 12V supply for small loads | 12V, 1.67A | Compact, straightforward 12V option |
HDR-60-24 Ultra Slim Step-Shape 3SU DIN Rail Power Supply
The HDR-60-24 unit provides 24V DC output with a 4.5A current capability, packaged in a slim DIN-rail form factor. It is well suited for compact control panels where space is at a premium. The unit supports an input range of 85 to 264 VAC, enabling broad regional use without changing jumpers or wiring configurations. Best for applications requiring higher current in a small footprint, such as compact PLCs or motor drives. A potential limitation is that the advertised current rating may exceed what your enclosure’s cooling can reliably handle in continuous operation; verify heat dissipation in your panel.
Who it’s best for: engineers designing tight control panels needing stable 24V power with substantial current, without adding depth to the enclosure.
Ultra Slim Step-Shape 4SU 12V DIN Rail Power Supply
This 12V DIN rail supply offers a dual-input design (AC or DC) across a wide voltage range (85-264VAC or 120-370VDC). It’s ideal for installations that may source power from different networks or that need redundancy against voltage fluctuations. The adjustable output feature spans roughly 10.8 to 13.8V, allowing fine-tuning for sensitive devices. Efficiency is around 88% at 230V AC, contributing to lower heat and power loss. Caution: complex wiring due to dual-use terminals may require careful labeling during installation.
Who it’s best for: multi-source environments and projects requiring flexible input options and adjustable output for precise 12V loads.
MEAN WELL HDR-15-12 Ultra Slim Step-Shape 1SU
The HDR-15-12 delivers 12V at 1.25A with a compact 15W maximum output, designed for small electronics and automation modules. This unit is a practical choice when a minimal footprint is necessary and the current requirement is moderate. Best for light-duty control panels, sensors, or small actuators. A limitation to consider is its lower current rating compared to higher-wattage models, which may require parallel units for larger loads.
Who it’s best for: projects needing a compact, cost-effective 12V supply for small devices and modules.
OMCH DR-15-5 15W 5V DIN Rail Power Supply
The OMCH DR-15-5 provides 5V at up to 3A from a 15W supply, suitable for microcontrollers, small sensors, and low-power peripherals. Its universal 100-240V AC input enables global deployment without manual voltage selection. Built-in protection features help guard against overload and short circuits, which supports durable operation in compact systems. Choose this if your project requires a reliable 5V rail in a slim enclosure; avoid if higher current or voltage is needed for other components.

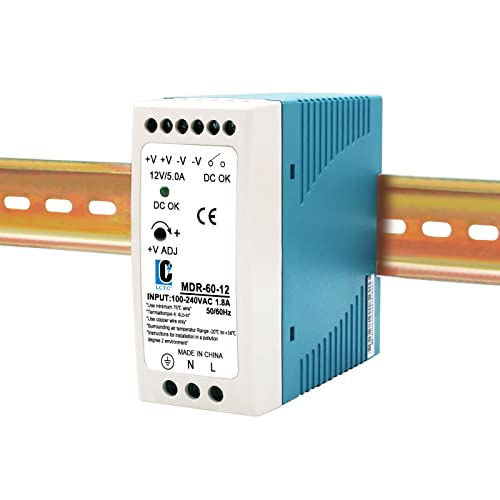

DIN Rail DC 12V Switching Power Supply MDR 60W
This 60W unit delivers 12V DC at up to 5A, suitable for mid-range loads within a DIN rail enclosure. It supports global input voltages 100-240VAC and runs at standard 50/60Hz. The absence of a cooling fan can be advantageous for quiet operation and compact panels, though higher-wattage tasks may require additional ventilation. Best for applications requiring a steady 12V rail with moderate current.
Buying Guide: Key Considerations For Low Profile Plastic DIN Rail Power Supplies
- Voltage and current: Match your device’s voltage and total current draw. Consider future expansions to avoid undersizing.
- Input voltage range: Global deployments benefit from wide AC/DC input ranges. Confirm compatibility with your region and any DC bus configurations.
- Physical footprint: Measure DIN rail height, depth, and mounting space. “Slim” designs save cabinet space but ensure wiring clearance.
- Efficiency and heat: Higher efficiency reduces heat in tight enclosures. Check if the unit requires convection cooling or active cooling in high-load scenarios.
- Protection features: Look for short-circuit, overload, and over-voltage protection. Built-in safeguards extend system longevity.
- Installation practices: Label inputs/outputs clearly. For dual-input models, plan wiring to avoid accidental misconnection.
- Environmental conditions: Consider ambient temperature and enclosure rating. Some units advertise wide temperature ranges suitable for harsh environments.
- Maintenance and accessibility: Choose a design with easy terminal access for service and replacement without disconnecting other components.
Frequently Asked Questions
- What is a low profile DIN rail power supply best for?
It is ideal for crowded panels and small enclosures where space is limited while still delivering reliable DC power to automation equipment. - Do I need a universal input range?
Universal input helps in international deployments or where voltage fluctuations occur; it reduces the need to swap units or adjust wiring. - Is higher wattage always better?
Not necessarily. Higher wattage provides headroom but can increase size and heat. Match wattage to expected load plus a margin. - Are dual-input models advantageous?
They offer flexibility if you source power from AC or DC rails, but wiring complexity increases; ensure proper labeling and safety. - What about cooling in a small enclosure?
Consider units with built-in fans only if you have adequate clearance; otherwise, choose fanless designs and optimize airflow. - How do I verify compatibility with my device?
Confirm exact output voltage, current rating, and regulatory requirements; ensure the supply’s protections cover your connected equipment.
