Best Light Pole Anchor Bolt Template Tools for Easy Installation
Finding the right anchor bolt template can save time and improve accuracy when installing light poles. This guide reviews top-rated templates designed to fit standard tube sizes, accommodate various bolt diameters, and simplify bolt circle measurements. Each option is evaluated for ease of use, compatibility, and durability to help contractors and DIYers choose confidently.
Summary of chosen products:
| Product | Brand | Key Fit | Special Features |
|---|---|---|---|
| BOLT STAR 24″ Orange Bolt Template Tool | BOLT STAR | 24″ (610 mm) Round tube | Xtender adaptors, bubble levels, 7″–14″ bolt circles, four arms |
| BOLT STAR 18″ Green Bolt Template Tool | BOLT STAR | 18″ (457 mm) Round tube | Xtender adaptors, bubble levels, 7″–14″ bolt circles |
| BOLT STAR 30″ Yellow Bolt Template Tool | BOLT STAR | 30″ (762 mm) Round tube | Xtender adaptors, bolt circle and square measurements, bubble levels |
| BOLT STAR 018-00404 18” Reusable Template | BOLT STAR | Multiple sizes including 18”, 24”, 30” | Accepts 5/8” to 1” bolts, reusable |
| X-Bolt Adjustable & Reusable Template | X-Bolt | 18″–24″ forms | Adjustable, 6061 aluminum and stainless steel, up to 1” bolts |
BOLT STAR 24″ Orange Bolt Template Tool
The BOLT STAR 24″ template fits a standard 24″ round forming tube and includes Black Xtender adapters to fit larger 25″ outer tubes. The kit comprises four orange arms and a black hub, plus a set of Xtender Adaptors and hardware. Bubble levels are included to aid alignment. Not included are anchor bolts, tube, and rebar cage. Bolt slots accommodate four anchor bolts up to 1 inch in diameter. Bolt circle measurements from 7″ to 14″ are engraved on the tool for quick setup.
BOLT STAR 18″ Green Bolt Template Tool
The BOLT STAR 18″ template fits an 18″ round tube and uses Black Xtender Adaptors to fit the larger 19″ outer tube often labeled as 18″. The kit includes four green arms and a black hub, plus one set of Xtender Adaptors with hardware. Bubble levels help verify alignment. Not included are anchor bolts, rebar cage, and tube. It supports four anchor bolts up to 1″ diameter and features a 7″–14″ bolt circle range engraved on the tool for precise placement.
BOLT STAR 30″ Yellow Bolt Template Tool
The BOLT STAR 30″ template is designed for 30″ round forming tubes with a 31″ outer tube option. It includes four yellow arms and a black hub, plus a set of Xtender Adaptors and hardware. Bubble levels are included to help ensure level installation. Concrete forming tube is not included. The tool supports four anchor bolts up to 1″ diameter and offers 7″–14″ bolt circle measurements plus 5″–10″ bolt square measurements engraved on the tool for accuracy.

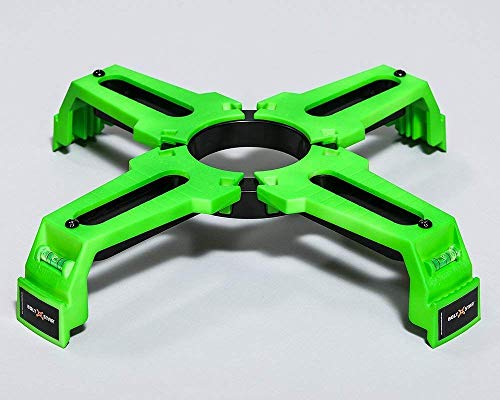

BOLT STAR 018-00404 18” Reusable Template
This reusable multi-size template supports 18″, 24″, 30″ and Square Foundation Edition. It accepts bolts from 5/8″ to 1″ in diameter and offers bolt circles from 7″ to 14″. The template self-centers on the rim of the tube, enabling fast setup with reduced labor. It’s intended for repeat use across multiple projects and is designed to minimize wasted labor during concrete pours.
X-Bolt Adjustable & Reusable Pole Base Template
The X-Bolt template is an adjustable and reusable jig for concrete light bases. It supports 18″ to 24″ concrete forms and accepts bolts up to 1″ diameter. Crafted from 6061 aluminum and stainless steel, it emphasizes durability and precision. Its intuitive design aims to reduce setup time and labor costs, making it suitable for repetitive pole installations and long-term use on job sites.
Buying Guide: Key Considerations for Light Pole Bolt Templates
- Correct fit for tube size: Templates must align with the nominal tube diameter (18″, 24″, 30″ and related outer sizes). Confirm whether adapters are included for slightly larger outer tubes.
- Bolt diameter and count: Check the maximum bolt size (commonly 1″ or 25 mm) and the number of anchor bolts the template can accommodate in a single setup.
- Bolt circle and square measurements: Look for engraved measurements and presets for common circles (7″–14″) and square layouts to expedite setup without recalculations.
- Reuse and durability: Metal templates with durable hubs and arms reduce replacement costs, especially on multiple projects.
- Ease of use: Features such as bubble levels, quick-connect adapters, and clear setup instructions can significantly cut installation time.
- Material quality: Aluminum and stainless-steel components resist corrosion and wear in outdoor environments.
- Accessory inclusions: Some kits include hardware, adapters, or leveling aids; verify what comes in the box to avoid additional purchases.
- Compatibility with forming tubes: Ensure the template supports the specific forming tube diameter and is compatible with your project’s anchor layout.
Choosing the right template depends on project scale, tube sizes, and required bolt configurations. For frequent installations across varying sizes, a reusable multi-size option may reduce tool inventory. If speed is critical, templates with integrated bubble levels and quick adapters can minimize setup time and human error.
