Best Ignition Transformers for Boilers You Can Trust in 2026
Finding a reliable ignition transformer is essential for consistent boiler ignition and safe operation. This guide highlights five well-matched options for common boiler systems, with practical notes on who each product suits best. Use the quick comparison table below to compare key points at a glance, then read each product section for details and cautions.
| Product | Best For | Key Feature |
|---|---|---|
| Allanson 1092-PF-G | Residential boilers needing 120V input and PF-G style interchangeability | 150VA, 25/20mA, 6V secondary option |
| 51838U / 746001 / 746004 (Beckett compatible) | Beckett burner systems and OEM replacements | Multiple OEM replacements; includes electrode springs, gasket |
| Navien Water Heater Transformer | Navien gas water heaters and oil burner setups | Reliable spark ignition for efficient combustion |
| Wayne M Ignition Transformer (Allanson) | Wayne-brand burners in residential boilers | 120V input; specific to Wayne burner compatibility |
| Weil Mclain Tune-Up Kit | QB180, QB300 series and similar boilers needing complete kit | Includes transformer, ignitor, electrode block |

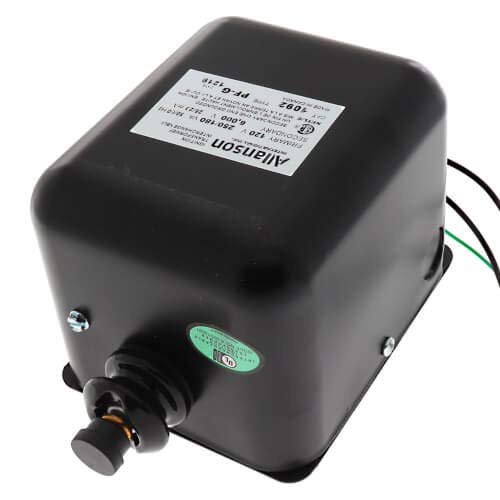

Allanson 1092-PF-G 000V Ignition Transformer
This Allanson model provides 120V primary operation with a 6V secondary option and outputs up to 150VA, designed for interchangeable PF-G configurations. Best for residential boilers needing a compact, compatible ignition transformer with straightforward replacement. Choose this if you use a PF-G style system and require reliable 25/20mA output.
Best for: Home heating systems using PF-G ignition transformers. Limitations: Confirm socket and mounting compatibility with your boiler before purchase.
Beckett-Compatible 51838U / 746001 / 746004
This transformer is designed as a Beckett replacement, compatible with multiple OEM numbers (51838U, 746001, 746004). It’s sized at roughly 4 1/8″ x 4″ and comes with ignition electrode springs, gasket, and instructions. Best for: Oil burner systems using Beckett ignition components. Limitation: Base plate is not included, so you’ll need the existing mounting solution or a compatible base plate.
Navien Water Heater Ignition Transformer
Navien-specific ignition transformer designed for reliable spark ignition in water heaters and oil burners. Best for: Navien systems requiring a dedicated transformer for consistent ignition and efficient combustion. Limitation: Intended for Navien-integrated setups; verify compatibility with non-Navien boilers before use.
Wayne M Ignition Transformer (Allanson)
Designed specifically for Wayne-brand burners, this transformer provides 120V input with compatibility to Wayne systems. Best for: Wayne-based boiler installations needing direct replacement parts. Limitation: Confirm model compatibility with your exact Wayne burner series to avoid fit issues.
Weil Mclain Complete Ignition Tune-Up Kit
This kit covers QB180, QB300 series and similar boilers with a 120V transformer, ignitor, gasket, electrode block, and leads. Best for: Boilers requiring a full tune-up kit to restore reliable ignition performance. Limitation: It includes multiple components; ensure you need a full kit rather than a single transformer replacement.
Buying Guide
What matters most when choosing an ignition transformer?
- Boiler compatibility: Verify the transformer’s voltage, current, and connector type matches your boiler model and brand.
- Output and size: Ensure VA rating and physical dimensions fit your burner compartment and wiring setup.
- OEM vs. aftermarket: OEM replacements (Beckett, Navien, Wayne) can reduce fit issues; aftermarket options may offer broader compatibility but verify mounting and electrode alignment.
- Ease of installation: Look for models advertised as straightforward to install or included gaskets and springs if you’re replacing an older unit.
- Maintenance implications: Some kits include electrode blocks or gaskets—these can simplify future service and improve reliability.
FAQ
- What is an ignition transformer used for in boilers?
It provides the electrical spark or high-voltage signal necessary to ignite the fuel-air mixture in the burner.
- Can I mix brands for ignition components?
Compatibility varies by model. Stick to components designed for your boiler’s brand or those clearly listed as compatible replacements.
- Do I need a full tune-up kit or just a transformer?
If ignition reliability is the issue, a transformer can help. If multiple ignition parts are aged, a full tune-up kit may be more effective.
- What should I check before purchasing?
Voltage input, secondary output, mounting type, and whether the unit is designed for your burner’s brand (e.g., Beckett, Wayne, Navien).
- Is replacement dangerous?
Power should be disconnected and the boiler unit must be de-energized before any replacement; if unsure, consult a licensed technician.
- Are there safety considerations with ignition parts?
Ignition components interact with fuel and flame sensing; improper installation can cause ignition failure or unsafe operation. Use manufacturer guidelines.
