Best Hot Surface Ignition Module Options for 24v/120v Systems
Hot surface ignition modules (HSI modules) are compact controls that drive and monitor the flame in gas furnaces and boilers. When selecting a replacement, compatibility, safety features, and electrical requirements matter. This guide reviews five widely available modules, highlighting their compatibility, safety notes, and key specs to help you compare options for residential heating systems in the United States.
Summary of chosen products:
- ROBOA Upgraded S8910U3000 Universal Hot Surface Ignition HIS Control Module
- Choice Manufactured Parts Universal Hot Surface Ignition Module, 120VAC
- Supplying Demand S8910U3000F Universal Hot Surface Ignition Module
- GENERIC Replacement for Honeywell S8910U1000 Universal HS Ignition Module
- HhMaintenance Replacement for Honeywell S8910U1000 Universal HS Ignition Module
- Honeywell S8910U3000 Hot Surface Ignition Module Universal
ROBOA Upgraded S8910U3000 Universal HS I Module
The ROBOA S8910U3000 is designed as a universal replacement for a broad range of hot surface ignition controls, including brands such as White-Rodgers, Robertshaw, and Resideo. It supports 120VAC operation and is compatible with hot surface igniters like Norton 201/271 models and equivalents. Users should observe strict safety guidelines: shut off power and gas before installation, follow the startup guide, keep the unit dry and away from water, avoid opening or cleaning the sealed module, and contact a professional if a gas smell is detected. This module emphasizes compatibility while prioritizing user safety during installation and maintenance.
Key considerations:
- Compatibility breadth reduces the need for multiple replacements in mixed-brand systems.
- Electrical rating aligns with common 120VAC igniter circuits.
- Advises thorough safety steps, especially around gas handling and power disconnection.
Choice Manufactured Parts Universal HS I Module
The Choice Manufactured Parts universal HS I module is marketed as a 120VAC replacement for the S8910U3000 series and similar units. It claims compatibility with Honeywell, White-Rodgers, Robertshaw, and Johnson ignition modules, providing a straightforward drop-in option for many systems. When evaluating this option, consider the reliability history of third-party modules and ensure your system’s wiring and igniter type match the module’s input/output expectations. Documentation emphasizes straightforward replacement with broad cross-brand support.
Key considerations:
- Broad cross-brand compatibility can simplify stocking and repairs.
- Manufacturer-specific notes and installation instructions should be followed to ensure proper ignition operation.
- Electrical compatibility with 120VAC igniters is common but verify your unit’s current draw.
Supplying Demand S8910U3000F HS I Module
The Supplying Demand S8910U3000F module is listed as a universal hot surface ignition module suitable for 120VAC igniters. It notes alternate part numbers, suggesting cross-compatibility with multiple system configurations. Technical details include input voltage ranges (120/240 VAC and 24 VAC 50/60 Hz) and a maximum current draw specification for the ignition circuit. It also emphasizes safety steps to disconnect power and gas before servicing. This option may suit homeowners seeking a widely compatible alternative with clear electrical parameters.
Key considerations:
- Compatibility with both 120VAC ignites and multi-voltage control environments.
- Explicit max current and control circuit limits help ensure safe operation.
- Follow safety precautions to avoid gas leaks or electrical hazards during servicing.
Replacement for Honeywell S8910U1000 OEM
This replacement is marketed as a universal S8910U1000 module, positioned as an OEM-style replacement. It notes a one-year guarantee and indicates the part may have been inspected by a professional installer from a functioning system. This type of listing often aims to provide a familiar form-fit for Honeywell-style systems, reducing the risk of misfit issues for homeowners replacing a failed unit. The emphasis on reusing a previously functioning condition can appeal to those seeking a close-to-original part.
Key considerations:
- OEM-style compatibility can ease installation for specific Honeywell-based setups.
- A one-year guarantee provides a standard warranty window for consumer confidence.
- Condition notes (removed and inspected) imply tested usability but verify electrical specs match your system.

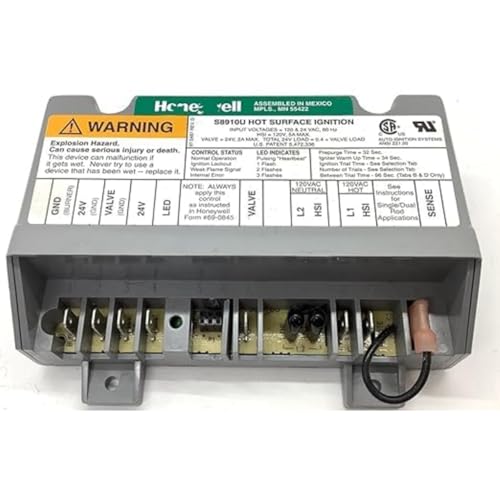

Replacement for Honeywell S8910U1000 OEM
The HhMaintenance listing presents another S8910U1000 replacement option. It highlights similar assurances—one-year guarantee and notes about removal and inspection by a professional installer from a functioning system. The language suggests a ready-to-install, label-compatible module for Honeywell-based HSIs. This option may fit users who want a familiar design and a warranty-backed replacement that aligns with existing system configurations.
Key considerations:
- OEM-aligned form factor can streamline replacement in Honeywell-centric systems.
- One-year guarantee supports post-installation performance expectations.
- Ensure the current draw and heater type align with your furnace or boiler model.
Honeywell S8910U3000 Universal HS I Module
The Honeywell S8910U3000 is a widely recognized model that replaces many White-Rodgers, Robertshaw, and Honeywell HSIs. It supports 120 VAC up to 5.0A for the surface igniter (Norton 201/271 or equivalents) and accommodates both local and remote flame-sensing configurations. This option is a direct reference point for households seeking a commonly supported, original-brand module with established compatibility across a range of furnace and boiler configurations.
Key considerations:
- Proven compatibility with multiple major brands can simplify parts stocking.
- Supports standard 120 VAC igniter loads and dual-sense flame detection configurations.
- Follow Honeywell’s official guidelines for safe removal, installation, and startup to avoid ignition issues.
Buying Guide: What to Consider When Choosing a Hot Surface Ignition Module
When selecting an HS I module, several factors determine long-term performance and safety. Consider the following perspectives to balance reliability, compatibility, and maintenance needs.
- Compatibility and cross-brand support: A universal module reduces stocking complexity and can simplify repairs when multiple brands exist on a single system. Verify part numbers against your furnace’s service manual to prevent misfit connections.
- Voltage and current requirements: Most residential HSIs operate at 120 VAC with current draw typically under a few amps. Check the igniter type and the control module’s maximum current rating to prevent overheating or nuisance trips.
- Igniter type and flame sensing: Some modules support single-rod or dual-rod flame sensing configurations. Confirm whether your system uses local rectification or remote sensing and choose a module that matches that setup.
- Safety and installation guidelines: Reliable modules emphasize disconnecting power and gas before servicing, keeping the equipment dry, and avoiding tampering with sealed housings. Follow the startup or installation guide precisely to reduce the risk of gas leaks or ignition failures.
- Warranty and condition disclosures: OEM-style replacements often come with warranties, while third-party units may present different guarantees. Consider whether the listing notes inspection history or a return policy that aligns with your needs.
- System age and compatibility risk: Older furnaces may rely on legacy wiring and sensing methods. If in doubt, consult a professional to confirm the module’s compatibility with your specific burner and sensing configuration.
- Replacement strategy: If a current module is failing, assess whether replacing with a universal module or a brand-specific unit minimizes future service calls. In some cases, staying with the original brand reduces risk of mismatched signals.
