Best High Magnetic Circuit Breakers for Solar and Home Electrical Systems
When selecting a high-magnetic or high-magnetic-arc suppressing circuit breaker, you want reliability, fast response to surges, and compatibility with your installation. This article highlights five notable options, spanning DC and AC applications, to help you compare performance, mounting, and trip characteristics for solar, residential, and small commercial setups. The listed products emphasize magnetic trip mechanisms designed to improve arc extinguishing and surge protection in demanding environments.
Summary of Selected Products
| Product | Brand | Voltage / Type | Current Rating | Mounting / Style |
|---|---|---|---|---|
| Chtaixi DC Miniature Circuit Breaker, 2 Pole 500V 100 A | CHTAIXI | DC 500V | 100 A | DIN Rail Mount, 2P |
| BRH230 Plug-ON Circuit Breaker – Type BR | Eaton | AC 120/240V | Not Specified | Plug-On, 1-Inch |
| Chtaixi DC Miniature Circuit Breaker, 2 Pole 500V 125 A | CHTAIXI | DC 500V | 125 A | DIN Rail Mount, 2P |
| ABB Q-Line THQL2130 | ABB | 120/240V AC | 30 A | Two-Pole |
| FalconSupply Square D HOM120 (2-Pack) | FalconSupply | 120V AC | 20 A | Plug-On for Homeline |
Chtaixi DC Miniature Circuit Breaker, 2 Pole 500V 100A
The CHTAIXI 2-Pole DC Miniature Circuit Breaker is designed for solar PV systems and other DC distribution schemes. It provides overload and short-circuit protection with a thermal-magnetic trip, and its arc-extinguishing magnetic system supports quicker interruption of DC arcs. Silver alloy contacts and a flame-retardant shell help ensure durable performance in constrained electrical panels. This model is suitable for DIN rail mounting in DC circuits up to 500V with a 100 A rating, making it a practical choice for high-current DC disconnects in solar arrays and hybrid systems.
Key features: overload/short-circuit protection, magnetic arc extinguishing assist, silver contacts, flame-retardant housing, color indicator for quick status checks. This device emphasizes compact, DIN-rail–ready installation for modern energy systems.

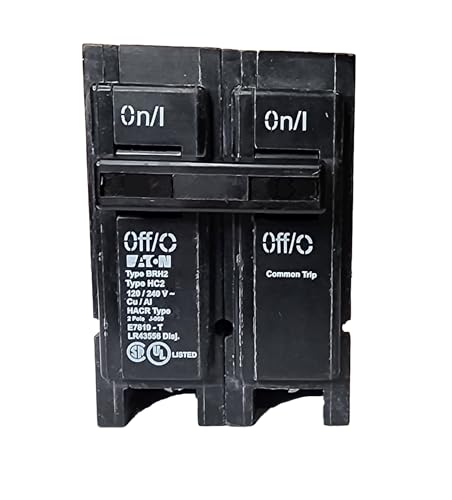

BRH230 Plug-On High-Magnetic Circuit Breaker (Type BR)
The Eaton BRH230 is a plug-on circuit breaker designed for easy installation in compatible panels. While product details emphasize its high-magnetic characteristics, this unit is positioned for quick replacement or retrofitting in residential or light commercial load centers. Its plug-on form factor supports efficient servicing and reliable, fast-acting protection against overloads and short circuits. It is suitable for standard electrical panel configurations where a robust high-magnetic interrupting mechanism is desired.
Features include a straightforward plug-on design and compatibility with standard BR-type spaces. The device aims to deliver dependable protection while simplifying installation in existing electrical infrastructure.
Chtaixi DC Miniature Circuit Breaker, 2 Pole 500V 125A
This 2-pole, 125 A DC miniature circuit breaker from CHTAIXI is intended for solar PV systems and other high-current DC installations. It mirrors the 2P 100 A model in stating a thermal-magnetic trip mechanism and arc-extinguishing magnetic assistance, with durable silver alloy contacts and a flame-retardant shell. DIN rail mounting keeps installation clean and organized in compact DC distribution panels, and the device’s indicators aid operators in quickly verifying status during maintenance intervals.
Consider this option when you need higher current handling in a DC line while maintaining a compact footprint suitable for modern solar charge controllers and battery storage setups.
ABB Q-Line THQL2130 Two-Pole Circuit Breaker
The ABB Q-Line THQL2130 is a compact, two-pole circuit breaker rated for 120/240V AC with a 30 A capacity. It features a thermal-magnetic trip mechanism designed to handle overloads and short circuits with reliable performance in residential and light commercial panels. The THQL series is known for solid build quality and straightforward installation in THQL load centers, offering durable protection and space-efficient design for modern electrical installations.
This model emphasizes safety, durability, and ease of installation, making it a practical choice for mainstream electrical panels and service upgrades where predictable electrical protection is essential.
FalconSupply Square D HOM120 Circuit Breaker Kit (2-Pack)
This HOM120 kit contains two genuine Square D Homeline 20-amp single-pole circuit breakers. They feature a robust thermal-magnetic mechanism designed for reliable dual-action protection, suitable for 120V circuits in Homeline load centers. The kit is a practical option for replacing worn breakers or stocking up for panel maintenance. It is specifically compatible with Homeline panels and not interchangeable with QO-series panels, ensuring proper fit and electrical characteristics.
With a focus on compatibility, this kit provides a straightforward path to ensure safe operation for common household circuits such as kitchens, laundry rooms, and receptacle outlets that require consistent 20 A protection.
Chtaixi DC Miniature Circuit Breaker, 1 Pole 250V 125A
The single-pole DC breaker from CHTAIXI is designed for 250V DC circuits with a 125 A rating. Like other CHTAIXI models, it features a thermal-magnetic trip and arc-extinguishing assistance for improved DC protection. This unit is suitable for solar PV strings, DC distribution panels, or other high-current DC applications where space and mounting efficiency are critical. The DIN rail mount keeps it organized in compact control cabinets or solar enclosures, while the color indicator simplifies status checks during maintenance rounds.
Choose this model when you need a reliable single-pole high-current DC disconnect for solar or telecom DC distribution, with a compact footprint and straightforward DIN rail integration.
Buying Guide: Key Considerations for High Magnetic Circuit Breakers
- Voltage and current ratings: Match the device to your system’s voltage (DC or AC) and the expected load current. Higher-current DC breakers must handle sustained DC arcs more effectively, so magnetic trip and arc-quenching features are especially important in solar applications.
- Trip mechanism: Thermal-magnetic trip offers protection against both overload and short circuits. Magnetic-only or stronger magnetic components can improve response time for fast interrupting in high-energy environments.
- DC vs AC performance: DC circuits require different arc-quenching behavior than AC circuits; ensure the breaker is rated for DC if used in solar or DC distribution panels.
- Mounting and form factor: DIN rail mounting is common in control cabinets, while plug-on or panel-mounted breakers suit different panel architectures. Confirm compatibility with your enclosure and bus bars.
- Pole configuration: 1P, 2P, or 3P configurations determine how many live conductors are protected and how they’re arranged in the panel. Choose based on the circuit layout and whether you need simple branch protection or multi-pole coordination.
- Environmental considerations: Look for flame-retardant housings and contact materials (e.g., silver alloy) that withstand heat, moisture, and oxidation in commercial or outdoor-friendly installations.
- Brand and compatibility: Reputable brands often provide clearer compatibility information for load centers and panels. Verify that the breaker type matches your panel model (for example, Homeline vs. Q-Line, or BR-type compatibility).
- Maintenance and replacement: Keep OEM-compatible breakers on hand to avoid compatibility issues during replacements. Genuine OEM parts typically offer the best fit and performance.
- Safety standards: Confirm UL or equivalent safety certifications and ensure the device meets regional electrical codes for your installation.
- Special considerations for solar: For DC solar systems, prioritize arc quenching capability and thermal stability to prevent nuisance trips during varying irradiance and temperature conditions.
