Best Hall Effect Current Transducers for Accurate Power Monitoring
Current transducers based on Hall effect are ideal for non-contact, isolation-safe current measurement across a wide range. This guide highlights five reliable options suited for industrial, lab, or DIY projects. Best for different use cases: from high-current industrial sensing to compact, Arduino-friendly sensing modules. Below is a quick comparison table of the selected products to help you decide at a glance.
| Product | Best For | Key Benefit |
|---|---|---|
| Roventisys Hall Effect Current Transducer (100A, 2.5V/2V) | Industrial sensing, installation-friendly | Split-core design, high 0.5 class accuracy |
| SHIHUANI Hall Current Transducer (200A) | High-current monitoring | Through-heart design, safe isolation |
| PXFOCOYD Current Transmitter (5A-100A, 0-10V/4-20mA, 22mm) | Processed output for PLC/SCADA | Stable, integrated output signal |
| FEARLIE AC Current Transmitter (0-50A, 4-20mA/DC output) | Industrial automation remote sensing | Wide selectable current range, strong isolation |
| WayinTop ACS712 Hall Effect Sensor (30A) | DIY projects, microcontroller integration | Bi-directional sensing, Arduino-friendly |
Roventisys Hall Effect Current Transducer (100A)
The Roventisys current transducer uses a Hall effect sensor with a split-core design for easy installation without disconnecting the circuit. It targets continuous DC current measurement with high accuracy. The model accommodates a broad input range typical in industrial environments, making it suitable for feeders, motors, and power distribution panels. Best for technicians who need a non-invasive clamp sensor that can be installed quickly in live systems.
Best for: Industrial maintenance teams and control engineers needing reliable, non-contact current monitoring in existing setups.
Caution: Confirm the core size and mounting compatibility with your bus or conductor before purchase to avoid fit issues in tight panels.
SHIHUANI Hall Current Transducer (200A)
This transducer is designed for higher current monitoring with a through-heart construction and safe input-output isolation. It provides straightforward installation and stable performance for AC current monitoring, protection against overload, and current surveillance in larger systems. It suits facilities needing robust high-current sensing and fast response in protective relays or motor control loops.
Best for: Facilities and labs that require accurate high-current detection with reliable isolation for safety and uptime.
Caution: Check the outer housing material and mounting style to ensure compatibility with your enclosure and wiring standards.

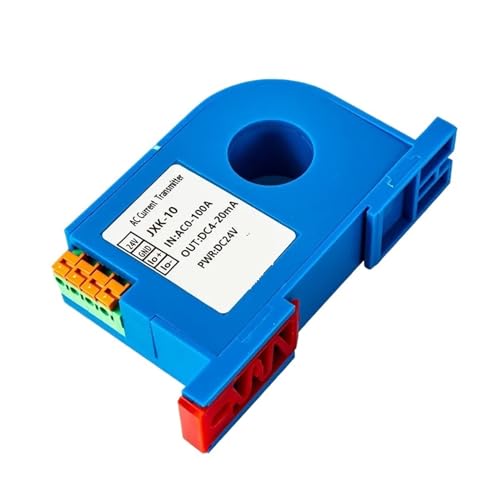

PXFOCOYD Current Transmitter (5A-100A, 0-10V/4-20mA)
The PXFOCOYD device translates current through a stable output signal suitable for monitoring and control systems. It emphasizes simple structure, high integration, and robust temperature characteristics. The product is designed to deliver accurate measurements over time, making it well-suited for PLC or SCADA systems requiring DC 4-20 mA or 0-10 V feedback from AC or DC current inputs.
Best for: Industrial automation setups where the measurement must be integrated directly into a control loop with standard analog outputs.
Caution: Ensure the corresponding input range and output configuration match your existing control equipment to avoid misreadings.
Roventisys Hall Effect Current Transducer (150A)
This is another Roventisys model emphasizing the split-core design and wide measurement range, extending beyond the 100 A variant to cover larger industrial feeders or motor circuits. It offers the same 0.5 class accuracy and non-invasive installation benefits.
Best for: Projects requiring a mid-to-high current clamp with quick installation and reliable accuracy in industrial environments.
Caution: If you already use the 100 A variant, verify the core diameter and data outputs to ensure consistency across devices in a single system.
HanOaki Hall Effect Sensor (2-Pack, 35A/70A/100A)
This two-pack sensor uses Hall-effect technology with galvanic isolation up to 1.5 kV, offering linear current readings for multiple ranges. It is compatible with microcontroller projects and industrial controllers alike, supporting quick integration into educational, prototype, or lightweight industrial monitoring tasks. Best for: Labs and hobbyists needing isolated, measurable current data with easy Arduino/RPi integration.
Caution: Check the voltage supply compatibility with your controller (3–5 V logic) to ensure proper signal interpretation without scale errors.

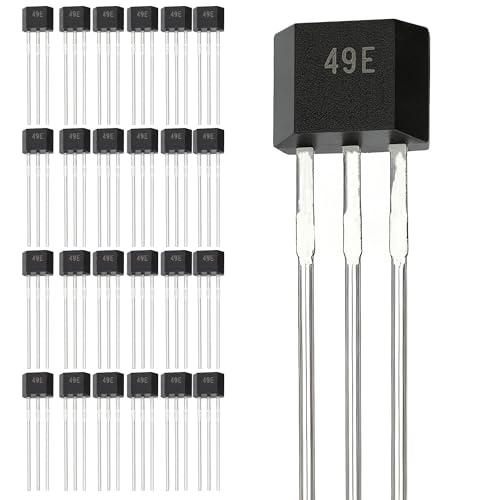

LinkWheres Linear Hall Effect Sensor (49E/SS49E)
The LinkWheres sensor provides a linear analog output proportional to magnetic flux, ideal for throttles, motor speed control, and current sensing. It is designed for 3–6 V operation, compact TO-92S packaging, and easy calibration. Best for: Small-scale projects and compact sensing tasks where an analog Hall output is preferred for straightforward processing.
Caution: This sensor is best used where a linear output is required; it may not suit very high current scenarios without proper scaling and interface design.
WayinTop ACS712 Hall Effect Sensor (30A)
The WayinTop ACS712 module integrates a Hall effect sensor capable of measuring bidirectional current up to 30 A with an analog output of 66 mV per A. It is suitable for DIY projects and educational experiments with Arduino or similar microcontrollers. Best for: Beginners and hobbyists who want a straightforward current sensor with an easy-to-use interface.
Caution: The 30 A range may not cover high-current loads in industrial settings; consider higher-range alternatives if your needs exceed 30 A.
Buying Guide
What should you consider when choosing a Hall effect current transducer?
- Current range: Match the expected load current to avoid saturating the sensor. Split-core clamps are convenient for retrofit installations, while fixed cores may be smaller but require circuit disconnection.
- Output type: Analog 4-20 mA or 0-10 V is common for PLCs and data logging. Some modules offer bi-directional analog outputs ideal for control loops and real-time monitoring.
- Isolation: Hall sensors provide galvanic isolation between input and output. Check isolation voltage to protect controllers in high-voltage environments.
- Mounting and form factor: Consider panel space, bus bar thickness, and enclosure compatibility. Split-core designs simplify field installation.
- Accuracy and stability: Look for specified accuracy class (e.g., 0.5) and temperature drift data to ensure reliability in varying conditions.
- Response time: Fast transients require sensors with quick response to protect equipment and enable prompt control actions.
- Environment and safety: Self-extinguishing casings and robust construction improve durability in industrial settings.
Practical comparison questions
- Do you need a non-invasive, clamp-style sensor for retrofit installations? A split-core Roventisys or SHIHUANI model is often best.
- Will you interface with a PLC or SCADA system? Look for 4-20 mA or 0-10 V output options like PXFOCOYD or FEARLIE.
- Are you working in a lab or hobby project with a microcontroller? The WayinTop ACS712 and LinkWheres 49E offer beginner-friendly analog outputs.
- Is high-current monitoring essential? Choose SHIHUANI or Roventisys models designed for higher ranges.
- Do you require isolation between measurement and control electronics? Confirm the product’s isolation rating to ensure safety margins.
FAQ
- What is a Hall effect current transducer? A device that measures current by detecting magnetic fields generated by the conductor, providing electrical isolation and non-contact sensing.
- What is a split-core current sensor? A clamp-style sensor with a hinge that allows installation around an existing conductor without undoing connections.
- What output formats are common? Many provide 4-20 mA or 0-10 V; some modules also offer voltage or PWM outputs for specific systems.
- Which sensor is best for Arduino projects? Modules with easy-to-read analog outputs and a low voltage supply, such as WayinTop ACS712 or LinkWheres 49E, are well-suited for beginners.
- Can these sensors measure AC and DC? Some models are designed for DC, others handle both AC and DC depending on the sensor type and signal conditioning.
- Are there safety concerns with high-current sensors? Yes—ensure proper isolation ratings, correct wiring, and enclosure protection to prevent electrical hazards.
