Best Grounding Bar Options for Sub Panels That Meet Modern Wiring Standards
Finding the right grounding bar for a sub panel is essential for safety and system reliability. The following selections prioritize copper conductivity, sturdy construction, and easy installation, making them suitable for data centers, electrical cabinets, and residential sub panels. Each product below includes key features to help you compare options at a glance.
| Product | Position | Material | Notes |
|---|---|---|---|
| HIBUMFX 19 Inch Bus Bar Kit | Single kit | C110 Copper | Includes 4 ft grounding cable, screws |
| HUAREW Grounding Bus Bar 10 Positions | 10 positions | Brass | Pack of 4 |
| Tugermoola 4PCS Ground Bus Bar 8 Positions | 8 positions each | Brass with insulating base | 4 pieces |
| XINYIELE Outdoor Circuit Breaker Box Kit | Bus bars included | Copper | Indoor/Outdoor capable housing |
| caflower 4 Pack 12 Position Grounding Bar | 12 positions | Brass with green insulated base | Includes screws |
The products listed below are selected for reliability, wide compatibility with sub panels, and clear installation guidance. Each section follows a consistent format to help you assess the best grounding bar for your setup.
HIBUMFX 19 Inch Copper Ground Bar Kit
This HIBUMFX kit centers on a robust 19-inch copper grounding bus bar, crafted from C110 copper for high conductivity and durability. The kit includes a 4-foot 10 AWG tinned grounding cable and a complete hardware set with 38 pre-installed screws plus mounting screws. Dimensions are 3/16″ x 1.2″ x 19″, making it suitable for standard data rack, cabinet, and enclosure installations. The combination of copper material and comprehensive hardware support ensures a reliable ground path for sub panels in demanding environments.
Why choose this kit? It provides a ready-to-install solution with a long grounding cable, reducing the need for additional wiring runs. The copper construction offers superior conductivity and corrosion resistance, which is beneficial for both indoor and more challenging electrical environments. The included screws simplify mounting in typical 19-inch rack setups, helping accelerate installation and maintenance tasks.
HUAREW 10-Position Grounding Bus Bar (Pack of 4)
The HUAREW grounding bus bars provide 10 positions per unit, designed for flexible distribution in panels and cabinets. Each bus bar uses M4 screws and is sold in a pack of four. This arrangement supports larger installations or parallel grounding paths, which can be useful when coordinating multiple circuits or sub panels. The product description notes suitability for marine and industrial applications, making it adaptable to various environments beyond typical residential use.
Key considerations: brass construction offers solid conductivity and corrosion resistance, and the ability to select the number of screws lets you tailor each bar to the wiring density required. The practicality of a pack of four makes it convenient for bigger projects or spare parts inventory. Users should verify compatibility with their enclosure’s mounting pattern and ensure screw sizing aligns with their wires and lugs.
Tugermoola 4Pcs Grounding Bus Bar, 8-Position
This Tugermoola set includes four 8-position grounding bus bars. Each bar uses M4 screws and features an insulating base to reduce the risk of short circuits while wiring remains accessible and straightforward. Rated current is up to 40A, suitable for many sub panel grounding needs in residential or light commercial systems. The dual-screw-hole design supports quick wiring and reliable terminal connections, and the insulating base helps prevent accidental contact with live conductors during maintenance.
Why it matters: multiple bars in a single order offer flexibility for distributing grounds across several panels or modules. The included insulating base reduces stray conduction paths and helps maintain a cleaner, safer installation. When using brass bus bars, ensure compatible lugs and screws are used to maintain solid electrical contact and longevity of the grounding network.

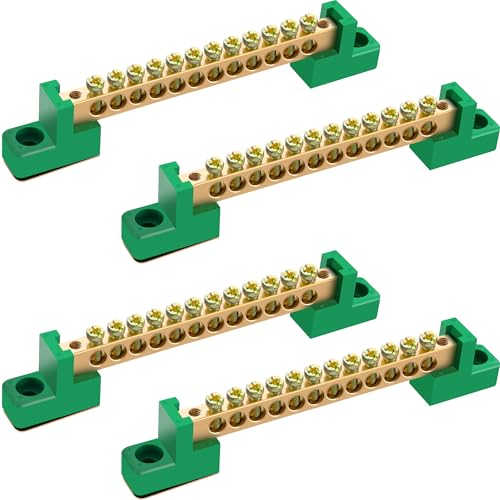

caflower 4 Pack 12-Position Grounding Bus Bar
The caflower kit offers four 12-position grounding bars, each with a green insulated base for quick identification of grounding paths. The brass construction provides strong conductivity and corrosion resistance, suitable for distribution boxes and sub panel grounding networks in both indoor and outdoor environments. The included screws simplify mounting and ensure a secure terminal connection across multiple circuits. This package is well-suited for larger panels requiring multiple ground points with a single purchase.
Considerations: a green insulating base clearly marks these as grounding components, helping prevent wiring mistakes. The heavy-duty brass material supports reliable long-term operation, but it’s important to check compatibility with your enclosure’s slotting, terminal sizes, and available space. The flat, wide bus bars facilitate straightforward wiring and terminate well with standard screws.
Buying Guide: Key Considerations for Sub Panel Grounding Bars
- Material and conductivity: Copper (including C110 copper) generally delivers superior conductivity and durability compared with brass in many installations. Insulating bases help prevent accidental shorts, especially in crowded panels.
- Position count and modularity: Choose bars that match the number of grounding conductors you plan to connect. Packs with multiple bars enable distribution across several sub panels or zones.
- Hardware and installation compatibility: Verify screw size (e.g., M4), mounting hole spacing, and whether the included screws are suitable for your bus bars and enclosure.
- Environmental suitability: Outdoor or harsh environments benefit from corrosion-resistant materials and coatings, as well as enclosures that protect bus bars from dust, moisture, and debris.
- Safety features: Insulated bases and clearly color-coded bases help prevent miswiring and improve overall safety during installation and maintenance.
- Code compliance: Ensure the grounding bar assembly aligns with local electrical codes and the National Electrical Code (NEC) guidelines for sub panels, ground buses, and bonding requirements.
- Future expandability: If you anticipate expanding the sub panel, consider modular bars or additional bars in the same family to maintain consistency and simplify upgrades.
- Maintenance and accessibility: Choose designs that allow easy inspection, clean connections, and straightforward re-termination if conductors or screws require tightening over time.
When evaluating options, compare the total number of grounding positions, material quality, and whether the kit includes a complete wiring harness (cable and screws). For larger installations, consider multiple bars with a common ground bus to simplify routing and reduce clutter while preserving a low-impedance ground path.
