Best Ground Fault Monitoring Relays for Safe Electrical Protection
Ground fault monitoring relays help protect people and equipment by detecting leakage currents and triggering protective actions. This guide targets contractors, facility managers, and DIY enthusiasts seeking reliable, easy-to-integrate devices. The top picks below cover current sensing, internal transformers, residual current protection, and phase monitoring to suit a range of electrical environments. A quick comparison table follows to help you decide at a glance.
| Product | Best For | Key Benefit | Limitations |
|---|---|---|---|
| FEARLIE F006 | Industrial monitoring systems | High-precision current sensing with fast response | 0.2-50A range may be overkill for small circuits |
| CR Magnetics CR7310-EH-24D-110-X-CD-ELR-I | Systems needing internal transformer isolation | Reliable ground fault sensing with integrated isolation | Requires proper wiring to maintain isolation |
| EOCR-DZ EMPR-DZ | General ground fault protection | Voltage monitoring focused relay family | Basic feature set; may need companion devices for full protection |
| ZEEGII ASJ10-LD1A | Safety-critical leakage protection | Leakage-based protection with added circuit safeguards | Function scope depends on the specific model series |
| DZUHLLUU 3 Phase Voltage Monitoring Relay | Three-phase systems needing phase fault awareness | Balanced monitoring across three phases | Phase-centric by design; may require additional ground-fault modules |
FEARLIE F006 Current Sensing Relay
The FEARLIE F006 is a normally open AC current sensing switch with a wide 0.2-50A monitoring range and solid-state output. It boasts measurement accuracy better than 1% and supports various waveforms, making it suitable for complex electrical environments. Best for industrial setups needing precise current monitoring to trigger protective actions quickly. Limitation: the 50A upper range may be higher than needed for small residential circuits, potentially adding unnecessary cost or integration steps.
CR Magnetics CR7310-EH-24D-110-X-CD-ELR-I Ground Fault Sensor Relay
This relay uses an internal transformer to sense ground faults with electrical isolation between circuits. It is well-suited for applications that require robust isolation and reliable fault detection in control panels. Best for facilities that require a compact module within an electrical panel. Limitation: correct wiring is essential to preserve isolation and accurate sensing, so professional installation is advisable.
EOCR-DZ EMPR-DZ Electric Ground Fault Relay
The EOCR-DZ family focuses on voltage monitoring relays with ground fault protection capabilities. It is suitable for systems where continuous voltage oversight is required to detect abnormal conditions. Best for standard protection tasks in electrical distribution boards. Limitation: features and integration depth vary by model, so verify compatibility with existing protection schemes.

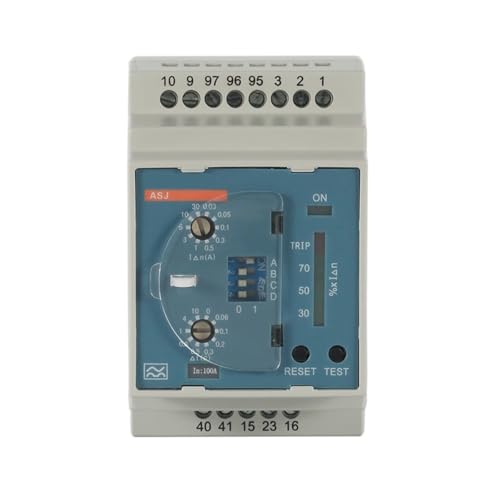

ZEEGII ASJ10-LD1A Residual Current Relay
Residual current relays provide leakage-based protection by cutting power when an imbalance is detected. They’re essential for protecting people and equipment from leakage hazards. Best for circuits where continuous leakage monitoring is a priority. Limitation: leakage-only protection may require additional fault escalation in highly critical systems.
DZUHLLUU 3 Phase Voltage Monitoring Relay
This three-phase voltage monitoring relay provides sequence-aware protection, good for balanced loads and phase sequencing checks. Best for industrial or commercial settings with three-phase power where phase integrity is critical. Limitation: primarily voltage-focused; for comprehensive protection, pairing with a ground fault device can be necessary.
Buying Guide
Key considerations when choosing a ground fault monitoring relay:
- Protection type: Do you need current sensing, residual leakage protection, internal transformer isolation, or three-phase monitoring? Match the device to your system’s fault scenarios.
- Voltage and current ranges: Ensure the relay supports your line voltage and expected fault currents. Overly broad ranges can complicate settings, while too-narrow ranges may miss faults.
- Isolation and safety: Internal transformers and isolation improve safety in panel wiring. Confirm compatibility with your control circuits and enclosures.
- Installation and wiring: Some relays require precise wiring, especially for isolation and accurate sensing. Professional installation is advised for complex setups.
- Display and diagnostics: Units with LCD displays or clear fault indicators simplify commissioning and ongoing monitoring.
- Integration with existing protection: Consider how the relay fits with other protective devices like circuit breakers and contactors.
- Maintenance and reliability: Look for solid-state outputs, low drift, and robust construction for industrial environments.
FAQ
- What is a ground fault monitoring relay? It is a device that detects leakage currents and initiates protective actions to prevent electric shock and equipment damage.
- Do I need an internal transformer type relay? Internal transformers improve isolation and may simplify wiring in panel installations, especially in multi-circuit setups.
- Can these relays monitor three-phase systems? Yes, several models support three-phase monitoring and sequence protection for balanced loads.
- Is LCD feedback important? An LCD display helps with quick parameter checks and fault statuses during commissioning and maintenance.
- What is leakage protection vs. current sensing? Leakage protection detects imbalance between live conductors and neutral, while current sensing monitors absolute current levels for timely fault action.
- Should I pair a ground fault relay with another protection device? In many cases, yes; combining with breakers or contactors provides layered protection.
