Best Cam Lock Panel Generators for Efficient Power Distribution
Answering the buyer’s search for a reliable generator cam lock panel, these options emphasize quick installation, compact design, and versatile compatibility. The top picks fit 400 Amp, 3-Phase configurations and are ideal for temporary power setups, construction sites, or field service. Best for contractors who need pre-assembled panels, space efficiency, and universal Series 16 compatibility. The following five selections balance ease of use with robust connectivity, while noting practical limitations when applicable.
| Product | Voltage | Type | Best For |
|---|---|---|---|
| Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 120/208V, Female, 90°, NEMA 3R | 120/208V | Female | Temporary power layouts with pre-assembled panels |
| Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 120/208V, Male, 90°, Series 16 | 120/208V | Male | High-density, quick-install panels |
| Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 120/208V, Female, 90°, Clear Snap-Back | 120/208V | Female | Durable snap-back configuration for outdoor use |
| Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 277/480V, Female, 90°, NEMA 3R Caps | 277/480V | Female | Higher voltage temporary power projects |
| Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 277/480V, Male, 90°, NEMA 3R Snap-Back | 277/480V | Male | Compact, versatile panel for complex sites |
Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 120/208V, Female
Key features and suitability
Pre-assembled panels save time by eliminating individual hole cuts for panel mounts. They offer a space-efficient high-density layout and are designed for quick deployment in temporary power setups. Best for electrical contractors needing ready-to-install solutions with universal Series 16 compatibility for diverse devices.
Best for: field electricians and event power planners who prioritize fast installation and reliable connections. Limitation: fixed configuration may reduce customization for unique site layouts.
Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 120/208V, Male
Key features and suitability
Shipped fully pre-assembled to reduce labor time and avoid on-site hole cutting. High-density configuration enables more connections per square foot, supporting compact work zones. Choose this for sites needing rapid deployment with robust connection density.
Best for: installers who value streamlined assembly and tight space usage. Limitation: like all pre-assembled panels, may require field adjustments for unusual configurations.
Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 120/208V, Female, 90°, NEMA 3R Caps and Lanyards
Key features and suitability
Includes NEMA 3R caps and lanyards for outdoor or semi-outdoor use, extending environmental protection. Best for temporary outdoor installations where weather sealing is beneficial. Data indicates standard panel configurations support common temporary power needs.
Best for: outdoor events or construction sites requiring extra weather protection. Limitation: caps and lanyards add components that may require inspection for secure fit after transport.
Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 277/480V, Female
Key features and suitability
Designed for higher voltage temporary power applications with a 277/480V configuration. Best for environments requiring higher voltage distribution in a compact panel. Limitation: not suitable for 120/208V circuits, so selection must align with site needs.
Best for: sites with higher power requirements and compatible devices. Avoid this if your system runs primarily at 120/208V.

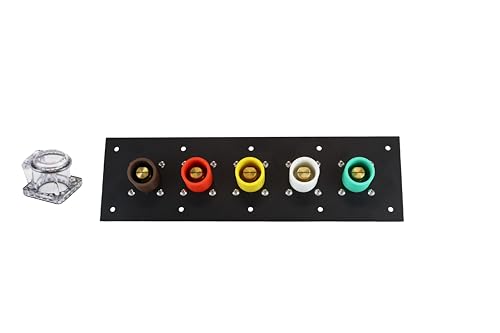

Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 277/480V, Male
Key features and suitability
Male configuration paired with snap-back design supports quick connections and solid retention. Best for teams needing a compact and versatile male panel for high-voltage applications. Limitation: ensure compatibility with any female connectors in the field to prevent misalignment.
Best for: technicians who prioritize fast, secure mating and modular setup. Choose this if your site frequently changes device types.
Buying Guide
What should I consider when choosing a cam lock panel?
- Voltage and phase compatibility: Ensure the panel voltage (120/208V or 277/480V) matches the site requirements and the devices you plan to connect.
- Connector type: Decide between male or female configurations based on the hard-wiring or plug-in devices used on site.
- Panel density: High-density panels save space but may limit customization; balance space needs with connection requirements.
- Environmental protection: Consider NEMA 3R or weather-protective features for outdoor installations.
- Ease of installation: Pre-assembled panels reduce labor and errors; verify if local installers can adjust configurations if needed.
How do I compare cam lock panels?
- Best for quick installs: Look for pre-assembled, plug-and-play panels.
- Better for high-density needs: Choose panels advertised as high-density with more connections per square foot.
- Choose this if you need weather protection: Prioritize models with NEMA 3R caps or sealants.
What are common limitations to expect?
- Fixed configurations may limit on-site customization without rework.
- Higher voltage panels require compatible devices and safety measures.
- Outdoor-rated panels may need periodic inspection for caps/lanyards integrity.
Maintenance and safety tips
- Inspect connections for tightness and corrosion before each deployment.
- Keep caps and lanyards secure to avoid environmental ingress.
- Ensure proper lockout/tagout procedures during installation and maintenance.
FAQ
- Q: Are these CAM lock panels compatible with other brands? A: Yes, Series 16 panels are described as universally compatible with Series 16 devices from other brands in the product notes.
- Q: Can I install these panels outdoors? A: Some models include NEMA 3R caps and weather-protective features; verify model-specific outdoor suitability.
- Q: Do the panels require on-site hole cutting? A: No, these panels are shipped pre-assembled to reduce labor time.
- Q: What voltage options exist for these panels? A: The selections cover 120/208V and 277/480V configurations, depending on the model.
- Q: What is the advantage of a high-density CAM panel? A: Higher density allows more connections per square foot, saving space on crowded sites.
- Q: What should I avoid when selecting a CAM lock panel? A: Avoid models that do not match your site voltage or that lack suitable environmental protection for outdoor use.
