Best Explosion-Proof Float Switches for Hazardous Environments
Finding a reliable explosion-proof float switch is essential for safeguarding industrial processes in volatile atmospheres. This guide highlights five top options, detailing construction, mounting, and sensing capabilities to help ensure safe, accurate liquid level monitoring in challenging conditions. Each product is evaluated for robustness, installation ease, and suitability for hazardous environments.
Summary Of Selected Products
- Explosion-Proof Float Level Switch, Cast Aluminum, Blue, Flanged Mounting, Mechanical Flow Switch — Generic
- Murphy by Enovation Controls EL150EX Liquid Level Swichgage, Explosion Proof — Murphy by Enovation Controls
- ZKRZCGXZ Flange Float Switch, Explosion-Proof Liquid Level Controller — ZKRZCGXZ
- DXLBYJZKC 1pcs Float Level Switch (Explosion Proof) — DXLBYJZKC
- Water Level Control, Liquid Level Switch, Float Switch Cable, High Temperature — KKGCDVZKL
Explosion-Proof Float Level Switch, Cast Aluminum
This explosion-proof float level switch features a cast aluminum blue enclosure rated for hazardous atmospheres. Its mechanical float level sensing relies on a spring-loaded plunger actuator, offering dependable liquid level detection and flow monitoring. The flanged mounting design provides a secure installation on tanks, vessels, and process equipment, making it well-suited for industrial settings where ignition protection and robust performance are critical.
Key considerations include enclosure rating for the specific hazard class, compatibility with the tank material, and the reliability of the spring-loaded actuator in challenging liquids. This option emphasizes durable construction and straightforward installation via flange mounting, which can simplify retrofits and new builds in chemical, petrochemical, or water treatment environments.
Murphy EL150EX Liquid Level Swichgage, Explosion Proof
The EL150EX is an explosion-proof combination liquid level gauge and low limit switch. When installed and maintained correctly, the float operates a pointer to indicate level during normal operation and closes a switching circuit if the level reaches the low-limit set point. It’s widely used for engine cooling systems, surge or expansion tanks, and vapor-phase or pressurized systems, offering a compact solution with integrated indication and switching.
Considerations for this model include ensuring proper electrical ratings for your control system, the correct low-limit set point for your process, and compatibility with engine cooling or tank configurations. The integrated gauge and switch provide a clear, reliable monitoring solution in applications where both level visibility and a protective cut-off are required.
ZKRZCGXZ Flange Float Switch (Explosion-Proof)
Designed as an explosion-proof liquid level controller, this model from ZKRZCGXZ uses a connecting rod float mechanism and a flange mounting design. It is positioned for reliable operation in challenging environments where precise liquid level detection and robust protection are required. The sensor setup supports integration with process control systems and can monitor various liquids in industrial tanks and pipes.
Critical selection factors include the explosion protection rating, compatibility of the connecting rod mechanism with the liquid’s viscosity, and the flange footprint for retrofitting existing vessels. This option emphasizes durable materials and a simple mounting approach for heavy-duty industrial applications.

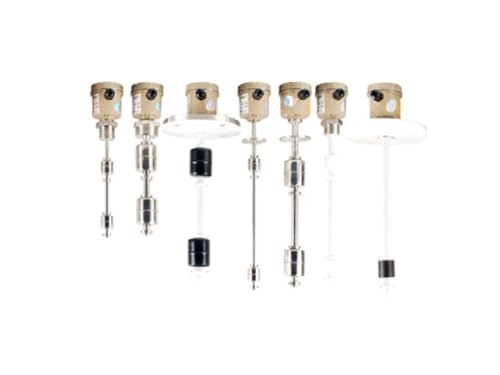

DXLBYJZKC 1pcs Float Level Switch (Explosion Proof)
The DXLBYJZKC float level switch offers a compact explosion-proof solution with a single float level sensing element. Marketed as a liquid level sensor, this unit is suitable for monitoring and controlling liquid levels in hazardous environments. Its simple design can support straightforward integration into existing systems where space is constrained or where a basic float mechanism suffices for level control.
When selecting this option, assess the electrical ratings, the mounting interface, and the compatibility with the target liquid. For authors seeking a cost-effective, dependable float switch with explosion protection, this model provides a practical balance of function and ruggedness.
Water Level Control, Liquid Level Switch (High Temperature)
This model combines magnetic switches with a high-temperature rating for challenging environments. It is described as a liquid level control switch intended for robust operation in applications where high ambient or liquid temperatures are present. The unit’s temperature tolerance makes it suitable for processing plants, chemical facilities, or cooling systems exposed to elevated heat.
Key considerations include the magnetic switch’s sensitivity, the maximum temperature rating, and the suitability of the cord or cable assembly for hazardous area use. In hazardous settings, ensuring proper insulation, enclosure protection, and compliance with local electrical codes is essential.
Buying Guide: Key Purchase Considerations And Comparisons
Explosion-proof float switches come in various configurations, materials, and mounting styles. The following factors help buyers choose the right option for their specific industrial environment.
- Hazard ratings and approvals: Verify the enclosure and component ratings align with the facility’s hazardous environment classifications (e.g., explosion-proof, intrinsic safety). Confirm compliance with applicable standards and certifications.
- Liquid characteristics: Consider liquid type (volatile, corrosive, viscous), temperature, and pressure. Some switches are better suited for high-temperature or high-pressure conditions, while others handle aggressive chemicals.
- Mounting and installation: Flanged mounting offers robust support for large tanks and vessels; alternative mounts may be preferable for space-constrained installations. Ensure compatibility with existing piping or tank configurations.
- Sensor type and visibility: Mechanical float switches provide direct level indication and local switching; combined instruments like the Swichgage offer both gauge indication and switching. Select based on the need for visual level monitoring versus simple automation control.
- Electrical integration: Examine contact configurations (NOS, N.O., N.C.), actuator life, and matching of control system inputs. Ensure wiring methods comply with hazardous-area electrical practices.
- Maintenance and durability: Durable materials such as cast aluminum or stainless steel reduce corrosion risk. Consider ease of maintenance, replacement parts, and the availability of service support.
Comparison snapshot:
- Best for integrated indication and protection: Murphy EL150EX Swichgage provides a combined gauge and switch with explicit low-limit protection.
- Best budget-friendly, explosion-proof option: Select DXLBYJZKC or QQPAOBDX variants for straightforward float sensing in hazardous areas.
- Best rugged mounting: Flange-mounted models like the ZKRZCGXZ options offer secure installation on large vessels.
- Best high-temperature compatibility: Water Level Control model emphasizes high-temperature suitability for challenging processes.
In summary, the right explosion-proof float switch should align with your process’s hazard classification, liquid properties, and installation constraints. Evaluating enclosure integrity, mounting method, and sensor type will help ensure a safe, reliable level monitoring solution across industrial applications.
