Best Electric Motor Winding Tester for HVAC and Electrical Diagnostics
Choosing the right electric motor winding tester helps technicians verify insulation integrity, detect winding faults, and ensure safe motor operation. This guide highlights five top testers suited for professional work on motors, compressors, and control boards. Each option covers insulation resistance, phase and rotation checks, and impulse winding testing to match different diagnostic needs.
Summary of selected products:
| Product | Brand | Primary Use | Notable Feature |
|---|---|---|---|
| Supco M500 Insulation Tester | Supco | Insulation resistance up to 1000 MΩ at 500 VAC | Compact, handheld, zone scale for insulation condition |
| Klein Tools ET600 Megohmmeter | Klein Tools | Insulation resistance up to 4000 MΩ at up to 1000 V | Simple test with lock button and safety indicators |
| M500 Insulation Tester (Iexcauw) | Iexcauw | Insulation resistance up to 1000 MΩ at 500 VAC | LED indicators for test status |
| IDEAL Electrical 61-521 | Ideal Industries | 3-phase motor rotation and phase identification | Carrying case and color-coded leads |
| Amprobe PRM-6 Phase Sequence Tester | Amprobe | Phase sequence and motor rotation detection | Non-contact and wireless indicators |
Supco M500 Insulation Tester
The Supco M500 insulation tester is designed for handheld use with a 0 to 1000 MΩ range at 500 VAC. It provides a zone scale to indicate insulation condition, aiding quick on-site assessments of windings and other components. Its portable form factor makes it suitable for field service on motors, compressors, and electrical panels where insulation integrity is critical.
Klein Tools ET600 Megohmmeter
The Klein Tools ET600 Megohmmeter combines insulation resistance testing with high-voltage measurement up to 1000 V. It tests up to 4000 MΩ, supporting thorough insulation resistance checks for motors and electrical equipment. The device includes test and lock buttons for ease of use and a visible warning when voltages are detected, enhancing safety during measurements.

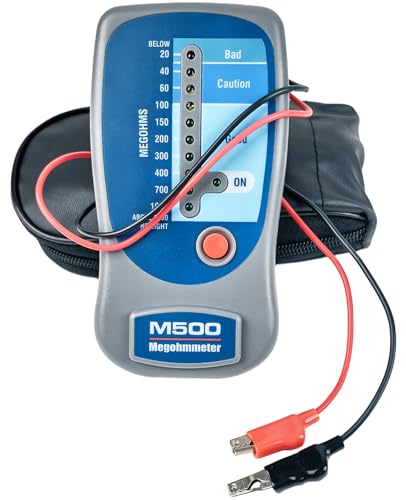

M500 Insulation Tester (Iexcauw)
This M500-style tester from Iexcauw offers versatile insulation testing up to 1000 MΩ at 500 VAC. It emphasizes a user-friendly LED indicator system to clearly display test status and results, supporting efficient fault detection in windings, motors, and control boards. Its compact battery-powered design helps technicians work without being tethered to a power outlet.
IDEAL Electrical 61-521 3-Phase Motor Rotation Tester
The IDEAL 61-521 provides up to 600 V testing to identify three-phase sequence and motor rotation status for de-energized motors. It includes color-coded alligator clip leads and a carrying case, enabling quick and safe transport between job sites. This tool is aligned with commissioning and troubleshooting tasks where phase correctness is critical for motor performance.
Amprobe PRM-6 Phase Sequence Tester
The Amprobe PRM-6 tester focuses on phase sequence and motor rotation with capabilities for systems up to 700 V. It supports non-contact detection and can indicate synchronous or asynchronous rotation direction. This makes it suitable for quick checks on running motors as part of a broader diagnostic workflow.
Universal ECM Motor Tester (YILISAWIN)
The ECM motor tester from YILISAWIN offers instant Go/No-Go diagnostics for electronically commutated motors. It runs directly from 24 VAC and requires no batteries. The tester is designed for site use with simple two-button operation, magnetic mounting, and included 24-inch leads, allowing technicians to verify motor health quickly during service rounds.
U9845 4-Channel Impulse Winding Tester
The U9845 impulse winding tester provides four high-voltage channels and multiple waveform comparison methods, including area and corona analysis. It uses a 32-bit CPU and offers substantial memory for test results, with a high-definition display and bilingual interface. This device is designed for advanced winding testing in transformer and motor applications, delivering precise impulse measurements.
Buying Guide: Key Purchase Considerations
When selecting an electric motor winding tester, consider insulation testing needs, motor voltage, and job-site conditions. Here are core factors to evaluate:
- Insulation resistance range: For motors and windings, look for testers offering up to at least 1000 MΩ, with some devices supporting higher ranges for broader coverage.
- Voltage compatibility: Ensure the tester supports the motor’s operating voltage, including 125 V, 250 V, 500 V, or higher, depending on the equipment.
- Test modes: A mix of insulation resistance, phase/rotation testing, and impulse winding testing covers both preventive maintenance and fault diagnosis.
- Ease of use: LED indicators, one-button operation, and simple test-lock features reduce on-site time and mistakes.
- Safety features: Voltage detection warnings, non-contact tests, and short-circuit protection are valuable for on-site safety.
- Portability and power: Battery-powered or self-powered devices are advantageous for field work; consider weight and battery life.
- Connectivity and data: Some testers offer memory, display options, and bilingual interfaces for complex tests and documentation.
- Durability: Dust- and shock-resistant housings with carrying cases help protect equipment in rugged work environments.
Product Diversity and Application
Professional technicians may need different tool profiles for insulation testing, phase verification, or impulse winding analysis. Heavy-duty megohmmeters excel at insulation checks, while rotation testers are essential for confirming proper motor sequencing. For advanced winding diagnostics, impulse testers provide detailed waveform analysis. A well-rounded toolkit includes at least one insulation tester, a phase/rotation tester, and an impulse winding tester to cover standard and specialized workflows.
Operational Considerations
Consider whether a tester requires external power or can operate on built-in batteries. Assess whether the device includes a carrying case and compatible leads for quick deployment on job sites. For ECM motors and high-efficiency units, having a Go/No-Go tool with simple messaging can speed service calls, while impulse testers are better suited for transformer or winding investigations in repair shops.
In summary, selecting the right combination of testers involves balancing insulation rating, voltage range, usability, and field readiness. The five products highlighted above offer a spectrum of capabilities from quick on-site checks to in-depth impulse winding analysis, enabling technicians to tailor their toolkit to each installation or service scenario.
