Best Din Rail Surge Suppressors for Reliable Electrical Protection
Protecting electrical systems, networks, and devices from transient surges is essential in both residential and small business environments. Din rail surge suppressors offer compact, mounts-on-rail protection with fast response and high discharge capabilities. This guide highlights top options with diverse features—from single-phase protection and PoE-ready units to network-specific surge devices—so you can choose the right DIN rail protector for your setup.
style=”display:none”>Buying Guide Summary
| Product | Key Protection | Voltage / Current | Special Feature |
|---|---|---|---|
| CNLonQcom 2P 40KA | Lightning and surge protection | DC 1000V | 2 pack; heavy-duty copper components |
| Baomain 2P (1P+N) BMD1-C40 | Single-phase with neutral | 420V AC / 40 kA | Automatic safety disconnect |
| Citel 24 VDC DIN Rail SPD | 24 VDC surge protection | 20 A / 20 kA | Compact 1P device |
| PROCET PoE 10KV DIN Rail | PoE surge protection | – | IEEE802.3bt/PoE++; 120W max; zinc alloy |
| ASI ASISP180-1P | UL 1449 4th Ed; 1P | 120 VAC | Pluggable MOV module |
CNLonQcom 2P 40KA Surge Protector
The CNLonQcom surge protector is designed for robust lightning and surge mitigation in electrical systems and load devices. It uses copper components for high conductivity and fast reaction times, helping to relieve transient over-voltages during strikes. The unit is compatible with various photovoltaic systems and is housed in flame-retardant PC material for durability and fire resistance. This 2-pack DIN-rail mount solution emphasizes reliability for RVs, homes, and solar installations where space efficiency matters.
Features highlight fast surge response, copper construction for superior conduction, and a protective shell designed to withstand demanding environments. The device targets transients that can impact delicate electronics as well as larger electrical circuits, making it suitable for integrated protection in home automation, solar inverters, and on-site electrical panels.
Baomain 2P (1P+N) BMD1-C40 SPD
The Baomain BMD1-C40 is a 2P surge protection device designed for single-phase systems with a live and neutral line protection. With a 420V AC operating voltage and a 40 kA discharge capacity, it shields connected equipment from power surges and lightning-induced over-voltages. An automatic safety disconnect feature adds an extra layer of protection by disconnecting the device if a fault occurs, with a visible fault indicator. This makes it well-suited for TT and TN-S power networks where complete phase protection is essential.
Its 1P+N configuration ensures comprehensive coverage for both live and neutral conductors. The flame-retardant housing enhances safety in industrial and residential DIN rail installations, while the compact design supports convenient mounting in standard electrical panels and control cabinets.

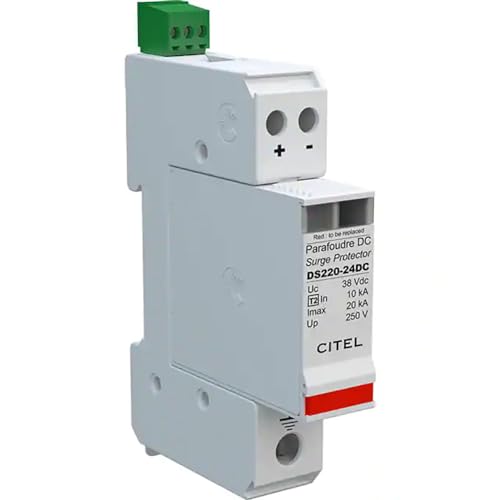

Citel 24 VDC DIN Rail Network SPD
The Citel DIN Rail Network Surge Protection Device is a compact, 24 VDC surge protector designed for network environments. With a 24 VDC rating and a current rating of 20 A, it provides robust protection against voltage spikes that threaten network equipment, routers, and switches. Its 20 kA surge capacity ensures quick response to transients, while its DIN rail mounting supports easy integration into standard electrical enclosures. This unit is ideal for protecting critical network infrastructure in small offices and industrial control rooms.
Key considerations include its compatibility with 24 VDC network systems, installation ease, and the need to balance protection with minimal insertion loss and fast response to surge events that affect data integrity and uptime.
PROCET PoE DIN Rail Surge Protector
The PROCET PoE surge protector combines DIN rail mounting with PoE protection for IEEE802.3bt/PoE++ applications. It supports up to 10 kV surge protection for SPD technology and up to 120 W max power for PoE endpoints, with DC voltage limited to 60 V. The zinc alloy housing provides corrosion resistance and structural strength for challenging environments. This unit is suitable for protecting PoE-powered cameras, access controllers, and IP devices in industrial or commercial settings.
Considerations include surge capability, compatibility with PoE standards, operating temperature range (-40°F to 185°F), and the role of the DIN rail as a grounding path to direct surge energy away from protected equipment.
ASI ASISP180-1P DIN Rail Surge Protector
The ASI ASISP180-1P DIN Rail Surge Protector provides UL-listed protection for 120 VAC systems in a compact one-pole format. It features a pluggable MOV module and a design suitable for Type 1, 2, and 3 applications with Type 4 protection in certain configurations. Its 180 VAC maximum continuous operating voltage and a factory-tested SCCR rating of 200 kA offer solid protection for embedded electronics, automation controllers, and IP network gear in commercial installations. The unit supports screw clamp terminals for straightforward wiring and serviceability.
Selection considerations include compatibility with residential or light commercial electrical panels, plug-in MOV replacement options, and the balance between protection depth and installation footprint in constrained DIN rail spaces.
Buying Guide: Key Purchase Considerations And Comparisons
Choosing the right DIN rail surge suppressor involves evaluating electrical system needs, protection goals, and the environment where the device will operate. Consider these perspectives to ensure a sound choice:
- Protection type and scope: If safeguarding both live and neutral conductors is essential, opt for 2P or 1P+N designs (as seen with Baomain). For networks, Ethernet-specific devices (like CERRXIAN) provide tailored protection for LAN lines.
- Voltage and surge rating: Match the operating voltage to the system (AC or DC). Higher surge current ratings (kA) indicate stronger transient handling, but ensure compatibility with your equipment and over-voltage protection class (UL/CSA) requirements.
- PoE compatibility: For IP cameras, wireless access points, or PoE devices, PoE-rated DIN rail protectors (like PROCET) offer integrated surge protection and power delivery compatibility.
- Physical design and mounting: DIN rail compatibility, enclosure material, and mounting ease affect serviceability and space usage in panels. Flame-retardant housings add an extra safety layer in dense environments.
- Diagnostics and indicators: Automatic fault indicators, visual status signals, and pluggable MOV modules simplify maintenance and reduce downtime during fault events.
- Temperature and environmental range: Extreme operating conditions require rugged housings and components rated for wide temperatures, as highlighted by the PROCET unit’s -40°F to 185°F range.
- Application context: Home solar, RV systems, industrial controls, and network gear each have distinct surge protection requirements. A product with a broader protective scope may be overkill for a simple home setup, while industrial panels demand higher surge endurance and reliability.
In summary, select a surge protector that aligns with your system’s voltage (AC vs DC), the presence of neutral conductors, PoE needs, and the specific equipment you seek to safeguard. For mixed environments—combining CCTV, networking gear, and small control panels—a combination of one or more 2P or 1P+N devices with network-specific protection provides balanced, comprehensive coverage.
