Best DIN Rail Power Switches for Safe, Efficient Electrical Distribution
This guide highlights top DIN rail power switch solutions that combine rocker switches, overload protection, and multi‑outlet configurations. Each pick is tailored for compact control panels, automation racks, and electrical enclosures. Below is a quick summary of the chosen products to help you compare features at a glance.
| Product | Key Feature | Voltage / Current | Receptacles / Channels | Brand |
|---|---|---|---|---|
| Rocker Switch Thermal Circuit Breaker Module | Built-in red indicator, output state RESET/OFF | AC 125/250V, 10A max | 1 channel | OONO |
| AC 120V 4 Receptacle Power Strip | Four NEMA 5-15R outlets with overload protection | AC 120V, 15A per receptacle | 4 receptacles | OONO |
| 6-Channel DC Power Distribution Strip | 6 channels with expansion capability | DC 0–50V, up to 30A total | 6 channels | OONO |
| AC 120V Single Receptacle Strip | Single outlet with overload protection | AC 120V, 15A | 1 receptacle | OONO |
| 6-Channel AC Power Distribution Strip | 6 channels, supports expansion | AC 70–250V, 30A total | 6 channels | OONO |
Proceed to the product picks to see detailed specifications, images, and how each option might fit your DIN rail panel or automation cabinet.
Rocker Switch Thermal Circuit Breaker Module
Overview
The DIN Rail Mount Rocker Switch Thermal Circuit Breaker Module combines a rocker switch with a resettable thermal circuit breaker. It supports AC input up to 125/250V and a maximum total/current rating of 10A. A built-in red indicator signals when the output is active, while an indicator state shows when the circuit is disconnected. This compact module is designed for tight control panels where a single-channel protection and simple ON/OFF control are needed.
Key Considerations
- Best for single-channel protection with visual status.
- Ideal when a manual reset and clear state indication are required.
- Limited to 10A, suitable for small loads or control circuits.
DIN Rail Mount AC 120V 4 Receptacles Power Strip
Overview
This four-receptacle DIN rail power strip provides robust AC 120V distribution with a resettable thermal circuit breaker overload protector. Each outlet is a NEMA 5-15R, reinforced for stability, and controlled by a single resettable switch with a built-in red indicator. The total current is limited by the overload protection, making it suitable for distributing power to multiple peripherals in a panel.
Key Considerations
- Good for compact desktops or control cabinets needing multiple outlets in one unit.
- Be mindful of the total current limit (15 A across all outlets).
- Simple ON/OFF control with clear status indication.
6-Channel DC Power Distribution Strip
Overview
The DC Power Distribution Strip offers six channels with a 0–50V operating range and a total max current of 30A. Each channel can deliver up to 10A. It supports expansion by linking to other modules, with a 7.62 mm pitch for compact wiring and M3 mounting screws. This module is well-suited for DC-powered devices, automation, and test benches requiring multiple controlled DC outputs.
Key Considerations
- Best for DC systems needing multiple controlled outputs from a single rail.
- Expansion capability enables scalable layouts as needs grow.
- Consider wire gauge and insulation when wiring multiple channels.

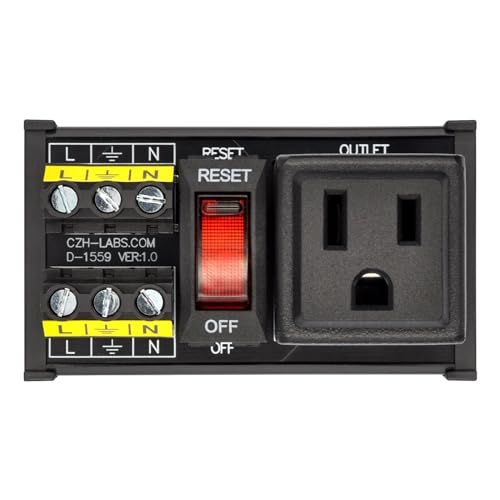

AC 120V Single Receptacle Strip with Overload
Overview
This DIN rail module provides a single NEMA 5-15R receptacle with a resettable rocker switch and overload protection. The built-in red indicator shows when power is ON, and the control is straightforward—ON/OFF with an added layer of protection against overloads. It’s ideal for small-enclosure deployments or devices that require isolated single-outlet distribution on a DIN rail.
Key Considerations
- Simple, compact solution for single-device power distribution.
- Ensure compatibility with the host enclosure’s clearance and DIN rail space.
- Overload protection helps prevent nuisance trips in small systems.
6-Channel AC Power Distribution Strip with Protection
Overview
This six-channel AC distribution strip supports a wide voltage range from 70 to 250V and a total current of up to 30A. Each channel can deliver up to 10A, and the unit supports expansion by linking additional modules. The DIN rail mount design and screw terminals enable flexible wiring in mixed-voltage panels, making it suitable for broader automation and distribution tasks.
Key Considerations
- Versatile for both 115V and 230V applications; good for international setups.
- Plan for conductor sizing and insulation to safely carry distributed loads.
- Expansion compatibility allows building larger power-distribution networks over time.
DIN Rail Mount 1-Channel Rocker Switch
Overview
Single-channel DIN rail rocker switch with 250VAC or 50VDC rating and up to 10A per channel. It features a removable cover for easy wiring, M3 mounting hardware, and vinyl-insulated spade connectors suitable for flexible wiring. This module fits compact control panels where a single on/off control is required for a DC or AC circuit.
Key Considerations
- Best for minimal channel requirements with straightforward switching.
- Check compatibility with existing DIN rail systems and support electronics.
- Use the included spade connectors for quick wiring, with appropriate insulation.
AC 120V Double Receptacle Strip
Overview
The double receptacle module offers two NEMA 5-15R outlets with a single resettable overload protector. A built-in red indicator shows power status, and manual ON/OFF control is supported. This configuration is ideal for panel layouts needing two separate outlets with centralized protection and compact DIN rail mounting.
Key Considerations
- Balanced option for decks that require two outlets in a compact form.
- Monitor total current to stay within overload protection limits.
- Consider whether you need two outlets sharing a protected circuit or separate control.
4-Channel DC Power Distribution Module
Overview
This DC power distribution module provides four channels with a pluggable top wiring terminal block and a total rating of 52A. The input side supports flexible wiring with a dual screw terminal block, while the output side uses a pluggable terminal block with M2.5 screws. It supports DIN rail mounting and screw mounting for versatile panel layouts.
Key Considerations
- High total current capacity suitable for larger DC systems.
- Mix and match with expansion modules for scalable DC distribution.
- Ensure fuse configuration and per-channel current meet your load requirements.
Buying Guide: DIN Rail Power Switches
When selecting a DIN rail power switch or distribution module, consider these factors to ensure optimal performance and safety in your enclosure:
- Voltage and current ratings: Match to your system’s supply (AC or DC) and the load current per channel. Exceeding ratings risks nuisance trips or component damage.
- Channel count and expansion: Start with the required number of channels and verify whether the system supports expansion to accommodate growth.
- Protection features: Look for resettable circuit breakers or overload protection, and indicator lights to monitor status at a glance.
- Wiring and terminals: Check pitch, wire gauge compatibility, and whether terminal blocks are pluggable or fixed. Ensure easy and reliable wiring within enclosure space.
- DIN rail compatibility: Confirm the module’s mounting type (top hat, TS-35) and mounting height to fit your panel’s DIN rail length and space.
- Control accessibility: Decide if you need single-channel ON/OFF control or multi-channel sequencing, and whether indicators are visible from outside the enclosure.
- Environmental and safety considerations: Ensure components meet applicable safety standards and are rated for the operating environment (temperature, vibration, etc.).
- Maintenance and serviceability: Prefer modules with clear labeling and accessible terminals to simplify troubleshooting and replacement.
- DC vs AC design: DC modules may require careful wiring polarity and safe disconnect practices; verify fuse and protection alignment for DC loads as well as AC.
These considerations help ensure reliable power switching, straightforward maintenance, and scalable panel designs. Choose a module that aligns with your current needs and can adapt to future changes in your electrical distribution system.
