Best DIN Rail Fuse Block Solutions for Industrial Power Distribution
Finding the right DIN rail fuse block setup means balancing capacity, expansion options, and ease of wiring. This guide highlights five solid DIN rail power distribution options that cover compact 6- and 8- to 18-channel configurations, fuse protection, and easy expansion. This is ideal for buyers building control panels, automation racks, or any DC-powered distribution network. The top picks are best for technicians seeking modular, secure, and scalable fuse distribution with clear fault indicators and straightforward wiring.
Summary table of chosen products:
| Product | Approximate Channel Count | Strength | Best For | Limitations |
|---|---|---|---|---|
| DC Power Fuse Distribution Strip Module (6 Position, DIN Rail Mount) — OONO Store | 6 | High current per channel, expandable, DC 0–32V | Fuses require replacement for higher current (up to 10 A) | |
| Baomain 5-Pack Cylindrical Fuse Holder RT18-32(X) — Baomain Store | N/A (fuse holders for 32 A fuses) | Clear visual fault indication with LED | installations needing 32 A/690 VAC protection and indicator | Separate fuses required |
| Dinkle DK4-TF(5×20) DIN Rail Terminal Block Fuse Holder — International Connector Store | 4 per block (fuse holder) | UL-listed to 300 V, supports 12–24 AWG | budget DIN rail fuse holders for multiple circuits | Limited channel data in listing |
| DIN Rail Mount DC 5-32V 8 Channel Pluggable Top Wiring Terminal Block Power Distribution Fuse Module — HCDC HD064VT | 8 | Dual polarity input, plug-in top wiring, expansion support | mid-size DC systems needing multiple channels and expansion | Factory fuse value is 3 A; higher output requires fuse changes |
| DC Power Fuse Distribution Strip Module (18 Position, DIN Rail Mount) — OONO Store | 18 | Large channel count, expandable, DC 0–32V | larger control panels needing many fused outputs | Higher wiring density requires careful layout |

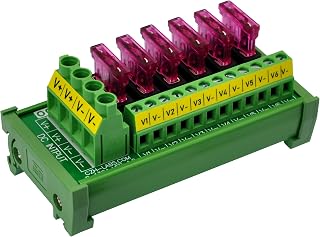

DC Power Fuse Distribution Strip Module, 6 Position
This 6-channel DIN rail power distribution module is designed for DC systems from 0 to 32 volts. It provides a total input current capacity up to 30 amps, with each channel supporting up to 3 amps. The factory-installed fuse value is 3 amps, and users can replace fuses to extend output capability up to 10 amps per channel. Input terminals use 7.62 mm spacing, with robust M3 mounting hardware, and output terminals use a 5.0 mm pitch for compact wiring. This module supports expansion by linking to other modules, making it a practical choice for growing projects.
Who it’s best for: technicians needing a compact, expandable 6-channel DC fuse block for low-voltage to mid-voltage control panels. It suits installations where a neat, modular layout and straightforward fuse replacement are priorities.
Why selected: the balance of expansion capability, clear channel limits, and a factory fuse baseline of 3 A makes it versatile for custom configurations. Caution: replace fuses only with appropriate ratings to avoid overcurrent risk.
Baomain 5-Pack RT18-32 Fuse Holders
The Baomain 5-pack includes cylindrical fuse holders designed for 10 x 38 mm fuses, rated up to 32 A and 690 VAC. These holders are intended for DIN rail mounting in industrial and household applications, with red LED fault indication that lights when a fuse blows. They are a straightforward choice when a dedicated high-current fuse holder is needed.
Who it’s best for: teams requiring clearly visible fault indicators and robust mounting for high-current applications.
Why selected: the 32 A, 690 VAC rating and easy DIN rail mounting provide strong protection for demanding circuits. Caution: this product requires separate fuses compatible with the RT18-32 family.
Dinkle DK4-TF(5×20) DIN Rail Terminal Block Fuse Holder
The Dinkle DK4-TF series provides a UL-listed fuse holder option compatible with 12–24 AWG conductors and up to 16 A, rated at 300 V. It offers compact DIN rail mounting in a 4-channel configuration per block, suitable for distributing fuses across multiple small circuits.
Who it’s best for: budget-conscious installers needing reliable, UL-listed fuse holders for mixed small-diameter wiring.
Why selected: the combination of UL listing, broad conductor compatibility, and straightforward installation supports diverse DIY and commercial controls. Caution: official data on exact per-block channel count is not detailed in the listing; verify compatibility for your panel layout.
DIN Rail Mount DC 5-32V 8 Channel Fuse Module
This 8-channel DIN rail fuse module supports DC input from 5 to 32 V with a maximum total current of 20 A for both input and output. Each position supports up to 3 A by default, with provision to upgrade to higher output by changing fuses. It features dual polarity terminals for input and a plug-in top wiring terminal block for easy wiring and expansion across modules. Output terminals are 5.08 mm pitch for compact wiring with M2.5 screws.
Who it’s best for: installers who need a scalable eight-channel solution with straightforward expansion and fusible protection for DC systems.
Why selected: the dual polarity input and pluggable top wiring blocks simplify wiring in dense panels. Caution: higher output requires fuse changes, so plan for future expansion in the initial design.
DC Power Fuse Distribution Strip Module, 18 Position
This 18-channel DIN rail fuse module provides an expansive option for larger control panels. It supports DC operation from 0 to 32 V and a maximum total input current of 30 A, with 3 A per channel by default and a possibility to replace fuses for up to 10 A per channel. The design mirrors the 6-position variant with robust M3 mounting hardware and 7.62 mm input pitch. It also allows power-supply expansion to other modules, enabling scalable system growth.
Who it’s best for: technicians building larger or more complex DC power distribution networks requiring many fused outputs in a single rack.
Why selected: high channel count and expansion compatibility make it a strong centerpiece for larger automation panels. Caution: wiring density increases, so careful planning is essential to maintain clean layouts and reliable connections.
Buying Guide: Key Considerations for DIN Rail Fuse Blocks
- Current and voltage ratings: Match module voltage range (often DC 0–32 V) and per-channel current limits to your load requirements. Consider the fuse rating and whether you’ll need to upgrade fuses for higher continuous current.
- Expansion capabilities: If your project may grow, choose modules that interlock or connect with other DIN rail blocks to minimize redesigns.
- Wiring ease: Look for modules with pluggable terminal blocks, clear polarity labeling, and standard screw sizes (M3, M2.5) for reliable wiring in tight panels.
- Indication and fault handling: Visual fault indicators (LEDs) help maintenance. Ensure the design provides straightforward fault isolation for quick service.
- Physical layout: Consider channel count and the spacing of input/output terminals to keep wiring organized and within DIN rail space constraints.
- Compliance and compatibility: UL listings and compatibility with common DIN rail standards help ensure safe, compliant installations.
Frequently Asked Questions
- What is a DIN rail fuse block used for?
It distributes power and protects individual circuits in a single, modular rail-mounted enclosure, simplifying control panel design.
- Can I upgrade the fuse rating on these blocks?
Yes, several models allow replacing factory fuses to achieve higher per-channel output current, but follow manufacturer limits to avoid overloading.
- Do these blocks support expansion?
Many options are designed to connect with additional modules, enabling growth as system needs change.
- What should I consider when choosing a channel count?
Assess your current wiring needs and future expansion plans. Larger projects benefit from higher channel counts to avoid future redesigns.
- Are these modules suitable for industrial environments?
Most are designed for DIN rail mounting with robust terminals; verify voltage, current, and insulation ratings for your specific environment.
- Is LED fault indication important?
LED indicators provide immediate visual fault status, reducing maintenance time in busy panels.
