Best Diaphragm Seal Pressure Transmitters for Industrial Accuracy
When selecting a diaphragm seal pressure transmitter, pick models that fit your process media, provide stable 4-20mA signaling, and offer reliable protection in demanding environments. This guide highlights five well-suited options, clarifying who each product is best for and why it stands out. Ideal buyers include chemical processing teams, water treatment specialists, and manufacturers needing rugged, flange-connected sensing with diaphragm seals. A quick summary table below helps compare core details at a glance.
| Product | Best For | Key Benefit | Limitations / Cautions |
|---|---|---|---|
| DN25 DN50 Flange Connection Ex-Proof Digital Diaphragm Seal (4-20mA) | Exposed or hazardous-area environments requiring flange seals | 4-20mA display for easy reading and integration | DN25/50 only; check flange compatibility with your piping |
| DN25 DN50 Flange Connection Ex-Proof Digital Diaphragm Seal (4-20mA, DN20, 0-0.4MPa) | Low-range pressure monitoring with flange seals | Compact range options including 0-0.4 MPa | Lower pressure range may limit use in high-pressure systems |
| DN25 DN50 Flange Connection Ex-Proof Digital Diaphragm Seal (4-20mA, DN25, 0-0.6MPa) | Moderate-range diaphragm-seal transmitter needs | 0-0.6 MPa range provides robust monitoring | Same DN25/50 flange limitation as above |
| EQBVZZRD STR82D-21CS1B0 SmartLine Remote Diaphragm Seals Pressure Transmitter | SmartLine remote diaphragm-seal setups with precision compensation | Stable, reliable; multiple pressure ranges | Remote mounting may require extra cabling and installation planning |
| CHUNYE EJX438A Diaphragm Sealed Gauge Transmitter | General industrial signal conversion and robust duty | Converts multiple parameters into standard outputs | Ensure signal options match system inputs |

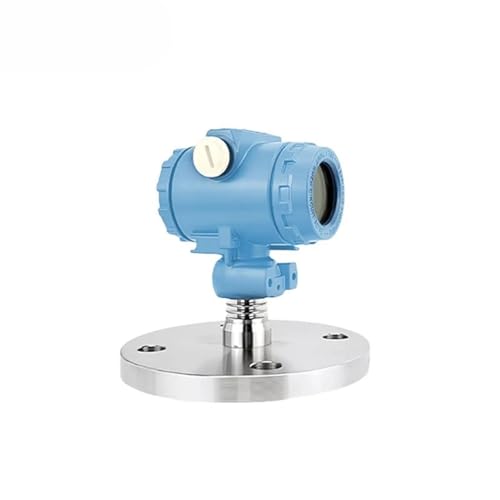

DN25 DN50 Ex-Proof Digital Diaphragm Seal 4-20mA Transmitter (DN25, 50KPa)
The DN25 DN50 flange-connected transmitter by ZNGDAYNR targets environments demanding explosion-proof protection alongside diaphragm-seal integrity. This model provides a 4-20mA display output, helping operators read pressure directly at the point of measurement. Best for process plants handling viscous or potentially corrosive liquids where flange connections ensure a leak-tight seal. Suitable for basic liquid-level sensing and routine process monitoring. A limitation to note is that available ranges are tied to the DN25/50 configuration, so verify compatibility with your target pressure range before deployment.
DN25 DN50 Ex-Proof Digital Diaphragm Seal (4-20mA, DN20, 0-0.4MPa)
This variant expands the same diaphragm-seal concept into a low-range option, ideal for instrumentation panels that require precise monitoring in tight pressure windows. It remains best for facilities needing dependable 4-20mA signaling combined with robust flange connections. Best for small-diameter lines or applications with gentle pressure requirements. A caveat is the narrower 0-0.4 MPa range, which may not cover higher-pressure process sections.
DN25 DN50 Ex-Proof 0-0.6MPa Diaphragm Seal Transmitter
This 0-0.6 MPa option provides a step up in range while preserving the diaphragm-seal benefits of flange connection and 4-20mA signaling. Choose this if your process requires a broader measurement window without moving to a higher, less stable range. Useful in chemical handling and water treatment where moderate pressure monitoring is essential. Limitation: ensure the DN25/50 flange pairing aligns with your pipeline specs.
EQBVZZRD STR82D-21CS1B0 SmartLine Remote Transmitter
The STR82D-21CS1B0 model by EQBVZZRD emphasizes stability through precision compensation technology, making it a strong choice for environments with temperature fluctuations or interference. It supports multiple pressure ranges, offering versatility for plants needing scalable sensing across lines or processes. Best for facilities investing in remote monitoring with reliable data integrity. One limitation is the potential need for additional cabling and remote-mount planning in complex installations.
CHUNYE EJX438A Diaphragm Sealed Gauge Transmitter
CHUNYE EJX438A focuses on signal conversion with diaphragm-sealed protection, facilitating a range of standard outputs such as 4-20mA and 0-10V. It’s well-suited for general industrial use where diverse measurement parameters must be integrated into control systems. Best for projects needing diverse signal compatibility. A caveat is to confirm that the output type matches your existing data acquisition hardware to avoid interface mismatches.
ZHZKPLPPRB EJX118A Hydrostatic Differential Pressure Transmitter
Designed for reliable monitoring across liquids and gases, the EJX118A provides accurate pressure measurement with robust output signaling suitable for control systems and data acquisition. It excels in industrial processing and factory automation where stable, precise readings are essential. Best for environments demanding rugged, stable performance. Caution: verify the specific media compatibility to ensure diaphragm seals remain durable over time.
PWINEING EJA118W Series Diaphragm Sealed Transmitter
The PWINEING EJA118W series emphasizes flowmeter compatibility and diaphragm-seal protection, making it a practical choice for fluid handling and process measurement where flow and pressure interplay matters. Best for plants integrating multiple process signals with a single transmitter family. Limitation: ensure the specific wiring and output options align with your control system’s input modules.
Buying Guide: Key Purchase Considerations
- Protection and environment: If you operate in hazardous or explosive zones, prioritize Ex-proof or intrinsically safe models with proper approvals.
- Pressure range and flange compatibility: Match the transmitter’s range to your application. Confirm DN25/DN50 flange compatibility with your piping to prevent installation issues.
- Output signaling: Most models offer 4-20mA, with some variants supporting 0-10V or digital readouts. Ensure your control system can read the chosen output.
- Remote vs. local sensing: Remote diaphragm seals can reduce process temperature exposure but require additional cable runs and mounting considerations.
- Installation and maintenance: Look for compact, lightweight units that are easy to install and calibrate. Consider the availability of spare diaphragms and seals for long-term maintenance.
- Material compatibility: Review media compatibility with diaphragm and wetted parts to prevent corrosion or seal degradation.
FAQ: Quick Answers For Buyers
- What is a diaphragm seal pressure transmitter?
A diaphragm seal transmitter uses a flexible diaphragm to isolate the process fluid from the sensing element, allowing accurate pressure measurement while protecting the sensor from harsh media.
- Which transmitter is best for hazardous zones?
Look for Ex-proof (explosion-proof) or intrinsically safe models, such as the Ex-proof digital diaphragm-seal variants listed here.
- What does 4-20mA output mean?
It’s a standard current loop signaling method that conveys a proportional pressure reading to control systems or data loggers.
- How do I choose the right pressure range?
Match the sensor’s maximum and minimum ranges to your process pressures. A range that is too high reduces sensitivity; too low can saturate the signal.
- Are diaphragm-seal transmitters suitable for high-temperature media?
They are often designed for tough conditions, but verify temperature ratings and seal material compatibility for your specific media.
- Do I need remote mounting?
Remote diaphragms help with process isolation and heat management but require careful cable routing and calibrated compensation.
