Best Current Transformers for Metering: Accurate, Reliable Solutions for Modern Electrical Systems
Need accurate meteringCurrent Transformers (CTs) for submetering, building energy management, or equipment monitoring? This guide highlights five top CT options that balance accuracy, ease of installation, and broad compatibility. Best for revenue-grade metering, retrofits, and multi-circuit installations, these CTs cover solid-core and split-core designs for single- and three-phase systems. Each entry includes who it’s best for and practical buying notes.
Product snapshot table
| Product | Best For | Key Benefit | Limitations |
|---|---|---|---|
| Leviton CDA02-312 | Submetering and revenue-grade projects | Quick installation; high accuracy | Includes multiple color housings (consistency required for labeling) |
| EKM Metering EBCT-013-200UL | 120V single-phase installations | Simple two-CT setup for split-phase systems | Best with pair of CTs for 120/240V applications |
| nodehawk 400A AC Current Sensor | Live retrofits and flexible monitoring | Split-core, no power-down during install | Higher current range may not suit small loads |
| nodehawk 100A AC Current Sensor | Smaller circuits and retrofits | Low-current option with no-power-off needs | Limited to 100A rating |
| EKM Metering 200A Split-Core | Three-wire and multi-circuit metering | Split-core design for easy installation on existing cables | Requires correct inner diameter fit for cables |
Leviton Sub-Metering Current Transformers, 200A, 200:0.1A
Reference features: Quick installation; revenue-grade accuracy; superior performance over basic current sensors. This kit is designed for submetering applications where precise measurement is essential for billing and energy monitoring. It supports high accuracy relative to common current sensor designs, making it a strong choice for building managers and utility-grade projects.
Who it’s best for and why: Ideal for property owners, facility managers, and energy coordinators who require revenue-grade metering with straightforward installation in multi-circuit panels. The 200A primary offers robust coverage for mid-to-large loads.
Caution: Color labeling and mounting must be managed carefully to ensure correct CT ratios are applied in the metering system.

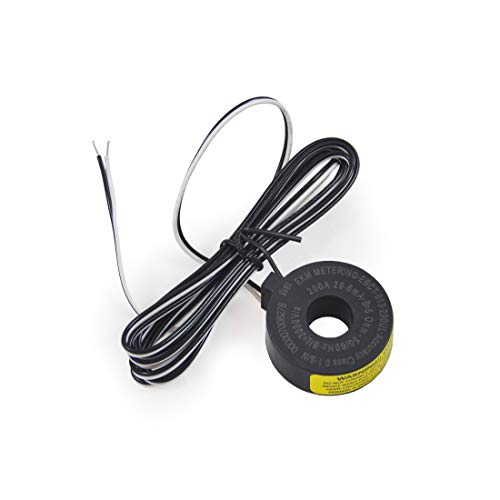

EKM Metering Solid-Core Current Transformer, 200A
Reference features: 200A solid-core CT suitable for 120V single-phase North American systems or 230V 2-wire foreign systems; can be used with two CTs for 120/240V and for three-phase 3-wire setups without a neutral.
Who it’s best for and why: A solid choice for small-to-mid sized commercial or residential metering projects that use split-phase or two-wire 230V systems. Using two CTs provides reliable coverage for 120/240V configurations.
Caution: Not recommended if cable routing requires a quick detach or frequent reconfiguration beyond standard single-panel installs.
nodehawk AC Current Sensor Transformer, 400A
Reference features: All-scenario no-power-cut current monitoring; split-core with detachable core design; broad compatibility with ammeters, energy meters, and PLCs. Accurate for 50A–1000A rated current range and 24mm inner diameter.
Who it’s best for and why: Best for live retrofits in substations or buildings where downtime must be avoided. The split-core design enables installation without disconnecting power lines, making it a strong fit for ongoing energy management projects.
Caution: Higher current capacity may be more than needed for small circuits; ensure the CT ratio aligns with the monitoring device’s input expectations.
nodehawk AC Current Sensor Transformer, 100A
Reference features: Similar all-scenario, no-power-cut capabilities; split-core, 24mm inner diameter; compatible with ammeters, energy meters, and PLCs; suitable for medium-sized circuits.
Who it’s best for and why: Choose this if your load centers or panel boards house circuits under 100A and you want an installation that won’t require power shutdown. It provides flexibility for ongoing metering needs without major downtime.
Caution: The 100A rating may require multiple CTs for larger loads; plan for the total monitored circuit count to achieve full coverage.
EKM Metering 200A Split-Core Current Transformer
Reference features: Split-core design with 25 mm (1.0″) inside diameter; 200A amperage; suited for easy retrofits on existing cables.
Who it’s best for and why: Ideal for upgrading legacy metering setups where cables are already installed. The split-core approach minimizes downtime and simplifies retrofits in multi-circuit environments.
Caution: Ensure the inner diameter accommodates the target conductor size; mismatch can affect accuracy and installability.
Buying Guide: Current Transformers For Metering
What should you consider when selecting CTs for metering?
- Type: Split-core CTs allow installation without disconnecting power; solid-core CTs may offer tighter tolerances but require circuit interruption for installation.
- Primary rating and ratio: Match the primary amperage (e.g., 200A) to your load and ensure the CT ratio delivers the metering precision you need (e.g., 200:0.1A for revenue-grade readings).
- Voltage compatibility: Confirm compatibility with your system voltage (120V single-phase, 230V, or three-phase) to ensure accurate readings.
- Accuracy class: For metering and billing, look for CTs with higher accuracy and stable performance across load ranges.
- Installation: Consider ease of installation, including whether the CT core is detachable, the availability of labeled leads, and whether mounting options suit your panel design.
- Compatibility: Ensure the CT integrates with your metering device, PLCs, or energy meters; check input ranges and connector types.
FAQ
- What is the difference between solid-core and split-core CTs?
- Which CT is best for a 120/240V residential system?
- Do CTs affect billing accuracy?
- How many CTs are needed to meter a three-phase system?
- Can CTs be installed without powering down the circuit?
- How do I choose the right CT ratio for my meters?
Answers provide practical guidance for typical metering projects. Solid-core CTs can offer tight tolerances, but split-core CTs are often preferred for retrofit work due to easier installation. For 120/240V residential systems, using two CTs can cover each leg, or a single CT rated for the system may suffice for simpler setups. Billing accuracy may improve with higher-precision CTs, especially in submetering, where energy usage drives charges. Installers should follow local electrical codes and device manuals for best results.
