Best Carbon Brush Holder Assembly Options for Power Tools
When a power tool’s carbon brushes wear, performance can drop and risk of damage increases. A reliable carbon brush holder assembly restores proper contact with the armature, stabilizing voltage transfer and extending tool life. Below is a curated guide to five widely compatible carbon brush holder assemblies that fit popular DeWalt, Milwaukee, AEG, and other models. Each option includes common part numbers, assembly contents, and key features to help you choose the right replacement for your drill, saw, or grinder.
The following summary table provides a quick reference to the selected products, focusing on compatibility, primary use, and notable materials. Use it to compare at a glance before reading deeper into each item.
| Product | Brand | Compatibility Highlights | Key Materials |
|---|---|---|---|
| N268145 / N187232 Style Assembly (KIMGU) | KIMGU | DeWalt 20V drills and several DCF/DCH/DC models | Carbon brushes, springs, ring/holder |
| Double-Cylinder GX630 (FTVOGUE) | FTVOGUE | 10kW–15kW gasoline generators (GX630) | Plastic and copper construction |
| 22-20-0150 (GEAIN) | GEAIN | Electric drill/driver 1680-20 / 1680-21 family | Durable materials, precise size |
| 22-20-0535 Replacement (FixZVLT) | FixZVLT | Milwaukee 6538-21 Sawzall family | Standard carbon brush holder assembly |
| Replacement Card Assembly for M18 / 22-22-1640 Series (Wadoy) | Wadoy | AEG / Milwaukee 18V / 18V tools | Non-original aftermarket parts |
N268145 / N187232 Style Carbon Brush Holder Assembly
This assembly from KIMGU is designed to replace worn brushes in a range of DeWalt 20V drills and other models. It includes the brush ring holder, both brushes, and the springs that apply tension to the brushes. The kit is sold as a single unit and references multiple part numbers for easy cross-compatibility, including N187232 and N109433. It is compatible with many DeWalt DCF and DC lines, making it a versatile option for common 20V tool maintenance.
What to know: the brushes rub against the moving armature, so regular inspection and replacement are recommended to maintain peak performance. This assembly combines essential components into one package, simplifying replacement and reducing downtime when brushes wear out. If your model matches the listed compatibility, this can be a straightforward, all-in-one solution.
Best use cases: replacing worn carbon brushes in DeWalt 20V drills such as DCF880, DCF885, DCD780, DCH253, and related variants. The included springs ensure consistent brush tension, promoting stable electrical contact across the brush life. This can help restore lost torque and smooth operation after wear.
Double-Cylinder GX630 Carbon Brush Holder (FTVOGUE)
The GX630 carbon brush holder is designed for larger gasoline generators in the 10kW–15kW class, where durable performance is critical. The double-cylinder construction provides robust brush support and stable current transfer under varying load. Built with a combination of high-quality plastic and copper, this holder is described as having a long service life and reliable operation in demanding generator environments.
Key considerations: generators experience different electrical rhythms than handheld tools, so a stable brush pressure and material quality matter. The double-cylinder design can help evenly distribute wear and maintain contact during steady-state operation. It is described as a standard model with precise sizing and reliable characteristics suitable for professional or heavy-use settings.
Use scenarios: for generators in the 10–15 kW range where maintenance includes brush holder replacements. This option emphasizes durability and long service life, making it a practical replacement for generators used in remote sites or continuous operation.
22-20-0150 Carbon Brush Holder Assembly (GEAIN)
The 22-20-0150 carbon brush holder assembly from GEAIN targets electric drills/drivers in the 1680-20 and 1680-21 families. It emphasizes a precise fit and top-quality construction, including a material mix designed to protect the motor and extend service life. The product notes indicate a compact, sturdy build that safeguards the drill motor against brush-induced issues while offering a straightforward replacement process.
Size and fit: the assembly is specified with an exact footprint and connection style (0.187″ female spade), facilitating straightforward electrical connections. This helps minimize installation time and reduces misfit risks compared to generic replacements. The stated dimensions make it a strong option for aligning with the Super Hawg Drill and similar models in its class.
Compatibility and longevity: described as highly durable with rigorous testing to ensure longer service life, this GEAIN part targets professional users who rely on consistent performance in drill and driver tool lines. If your model aligns with 1680-20/1680-21, this can be a reliable, easy-to-install replacement.

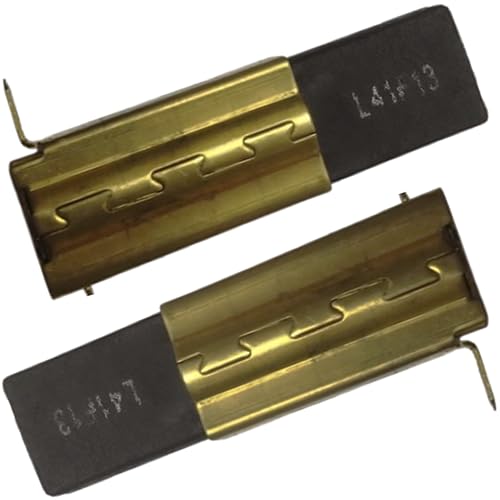

22-20-0535 Replacement For Milwaukee Sawzall (FixZVLT)
The 22-20-0535 carbon brush holder assembly by FixZVLT is aimed at Milwaukee 6538-21 Sawzall models. This replacement part is described as a direct fit, helping restore the brush contact essential for robust cutting performance. It’s positioned as a standard assembly replacement that ensures compatibility with the Milwaukee Sawzall line and similar 22-20-bearing configurations.
What to assess: compatibility with your exact Milwaukee model number is critical; the listing explicitly mentions 6538-21 Sawzall. If your tool uses this family of brush holders, this assembly provides an accessible, straightforward upgrade option without the need for more extensive internal modifications.
M18 / 18V Hammer Drill & Impact Driver Carbon Brush Card Assembly (Wadoy)
Wadoy offers a carbon brush holder card assembly designed for M18/M18V hammer drills and impact drivers, compatible with AEG and Milwaukee 18V families. The kit is described as a good replacement option, featuring a non-original aftermarket build. It specifies 18V operation with 27W power and a pair of brushes wired with typical positive and negative leads. The product targets 18V tool users seeking a cost-conscious alternative that preserves essential brush functionality.
Important notes: as an aftermarket part, performance may vary from original equipment. Users should verify model compatibility against M18/18V iterations such as 2650-20 and related tool lines. If you need a budget-friendly replacement that maintains basic brush-to-commutator contact, this option provides a practical choice.
Buying Guide: Carbon Brush Holder Assemblies
When choosing a carbon brush holder assembly, consider several purchase criteria to ensure reliable performance and compatibility across tools. This guide presents multiple perspectives, including model-specific fit, materials, and installation considerations.
- Model compatibility: verify part numbers and model family before purchasing. Some holders are designed for DeWalt 20V lines, Milwaukee Sawzall, or Milwaukee 18V/AEG combinations, while others target generators or different voltage ranges. A precise fit prevents misalignment and electrical issues.
- Material quality and construction: assemblies with carbon brushes, springs, and a sturdy ring/holder tend to provide longer life and stable contact. Copper and high-strength plastics can contribute to durability, but assess the intended environment (worksite, generator, or workshop) to select the best material mix.
- Spring tension and contact stability: consistent brush pressure against the armature is essential for even wear and stable current transfer. Look for kits that emphasize springs and properly tensioned brushes.
- Ease of installation: straightforward assemblies that come with all necessary components (brushes, springs, holder) reduce downtime. Check for compatibility notes and clear wiring connections (e.g., spade terminals) to ensure a smooth retrofit.
- Original vs aftermarket: original parts may guarantee exact fit and performance, while aftermarket or non-original parts can offer cost savings. Compare warranties, return options, and user reviews to gauge reliability.
- Environmental considerations: for heavy-duty or generator use, durability against vibration, heat, and dust becomes critical. Some assemblies emphasize long service life and rugged construction to withstand challenging settings.
- Future maintenance: consider whether the replacement is a one-off fix or part of a long-term maintenance plan. Simpler designs may be easier to troubleshoot or swap out during routine service.
To maximize device performance, pair a high-quality carbon brush holder with regular maintenance checks. Inspect brushes for wear, measure brush length, and replace them before contact becomes uneven or brushes begin to chatter. For generators and heavy-duty tools, consider models with reinforced materials and reliable springs to minimize contact resistance and voltage drop during operation.
