Best Cable Tray 90 Degree Bend Solutions for Tight Installations
Choosing the right 90-degree bend or fitting is essential for maintaining a clean, code-compliant electrical installation. This guide reviews five practical options that address common challenges—inside and outside bends, heavy-duty support, and compatible accessories for MC cables and conduit. Each product is summarized below with key features to help you compare at a glance and make an informed decision for your project.
| Product | Brand | Type | Key Feature | Link |
|---|---|---|---|---|
| Electrical MC/Flex Cable Connector 90 Degree | Generic | 90 Degree Connector | UL Listed; 90 Degrees; Heavy Duty | https://www.amazon.com/dp/B0DR1G1Z1M?tag=spcrewenergy-20 |
| Eaton 4A0690VI24 | Eaton | Cable Tray Fitting | Aluminum; 90 Degree Inside Bend; 24 in | https://www.amazon.com/dp/B0DR686W7K?tag=spcrewenergy-20 |
| Eaton 4A-06-90VO24 | Eaton | Cable Tray Fitting | Aluminum; 90 Degree Outside Bend; 24 in | https://www.amazon.com/dp/B0DR68FRLC?tag=spcrewenergy-20 |
| Eaton 6A36-90VI12-2-5 | Eaton | Cable Tray and Ladder | Aluminum; 90 Degree Inside Bend; 12 in | https://www.amazon.com/dp/B0DR39RCYN?tag=spcrewenergy-20 |
| LeMotech M12 Cable Gland | LeMotech | 90 Degree Gland | Adjustable 4-8 mm; Nylon; Right-angle entry | https://www.amazon.com/dp/B0CM5MG89M?tag=spcrewenergy-20 |
Note: The table provides a quick snapshot of each option. For detailed specs and how well they fit your exact cable tray configuration, read the product sections below.
Electrical MC/Flex 90 Degree Connector (Heavy Duty)
The Generic 90-degree MC/Flex cable connector is positioned for tight spaces where a straight run isn’t feasible. Its 90-degree bend supports MC cable, AC, BX, and flex conduit, simplifying routing to boxes or enclosures. The design emphasizes secure fixation with two screws, reducing movement and vibration in demanding installations. UL listing adds confidence for electrical compliance. Consider this option when you need a robust bend that preserves conductor integrity while navigating around obstacles.
Eaton 4A0690VI24 Inside Bend Tray Fitting
This Eaton Series 2-5 aluminum fitting provides a 90-degree inside bend in a compact 24-inch length. The inside bend reduces external protrusions, helping maximize tray clearance in tight installations beneath ceiling spaces or behind equipment racks. The aluminum construction offers light-to-moderate load handling with corrosion resistance suitable for many indoor electrical trays. It’s ideal when you want a clean inside-turn without outward flare that could snag adjacent components.
Eaton 4A-06-90VO24 Outside Bend Tray Fitting
The 90-degree outside bend variant from Eaton delivers a more outward bend profile, which can improve clearance around obstacles or equipment protrusions. Made from aluminum, it remains lightweight yet sturdy, with a green finish indicating a color-coded service or rating in some catalog contexts. This is a practical choice when internal space is restricted, and you need the bend to contour away from the tray edge to avoid interference with nearby cables or fittings.
Eaton 6A36-90VI12-2-5 Inside Bend 12 in Tray
This 12-inch inside bend from Eaton’s Series 2-5 line is designed for longer, smooth-radius turns without kinking cables. The 90-degree angle is optimized for integrated tray systems that require a continuous, rigid run. Aluminum construction supports durability under typical indoor electrical installations. This option suits projects where a longer bend path is needed to align with a network of trays or to navigate around structural elements while maintaining a neat, protected run for cables.

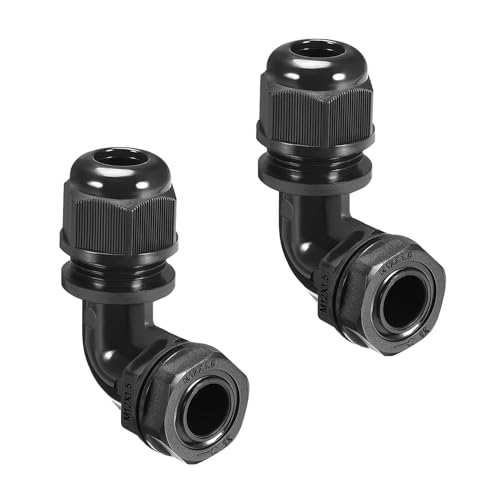

LeMotech M12 Cable Gland 90 Degree, 2 Pcs
LeMotech’s M12 90-degree cable glands target efficient strain relief at a right-angle entry. Specifically designed for M12-sized cables, these glands help seal and protect cables as they connect to equipment or enclosures. The nylon PA6 material provides heat and abrasion resistance, making them suitable for industrial or workshop environments. While not a tray bend themselves, these glands complement tray setups by ensuring secure, weather-ready cable passes at 90 degrees into gear or junction boxes.
Buying Guide: Key Purchase Considerations and Comparisons
- Fit and compatibility: Verify the bend type (inside vs outside), tray height, and the diameter range of cables or conduits supported. Aluminum fittings are lighter for longer runs, while steel variants offer higher load tolerance in certain environments.
- Space constraints: In cramped installations, inside bends minimize outward footprint; outside bends can offer greater clearance around obstructions but may extend the tray’s width.
- Load rating and durability: For heavy-duty applications, choose fittings with robust construction and UL or CSA listings. Consider environmental factors such as humidity, temperature, and exposure when selecting materials.
- Ease of installation: Look for fittings with straightforward mounting, dual-screw security (where applicable), and compatible fasteners to simplify field work and reduce labor time.
- Standards and compliance: Check that products meet applicable electrical codes and manufacturer guidelines for cable management systems in your region.
- Versatility: Having both inside and outside bend options, plus compatible glands and connectors, supports future system expansion and reconfiguration without replacing existing trays.
- Cost vs. value: While premium alloys and larger bends can improve durability, assess whether the expected service life and maintenance savings justify the investment for your specific installation.
- Non-tray accessories: Accessories like 90-degree cable glands and cable connectors can enhance protection where trays terminate near equipment, reducing strain on conductors.
Across these selections, designers and installers can tailor their approach to the geometry of the space, the routing path needed, and the anticipated cable load. The combination of inside and outside bends, along with compatible accessories, provides flexibility to maintain clean, compliant, and reliable cable management behind panels, in ceilings, or along mezzanines.
