Best Cable Fault Locating Equipment for Quick Diagnostics
Finding and fixing cable faults quickly is essential for maintaining network reliability and reducing downtime. This article features five reliable tools designed to locate opens, shorts, breaks, and other faults across electrical wires and optical fiber links. Each product is evaluated for ease of use, signal feedback, and applicability to common test scenarios, from automotive wiring to fiber optic networks.
| Product | Brand | Use Case |
|---|---|---|
| AWBLIN Wire Tracer | AWBLIN | Electrical wiring open/short, cable tracing |
| fyboptwu VFL Kit (VFL-30) | fyboptwu | Fiber fault locating, breaks and bends |
| fyboptwu VFL Kit (VFL-50) | fyboptwu | Fiber fault locating, advanced testing |
| NewMainOne Visual Fault Locator | NewMainOne | Fiber fault tracing, quick spot checks |
| WANLUTECH Tone Cable Tester | WANLUTECH | Network and PoE testing, fault location |
| VFLTOOL Visual Fault Locator | VFLTOOL | Fiber fault pinpointing, long-range checks |
| AEMC CA7027 Fault Mapper Pro | AEMC | Electrical cable fault mapping and impedance checks |
Below are five highly relevant options chosen for diverse fault-finding needs. Each section provides a concise overview, its key features, and how it supports rapid diagnosis in real-world environments.
AWBLIN Wire Tracer For Electrical Cables
The AWBLIN wire tracer is a multifunctional open/short finder designed to locate breaker points, open connections, and broken wires. It supports locating both insulation-preserving traces and leakage currents with tone changes. The kit is suitable for DIYers and professional technicians seeking a simple, quick continuity check. It uses both transmitter and receiver units, offering clear sound and LED indicators to confirm testing status. A low-battery indicator helps users maintain accuracy during fieldwork.
fyboptwu Visual Fault Locator Kit VFL-30
The fyboptwu VFL-30 kit offers a bright 650 nm visual fault locator for fiber tracing, enabling quick detection of breaks, poor connections, bends, or cracks. Its 2.5 mm universal connector supports ST, SC, FC, and various LC configurations, making it compatible with single-mode and multi-mode cables. The kit is compact and portable, featuring long battery life, constant output power, and a low battery warning, suitable for field testing and routine maintenance in telecom and data networks.
fyboptwu VFL-50 Fiber Fault Locator Kit
The VFL-50 variant expands upon the VFL-30 with similar compatibility and portability, designed for fast fiber fault identification. It supports testing across single-mode and multi-mode cables via the universal 2.5 mm connector and is engineered for reliable field use, with a focus on practical performance in telecom and network installations. It emphasizes quick fault localization and ease of use in busy environments.
NewMainOne Visual Fault Locator For Fiber Cables
The NewMainOne Visual Fault Locator provides a high-efficiency method to identify fiber faults by emitting a visible light glow around breakpoints, bends, and poor connections. It supports 2.5 mm universal connectors compatible with ST, SC, FC, and LC interfaces for both circular and square fiber designs. It is designed for field use, offering constant output power and long detection distances to support fiber tracing and reliability checks in CATV and network infrastructure tasks.

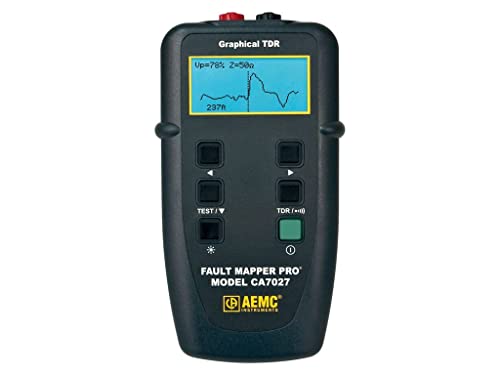

AEMC CA7027 Fault Mapper Pro
The AEMC CA7027 Fault Mapper Pro is designed for comprehensive cable fault mapping, offering 11 range scales to locate faults and terminations up to 19,000 ft (6000 m). It identifies impedance mismatches and can detect opens, shorts, taps, bridge taps, splices, and more across twisted pair, coaxial, and other cable types. The device supports selectable impedances (25, 50, 75, 100 ohms), enabling accurate fault diagnosis across various network configurations and installation environments.
Buying Guide: Key Purchase Considerations
- Application scope: Choose based on whether you primarily test electrical cables, automotive wiring, or fiber optic networks. Some devices cover multiple cable types, while others specialize in fiber fault location.
- Interface compatibility: For fiber testers, verify compatibility with ST, SC, FC, and LC connectors, and confirm support for both single-mode and multi-mode cables.
- Indicator feedback: Look for devices with audible tones, LED indicators, and clear display feedback to quickly identify fault points in noisy environments or under field conditions.
- Portability and battery life: Field work benefits from compact designs with long-lasting power sources and low-battery warnings to prevent mid-test interruptions.
- Measurement range and impedance options: For electrical testers, consider range scales and selectable impedances to match cable types and installation standards.
- Durability and ease of use: A simple, intuitive user interface reduces setup time and errors when working with dense cable runs or in tight spaces.
- Maintenance requirements: Some kits include replaceable batteries or easy-access components; factor this into lifecycle costs and downtime considerations.
- Brand and support: Reputable brands with documented support and documentation help ensure consistent performance across projects.
These tools collectively support efficient fault localization across electrical and fiber networks. Selection should align with the specific networks you maintain, existing connector standards, and whether you require quick spot checks or detailed fault mapping over long cable runs.
