Best Bolt-in Circuit Breakers for Home Panels
Choosing the right bolt-in circuit breaker is essential for safe and reliable electrical protection in American homes. This guide spotlights top Siemens bolt-in models that cover common amperages and configurations. Each product section includes key features, mounted use, and compatibility notes to help homeowners and pros compare options quickly.
Summary Table of Selected Products
| Product | Brand | Voltage / Poles | Amperage | KAIC | Key Feature |
|---|---|---|---|---|---|
| SIEMENS B120H 20-Amp | SIEMENS | 120V / 1 Pole | 20 | 22KAIC | Bolt-in, UL Listed |
| Siemens B220 Bolt-in 2-Pole | SIEMENS | 120/240V / 2 Pole | 20 | 10KAIC | 2-Pole, panel-ready |
| Siemens B250 50-Amp Double Pole | SIEMENS | 120/240V / 2 Pole | 50 | 10KAIC | High amp, bolt-in |
| Siemens B260 60-Amp Double Pole | SIEMENS | 120/240V / 2 Pole | 60 | 10KAIC | Heavy-duty protection |
| Siemens B215 15-Amp 2-Pole | SIEMENS | 120V / 2 Pole | 15 | 10KAIC | Time-saving insta-wire |
SIEMENS B120H 20-Amp Single Pole Bolt-In Breaker
The SIEMENS B120H is a 20-amp, 120-volt single-pole bolt-in circuit breaker designed for panel-board mounting. It carries UL Listing and is built for straightforward panel integration in typical residential electrical panels. With a 22 KAIC interrupting capacity, it aligns with standard residential protection requirements. Installers should verify panel compatibility and enclosure clearance before bolt-in mounting. This model suits circuits like lighting and receptacle branches in common home layouts.
Siemens B220 Bolt-in Circuit Breaker, 2-Pole, 20-Amp
This 2-Pole, 20-Amp bolt-in breaker provides simultaneous protection for multi-wire branch circuits and essential loads requiring balanced phases. Rated for 120/240V, it supports standard residential panel configurations. The B220’s 10KAIC interrupting capacity is suitable for typical home circuits, ensuring quick isolation during fault events. As with all bolt-in breakers, panel compatibility and correct torque during installation are important for reliable operation.
Siemens B120 20-Amp Single Pole 10KAIC Bolt in Breaker
This variant mirrors the single-pole 20-Amp design with a higher interrupting capacity rating of 10KAIC, delivering robust protection for standard lighting and small appliance circuits. UL Listing confirms compliance with electrical safety standards, and the panel-board mounting feature simplifies integration into compatible Siemens panels. Ensure proper alignment with bus stabs and panel space when replacing or adding this unit.
Siemens B250 50-Amp Double Pole Bolt-In Breaker
The B250 is a higher-capacity 50-Amp, two-pole bolt-in breaker, designed for larger branch circuits such as central air units or major appliances. It is UL Listed and intended for panel-board mounting in compatible Siemens panels. The double-pole design ensures simultaneous disconnection of both hot conductors, improving safety in high-load circuits. As with other bolt-in models, verify panel compatibility, torque values, and space before installation.
Siemens B260 60-Amp Double Pole Bolt-In Breaker
The B260 delivers 60-Amp, two-pole protection suitable for sizeable appliances or service entrance feeders within residential panels. With UL Listing and a panel-board mounting design, it maintains Siemens’ standard compatibility and safety assurances. When selecting this breaker, ensure the panel’s bus configuration and available space match the bolt-in mounting requirements and that the panel is rated to handle the higher amperage.

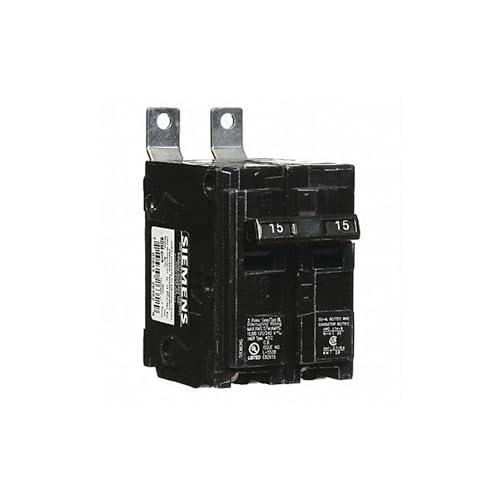

Siemens B215 Bolt-In Circuit Breaker, 120-Volt, 2-Pole
The B215 is a 15-Amp, 2-Pole bolt-in breaker with a 10KAIC rating. It supports time-saving insta-wire features and panelboard mounting, aiming to streamline installation in compact residential panels. This model is suitable for small multi-wire or high-safety-demand circuits where coordinated disconnection of both poles is beneficial. Confirm compatibility with your specific Siemens panel model and the required wire gauge before installation.
SIEMENS B130 30-Amp Single Pole Bolt-In Breaker
The B130 is a 30-Amp, single-pole bolt-in breaker designed for mediumsized loads such as kitchen circuits or larger lighting circuits. It is UL Listed and intended for panel-board mounting. This model offers a balance between protection and space efficiency in standard residential panels. Always verify that the panel supports bolt-in configurations and that the terminal torque is correctly set during installation.
Siemens B230 Panelboard Bolt-On Mount Type BL 2-Pole 30 Amp
The B230 is a 2-Pole, 30-Amp bolt-on/breaker variant designed for panelboard bolt-on mounting configurations. It is noted as Made in Mexico and is suitable for Siemens panel families that accept bolt-on style breakers. Installation should ensure proper alignment with the panel’s bus bar and secure mounting to maintain reliable fault protection over time.
Buying Guide: Key Purchase Considerations
- Panel compatibility: Verify the breaker model number is designed for your specific Siemens panel and mounting style (bolt-in vs bolt-on, and panel board designation).
- Amperage and poles: Choose amperage and pole count that match the circuit needs and ensure there’s space in the panel for the new breaker.
- Interrupting capacity: KAIC ratings indicate maximum short-circuit current the breaker can safely interrupt. Match this to your service’s fault current potential.
- Voltage rating: Most residential breakers are rated for 120/240V. Confirm the voltage range aligns with the circuits you plan to protect.
- UL Listing and safety: Use UL-listed breakers to ensure compliance with electrical codes and panel requirements.
- Installation specifics: Bolt-in/bolt-on mechanisms require proper torque and alignment with bus bars. Follow manufacturer instructions and use the correct tools.
- Application scope: Some models are better suited for high-load appliances (B250/B260), while others are ideal for lighting or receptacle circuits (B120, B120H, B130).
- Physical clearance and space: Ensure adequate clearance around the breaker for heat dissipation and service access.
- Future planning: If expanding a panel, consider keeping matching models for consistency and easier future maintenance.
