Best Adjustable Differential Pressure Switches for HVAC and Beyond
Choosing the right adjustable differential pressure switch is essential for reliable HVAC operation, boiler control, and system safety. This guide highlights five top options that offer precise set points, robust construction, and versatile mounting. Each product features a clear pressure range, materials suited for air, water, and non-corrosive liquids, and easy installation for both DIY enthusiasts and professionals.
Summary Table
| Product | Brand | Measuring Range | Medium | Key Features |
|---|---|---|---|---|
| HVAC Differential Pressure Switch LF32-05 | Tissting | 50–500 pa (sensing 20 pa) | Air | Waterproof, complete accessories |
| Fdit Adjustable Differential Air Pressure Switch | Fdit | 125–250 V (switch type) | Air | Double mode, OEM-friendly |
| ANWOLL Pressure Controller 10–150 psi | ANWOLL | 10–22 psi differential | Air, water, oil, steam | SPDT, external circuit ON/OFF |
| Johnson Controls P74FA-5C | Johnson Controls | 8–60 psi | Air | Enclosed contact mechanism |
| FYIZO Universal 0.15”–2.0” WC | FYIZO | 0.15”–2.0” WC | Air | Universal adjustable, quick field calibration |
Hvac Differential Pressure Switch LF32-05
The LF32-05 differential pressure switch from Tissting is designed for HVAC environments, measuring 50–500 pa with a 20 pa sensing capability. It specifies air as the measuring medium and supports a gas pipe connection of 8×5 mm. The device is built to withstand temperatures from -20°C to 85°C, making it suitable for furnace and ventilation applications. The package includes essential installation accessories for a straightforward setup, including tubing, pressure conduits, and mounting screws. It is a mechanical, non-hazardous solution intended for precise pressure monitoring in air handling systems.
Key considerations include the device’s accuracy in sensing small differential pressures and the durability of its mechanical interface. The LF32-05 is suitable for users who need a compact, rugged switch with a broad measurement range and reliable operation in HVAC installations. When choosing, verify compatibility with existing piping connections and the required electrical configuration for your control circuit.
Fdit Adjustable Differential Air Pressure Switch
This Fdit unit features a micro switch design aimed at high-current switching with two modes: mechanical differential or delay. It offers built-in and external variants, with a compact form factor intended to fit OEM products and space-constrained installations. The switch can handle a range of voltages and is designed for environments requiring precise differential pressure detection with a reliable quick-changeout capability. This makes it a versatile option for HVAC components and appliance applications where differential pressure control is critical.
When evaluating, consider the intended electrical load, the presence of a built-in versus external version, and how the switch’s timing characteristics may affect system responsiveness. The Fdit model is well-suited for projects needing a flexible, cost-effective differential switch for OEM integration or retrofit applications in HVAC and related equipment.
ANWOLL Pressure Controller 10–150 psi
The ANWOLL pressure controller offers a broad 10–150 psi differential range with a 10–22 psi dedicated differential window. It uses SPDT contact wiring and a NPT 1/4 connection, making it suitable for external circuit ON/OFF control in systems handling air, water, oil, and steam. This model emphasizes versatility for boiler and water tower applications, ensuring safe operation through reliable actuation and a robust enclosure that resists typical HVAC environments. It’s a good fit where precise differential settings are necessary across multiple non-corrosive media.
Key decision factors include whether the external circuit needs ON/OFF control directly, the compatibility of the NPT connection with your piping, and whether the media handled aligns with your system’s substance compatibility. The ANWOLL unit emphasizes dependable performance in mixed-media applications and is commonly chosen for boiler and tower control scenarios.
Johnson Controls P74FA-5C Differential Pressure Control
The Johnson Controls P74FA-5C is a field-proven differential pressure control with a completely enclosed contact mechanism and a 1/4″ external flare. The differential pressure setting is adjustable, and the device is commonly used for chillers or water-cooled condensers, offering reliability in demanding HVAC environments. Its sealed design helps protect internal electronics from moisture and contaminants, making it suitable for rugged installations where maintenance access is limited.
Considerations include enclosure protection, ease of access for adjustment, and whether the P74FA-5C’s pressure range aligns with your system’s required setpoints. For facilities relying on established Johnson Controls products, this model provides consistent performance and compatibility with broader control architectures.
FYIZO Universal 0.15”–2.0” WC
The FYIZO FYZ-15-SW12 is a universal adjustable pressure switch designed to cover a wide range of needs, from 0.15” to 2.0” water column. It is built to detect positive, negative, and differential pressure, enabling use across HVAC systems, kitchen hoods, outdoor heaters, and pool/spa equipment. A keyed adjustment cover and an Allen wrench facilitate straightforward calibration in the field, helping technicians quickly set precise setpoints for varied installations.
When selecting this model, assess its calibration ease, compatibility with your control circuit, and whether the wide adjustable range benefits your application. The universal design makes it a strong candidate for multi-use environments where a single switch must accommodate different pressure conditions over time.
ANWOLL 5–50 psi Differential Pressure Switch
This ANWOLL model covers a 5–50 psi pressure range with a 4–14 psi differential window. It uses SPDT contact configuration and a 1/4″ NPT connection, suitable for external circuit ON/OFF control. The device is designed for non-corrosive media, including air, water, oil, and steam, and excludes chlorine-containing liquids. The combination of reliable actuation and a compact footprint makes it a practical option for boiler and HVAC applications where moderate differential settings are required.
Selection considerations include the required differential range, media compatibility, and wiring configuration. The ANWOLL series offers a balance of affordability and dependable performance for standard HVAC and boiler control tasks where a robust, adjustable switch is needed.

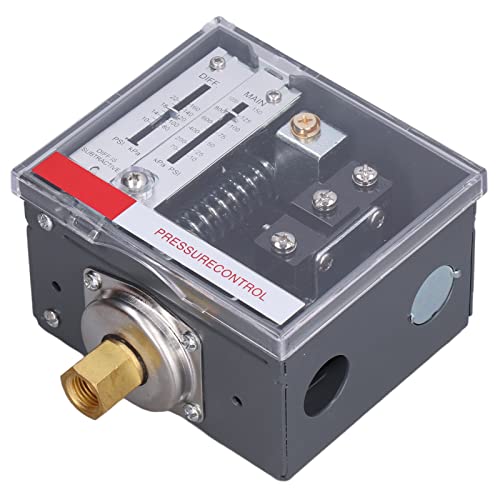

KUULEYN Pressure Controller 225 psi
The LEFOO/Kuuleyn pressure controller is designed for boiler and water tower applications with a high-pressure capability of up to 225 psi and SPDT contact wiring. It features LF56 stainless steel and brass options, with a focus on pressure limiting and alarming functions for non-corrosive liquids, gases, and steam. The unit provides a clear view of the pressure control point through a plastic-covered window, aiding quick inspection. It emphasizes safe on/off control via changes in pressure, making it suitable for safety-critical systems where visible monitoring is advantageous.
Key considerations include the maximum operating pressure, material compatibility for the specific fluids, and how the unit’s visual pressure indicator supports routine checks. This model is well-suited for demanding boiler and pump systems that require a robust, high-pressure differential switch with clear status indication.
Buying Guide: Key Purchase Considerations
- Pressure range and differential: Match the switch’s setpoint range with your system’s operating window. Consider both the nominal range and the precise differential needed for stable control.
- Medium compatibility: Confirm the switch is designed for the intended media (air, water, oil, steam, non-corrosive liquids) and verify any restrictions on hazardous or chlorine-containing fluids.
- Electrical configuration: Check contact type (SPDT or other), maximum current, and required control wiring. Ensure the mounting and connection standard (NPT, flare, etc.) fits your equipment.
- Environmental durability: Look for temperature ratings, enclosure protection, and resistance to moisture or dust in HVAC environments or boiler rooms.
- Installation and calibration: Assess how easy it is to set points in the field, including access to adjustment screws or covers and any necessary tools (Allen keys, wrenches).
- Maintenance and replacement: Consider devices with readily available replacement parts and clear warranty terms. Enclosed contact mechanisms can reduce corrosion risk in damp spaces.
- Application scope: Evaluate whether a universal or OEM-specific switch better suits your project, particularly for retrofits or multi-use environments.
- Safety and compliance: Ensure the product meets relevant standards for your installation, especially in commercial or industrial settings with strict safety requirements.
In selecting an adjustable differential pressure switch, weigh the balance between adjustable range, environmental durability, and compatibility with your control system. The reviewed options provide a spectrum from compact HVAC-focused switches to high-pressure variants suitable for boilers and condensers, enabling informed decisions based on application needs, maintenance expectations, and system safety.
