Best AC Disconnect Box With Outlet for Outdoor Units and Mini Splits
Choosing the right AC disconnect box with an outlet is essential for safe maintenance and reliable outdoor air conditioning service. This guide highlights five reliable options, showcasing how each unit safely disconnects power, provides weatherproof protection, and includes convenient outlets or GFCI receptacles. Read on to compare features, enclosure types, and installation considerations to find the best match for residential or light commercial HVAC needs.
Summary of chosen products
| Product | Brand | Key Feature | Enclosure | Rating |
|---|---|---|---|---|
| TFN60RGFRCP 60A AC GFCI Disconnect | ABB | GFCI receptacle built-in, 60A disconnect | Weatherproof, NEMA 3R | UL listed |
| SURAIELEC 60 Amp Non-Fused AC Disconnect Box | SURAIELEC | Independent GFCI receptacle on separate circuit | ETL listed, weatherproof metal enclosure | NEMA 3R |
| Milbank U3822-20GWR 60A Disconnect | HIGDM | Non-fusible disconnect with GFCI | Metal enclosure | NEMA 3R |
| Z PDBX-60AN 6 Pack AC Disconnect Box | Z | Non-fused pull-out disconnects, 60A | Metal enclosure | Outdoor rated |
| BRILLTECH 60AMP 240V Outdoor AC Disconnect | BRILLTECH | Rugged metal case, weather-resistant | Type 3R outdoor enclosure | UL listed |
ABB TFN60RGFRCP 60A AC GFCI Disconnect
The ABB TFN60RGFRCP provides a secure power disconnect for air conditioning units with a built-in GFCI receptacle. This 60A, 240V AC disconnect uses a non-fusible pull-out design, simplifying maintenance work while eliminating the need for fuses during service. The unit is suitable for indoor and outdoor setups, including pools and spas, and its weatherproof construction aligns with UL and ANSI safety standards.
SURAIELEC 60 Amp Non-Fused AC Disconnect Box
The SURAIELEC model features a 60A, 240V non-fused AC disconnect with a pull-out switch and a separate GFCI receptacle on its own circuit. The galvanized steel enclosure is ETL listed and rated for outdoor use (NEMA 3R), delivering reliable weather resistance for harsh environments. Its design emphasizes visible ON/OFF control and ease of maintenance for mini-splits and outdoor HVAC equipment.
Milbank U3822-20GWR 60A Disconnect with GFCI
The Milbank U3822-20GWR is a two-pole, 60A, 240V non-fusible AC disconnect switch featuring an integrated GFCI receptacle. Its rugged metal enclosure supports outdoor installation with a focus on safety and straightforward operation. This option is well-suited for reliable service disconnects on outdoor air conditioning systems and similar equipment.
Z PDBX-60AN 6 Pack AC Disconnect Box
The Z PDBX-60AN set includes six 60A 240V non-fused disconnect boxes with pull-out switches, designed for easy replacement and service. These metal enclosures provide dependable protection in outdoor environments, supporting multiple outdoor units or circuits with consistent disconnect capability.
BRILLTECH 60AMP 240V Outdoor Disconnect Box
The BRILLTECH outdoor disconnect uses a rugged metal enclosure and a pull-out switch, rated for 60A at 240V. It features a Type 3R weather-resistant design suitable for outdoor installation with UL listing. This option is aimed at reliability for homes and light commercial HVAC applications requiring durable service disconnects.
CHGAOY 30 Amp Outdoor AC Disconnect
The CHGAOY 30A disconnect is an all-metal, weatherproof enclosure with a pull-out switch. It operates at 120/240VAC single-phase (2-pole, 3-wire) and is UL certified for safety. This option suits outdoor installations for smaller AC units or for systems where 30A capacity meets the load requirements, offering robust outdoor protection.
CHGAOY Pack of 2 30 Amp Outdoor Disconnects
This pack provides two 30A outdoor AC disconnect boxes to cover multiple units or zones. With a weatherproof all-metal enclosure and a pull-out switch, these boxes are suitable for outdoor HVAC setups where 30A per circuit is adequate. Fused options are not included in this set, aligning with non-fused designs for service simplicity.

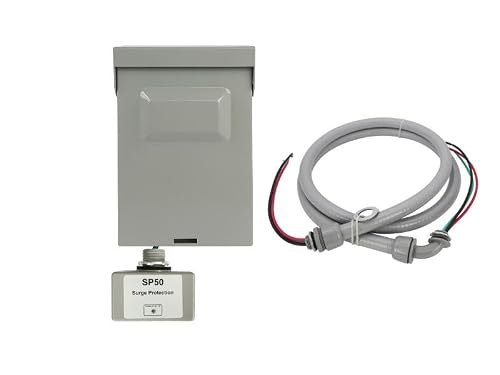

A/C Disconnect Switch With-Fused 30A Kit
This kit combines a fused 30A disconnect with an outdoor-rated enclosure, providing a robust solution for 30A, 120/240VAC HVAC circuits. It includes a whip kit and connectors, delivering a complete installation option for households seeking a fused disconnect option with a durable metal enclosure and UL safety listing.
Buying Guide: Key Considerations For Choosing An AC Disconnect Box With Outlet
- Disconnection capability: Verify amperage and voltage ratings match your outdoor unit’s requirements. Common choices are 30A and 60A at 240V, with non-fused or fused designs depending on local codes and protection needs.
- GFCI and receptacle options: A built-in GFCI outlet offers enhanced safety for service tools and maintenance equipment. Consider whether an independent GFCI circuit is preferred for the outlet or if a combined receptacle suffices.
- Enclosure rating and material: Outdoor installations benefit from metal, weatherproof enclosures with NEMA 3R or similar ratings. Corrosion resistance and weather sealing extend the life of the unit in sun, rain, and seaside environments.
- Pull-out switch design: Pull-out handles provide clear ON/OFF indication and reduce accidental energization during servicing. Ensure the mechanism stores safely in the OFF position when not in use.
- UL/ETL listings and safety standards: Look for units that are UL listed or ETL listed to comply with electrical safety standards and local codes.
- Size and mounting: Measure space for the enclosure, conduit entry points, and knockouts. Some units offer multiple knockouts or mounting styles to align with existing electrical runs.
- Future expansion: If you plan to service additional outdoor units, consider a model with extra capacity or compatible kits to avoid replacing the box later.
- Fused vs non-fused: Fused models add protection via fuses, suitable for certain installations and code requirements. Non-fused designs simplify maintenance and are common for standard disconnects.
- Installation context: For pools, spas, or unusually harsh environments, prioritize rugged, corrosion-resistant, weatherproof enclosures with robust seals and durable handles.
These considerations help ensure the selected AC disconnect box with outlet delivers reliable power shutdown when servicing outdoor HVAC equipment, while reducing risk to technicians and protecting equipment from environmental elements.
