Best 90 Degree Header Collector Guide for Dust Systems and Hoses
Finding the right 90 degree header collector or elbow is essential for maintaining airflow and minimizing clogs in dust collection setups. This guide highlights five reliable ABS plastic and steel options that fit common dust collection ports, hoses, and adapters. Each product emphasizes airtight right-angle connections, compatibility with standard diameters, and easy integration with existing POWERTEC components and similar systems. Read on to compare their fit, material, and versatility for a clean, efficient dust collection workflow.
| Product | Brand | Diameter | Material | Key Benefit |
|---|---|---|---|---|
| POWERTEC 70344V 2-1/2″ OD 90 Degree Elbow | POWERTEC | 2.5″ ID | ABS Plastic | Airtight right-angle connection for 2-1/2″ systems |
| POWERTEC 70105V 4″ 90 Degree Elbow | POWERTEC | 4″ ID | ABS Plastic | Seamless 4″ dust hose compatibility |
| POWERTEC 70336 2-1/2″ OD 90 Degree Elbow | POWERTEC | 2.5″ ID | ABS Plastic | Clear variant for visibility in airflow |
| Hedman 21100 3″ Collector to 2-1/4″ Exhaust Reducers | Hedman | 3″ to 2-1/4″ | Mild Steel | Pair reducers for adaptable exhaust sizing |
The products above address common needs in residential and small-shop dust collection: tight, right-angle connections that minimize turbulence, compatible hose diameters, and straightforward installation. This article presents practical considerations, a quick comparison, and buying guidance to help you choose based on diameter, material, and system compatibility.
POWERTEC 70344V 2-1/2″ OD 90 Degree Elbow
The POWERTEC 70344V elbow is designed for 2-1/2″ ID dust collection systems. It provides an airtight 90-degree connection that helps maintain consistent airflow through hoses and fittings. To fit a 2-1/2″ OD port, users may need a Rubber Coupling like POWERTEC 70148 Dust Control Flex Cuff. This elbow is described as versatile, working well with woodworking tool dust ports and other POWERTEC hoses and attachments, making it a flexible choice for a variety of shop layouts.
POWERTEC 70105V 4″ 90 Degree Elbow
The POWERTEC 70105V elbow targets 4″ dust ports with an airtight 90-degree connection. It is compatible with 4” ID dust hoses, pipes, and fittings, and may require a rubber coupling such as POWERTEC 70149 to accommodate a 4” OD port. This option is described as versatile and suited for various woodworking dust collection ports and POWERTEC hoses, supporting sturdy, right-angle turns where space is limited.

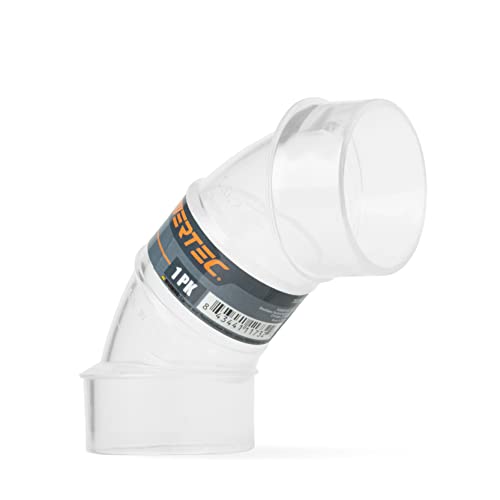

POWERTEC 70336 2-1/2″ OD 90 Degree Elbow (Clear)
The 70336 variant provides the same 2-1/2″ ID elbow capability but with a clear body. This can help users visually inspect airflow and moisture within the elbow during operation. It also notes the need for a Dust Control Flex Cuff (POWERTEC 70148) to fit 2-1/2” OD ports, ensuring a secure, airtight connection. Its versatility makes it a practical choice for shop setups requiring quick inspection of flow without disassembly.
Hedman 21100 Reducer Pair (3″ to 2-1/4″)
The Hedman 21100 set includes two reducers plus bolts and gaskets, manufactured in the USA from mild steel. This pair is designed to adapt exhaust dimensions, allowing a smoother transition from a larger collector outlet to smaller exhaust lines. While not an elbow, these reducers complement header-to-duct configurations where a universal fit is needed for different system segments, offering durable metal construction for heavier-duty installations.
Buying Guide: Key Considerations For 90 Degree Header Collectors
When selecting a 90 degree header collector or elbow, consider diameter compatibility, material, installation method, and system compatibility. ABS plastic elbows, like POWERTEC options, offer lightweight, corrosion-resistant performance and affordable replacements for woodshop dust collection. Clear variants support airflow visibility, which can be useful for diagnosing blockages or moisture buildup. For larger systems, steel reducers such as Hedman units provide durability and reliable performance under higher pressures and temperatures, though they may require more robust mounting.
Diameter and fit are critical. Ensure the elbow ID matches your dust hose or pipe and verify whether a rubber coupling is required to accommodate OD ports. Some products imply the need for a flex cuff to maintain an airtight seal. If your system uses a combination of hoses and ports, choosing elbows that align with both ends and provide a straightforward path reduces turbulence and improves suction efficiency.
Material choice affects longevity and maintenance. ABS plastic is common for hobby and light commercial use, offering resistance to dust and moisture while remaining light. Steel reducers and adapters deliver maximum durability for heavy-duty setups but may require gaskets, bolts, or seals. Consider your shop environment, cleaning frequency, and expected airflow requirements when deciding between plastic and metal components.
Visiblity and inspection can influence some buyers. Clear elbows allow quick checks of airflow and moisture within the elbow, aiding in diagnosing clogs or condensate accumulation before it impacts performance. If you anticipate rapid wear or abrasion, metal options with proper coatings may be more suited to extended service life.
Compatibility with other components is essential for a cohesive system. Check whether you need additional adapters, such as dust control flex cuffs, to connect elbows of different diameters. Review your existing hoses, ports, and fittings to minimize the number of joints, which can become weak points or culprits for air leaks. A well-matched set of elbows and reducers helps maintain smooth airflow from the tool port to the dust collector.
Pricing and replacement availability are practical considerations. While plastic elbows are typically affordable and easy to replace, metal reducers and adapters might incur higher upfront costs but offer longer service life in demanding environments. Always verify vendor compatibility, especially if you mix brands, to ensure a secure fit and airtight seal.
Finally, installation ease matters for busy workshops. Quick-connect designs and standardized diameters simplify setup and maintenance. Consider labeling and organizing your elbows by diameter and port type to speed future renovations or expansions, ensuring that your dust collection system remains efficient as tools and workflows evolve.
