Best 800A Enclosed Circuit Breaker Solutions for Safe Electrical Systems
When designing or upgrading electrical installations, selecting a reliable 800A enclosed circuit breaker is essential for protecting equipment and personnel. This guide highlights five top options, covering AC and DC applications, molded-case designs, and rugged Marine/industrial varieties. Each product is evaluated for trip performance, enclosure rating, and suitability for rapid fault isolation. Readers will gain practical buying criteria to match their voltage, current, and environmental requirements.
| Product | Brand | Voltage/Current | Enclosure | Notes |
|---|---|---|---|---|
| Enclosed Circuit Breaker, 800 Amp | IE TRAP | 480VAC, 800A | NEMA 3R | LSIG trip unit, arc flash mitigation |
| DIHOOL 800 Amp DC Circuit Breaker | DIHOOL | 1000-1500V DC, 800A | DC rugged | Thermal magnetic trip, high short-circuit ratings |
| SCHNEIDER ELECTRIC MGA36800 | Schneider Electric | 480Y/277V, 800A | Molded Case | Ultra-reliable MCCB |
| AZVBOEVE CM1-3p 800A | AZVBOEVE | Various, 400-800A | Molded case | Motor contactors compatible |
| CDM3-800F/3300 800A | Generic | 3P, 800A | Molded Case | Three-phase protection |
The following sections provide deeper dives into each option, outlining key features, typical use cases, and what makes them suitable for an 800A enclosed circuit breaker role. This information helps engineers compare performance, installation practicality, and long-term reliability across environments such as industrial plants, data centers, and marine applications.
Enclosed 800A With 65KA Trip Unit
This IE TRAP unit is designed to remediate elevated arc flash energy and lowers injury risk by enabling rapid fault isolation. With a purpose-built LSIG trip unit, it supports enhanced protection for 480VAC systems up to 800A. The NEMA 3R enclosure makes it suitable for outdoor environments, while UL certification underscores compliance and reliability in industrial settings. The configuration is particularly compelling for facilities prioritizing worker safety without compromising protection levels in mid- to high-current applications.
800 Amp DC Circuit Breaker Heavy Duty
DIHOOL’s DC-focused model targets high-voltage battery DC systems with 1000V–1500V working range and 800A capacity. It features a thermal magnetic trip mechanism for reliable overload protection and short-circuit control. With high short-circuit breaking capacities (20kA at 1000V and 40kA at 1500V), this unit is well-suited for battery storage, EV charging, and marine/DC hybrid installations where quick disconnection protects sensitive equipment and reduces fire risk. Its robust construction supports demanding environments.
Schneider Electric 800A Molded Case
Schneider Electric’s MGA36800 is a molded case circuit breaker rated at 800A for 600V-class applications, with a focus on robust performance and serviceability. The unit’s compact MCCB design supports reliable overload and short-circuit protection for typical industrial feeders and distribution panels. Its compatibility with a broad range of accessories and simple installation makes it a practical choice for facilities seeking industry-standard components with predictable performance and long-term availability.
AZVBOEVE CM1-3P 800A Molded Case
AZVBOEVE’s CM1-3P series offers 800A capacity with a molded case design suitable for 400–800A ranges. This unit supports motor contactor integration and can be an efficient choice for switchgear assemblies and distribution panels requiring a compact, reliable overcurrent protection device. The 3-pole configuration aligns with typical three-phase systems, helping to maintain balanced protection across phases while simplifying wiring and maintenance.
800A Three-Phase Molded Breaker CDM3-800F
The CDM3-800F model presents a three-phase 800A molded case solution designed for large distribution systems. It emphasizes robust protection for heavy-load feeders and aligns with common MCCB configurations used in industrial plants. Its design supports straightforward integration into existing panels and switchboards, delivering dependable interruption performance and consistent trip behavior across loads and fault conditions.

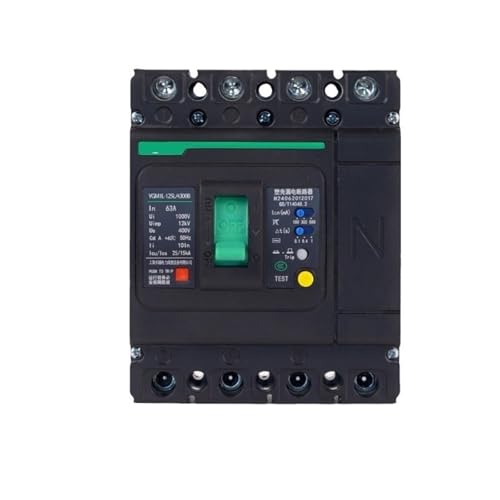

AFITSEP M1L-800 Leakage Protection Breaker
AFITSEP’s M1L-800 provides leakage protection alongside classic overcurrent protection. This unit emphasizes safety with rapid fault disconnection to prevent damage and fires. It enhances power quality and reliability while supporting energy-saving considerations through optimized trip coordination. Suitable for systems requiring both short-circuit protection and ground fault detection, such as data centers or mixed-use industrial facilities.
Bolipoeq 80A DC Switch With IP67
While not 800A, this Bolipoeq unit demonstrates the breadth of DC protection options in harsh environments. It’s IP67 waterproof and suitable for marine and automotive circuits with DC loads. The manual reset feature supports controlled isolation and recovery, making it a useful companion in systems where smaller DC protection nodes must be easily managed in challenging conditions.
Buying Guide
- Application voltage and type: Decide between AC and DC breakers. DC systems often require higher short-circuit ratings and specialized trip curves.
- Enclosure and environmental rating: NEMA/IEC enclosure standards (e.g., NEMA 3R) protect against moisture, dust, and weather exposure. Outdoor installations benefit from rugged enclosures.
- Current rating and trip technology: An 800A rating should be paired with a suitable trip unit (thermal-magnetic, LSIG, or advanced electronic trip) to balance nuisance trips and safety.
- Short-circuit breaking capacity: Check kA ratings appropriate for your system fault levels. Higher kA ratings improve fault clearance in large facilities.
- Maintenance and lifecycle: Consider ease of testing, available accessories, and serviceability to minimize downtime.
- Compatibility with existing gear: Ensure MCCB compatibility with current switchgear, motor starters, and control wiring.
- Regulatory compliance: UL/IEC certifications ensure product reliability and acceptance in critical installations.
In summary, selecting an 800A enclosed circuit breaker requires aligning current, voltage, and environmental demands with robust protection features. The products highlighted herein cover a spectrum of AC and DC use cases, from outdoor industrial panels to marine DC systems, providing engineers with practical options to meet safety and reliability objectives.
