Best 8/3 MC Cable Solutions for Safe, Reliable Power Distribution
When choosing 8/3 MC cables, focus on durability, temperature tolerance, and compliance with NEC standards for both indoor and outdoor installations. This guide highlights five top options that balance rugged build, copper conductivity, and practical applications for commercial, industrial, and residential projects. Each product is best for different environments—from harsh outdoor locations to indoor branch circuits—so you can match the right cable to your specific use case.
| Product | ||||
|---|---|---|---|---|
| MOOKEERF 8/3 MC Cable with Ground – 100FT | 100 ft | 8 AWG, 3 conductors, THHN/THWN, Black/White/Red | Steel interlocked armor | Industrial HVAC and heavy-duty branch circuits |
| MOOKEERF 8/3 MC Cable with Ground – 50FT | 50 ft | 8 AWG, 3 conductors, THHN/THWN, Black/White/Red | Steel interlocked armor | Shorter runs in commercial facilities |
| Kimbluth 8/3 MC Cable with Ground – 75ft | 75 ft | 8 AWG, 3 conductors, copper | Aluminum armor | Outdoor or mixed indoor/outdoor installs |
| Stock Wire 8/2 MC Cable with Ground – 100ft | 100 ft | 8 AWG, 2 conductors, aluminum jacket | Aluminum armor jacket | General purpose MC cable for light commercial |
| WesBell 8/3 MC Cable with Ground – 50ft | 50 ft | 8 AWG, 3 conductors, bare copper | Aluminum armor | Outdoor or exposed installations |

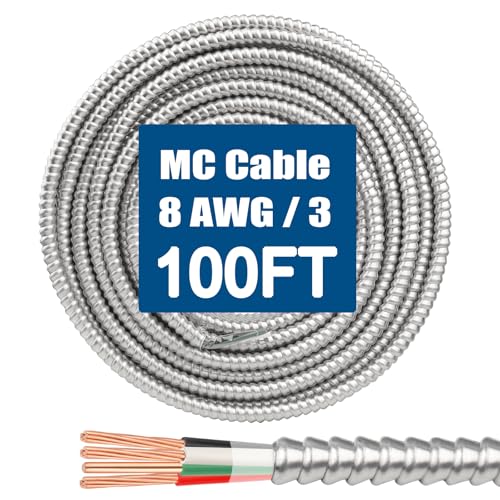

MOOKEERF 8/3 MC Cable With Ground – 100ft
Product overview: This Type THHN/THWN cable uses 8 AWG conductors and a 10 AWG ground, with a 600V rating. It features heavy-duty steel interlocked armor that protects against moisture, corrosion, and physical damage. The insulation and metal sheath are rated for up to 90°C dry and 75°C wet environments, making it suitable for harsh industrial settings and high-risk zones in commercial buildings. It complies with NEC Article 330 for exposed or concealed use in both dry and wet locations.
Best for: This model is ideal for HVAC, lighting, and branch circuits in factories or large commercial facilities where outdoor exposure or rugged conditions are present. The robust armor offers superior protection against impact and moisture, while the pure copper conductors ensure reliable current delivery.
Limitations: The heavier metal armor increases stiffness and weight, which may complicate routing in tight spaces. Also, installation requires appropriate terminations designed for MC cables with steel armor.
YDDECW 8/2 MC Cable With Ground – 100 ft
Product overview: This 8/2 MC cable uses a rugged aluminum jacket and 7-strand 1.23mm copper conductors with a 10 AWG ground, rated for 600V. It is designed for outdoor and industrial use, offering corrosion resistance and reliable heat absorption relative to non-copper options. The aluminum armor provides weather resistance while maintaining flexibility, making it suitable for exposed runs or underground installations in harsh environments.
Best for: Choose this if you need a leaner 8/2 configuration for outdoor installations or where aluminum armor is a priority for weather resistance and ease of handling. It’s well-suited for simple branch circuits or lighting runs in external commercial spaces.
Limitations: This model uses 8/2 rather than 8/3, so it may not cover all conductor needs for three-phase or multi-location feeds in a single run. Verify your circuit layout before selecting.
MOOKEERF 8/3 MC Cable With Ground – 50ft
Product overview: This 50-foot version mirrors the 100-foot model, offering 8 AWG/3 conductors with a 10 AWG ground, 600V rating, and similar RoHS compliance. The steel interlocked armor provides robust protection for short to medium-length runs in demanding environments. It’s UL-listed and NEC-compliant for dry and wet locations.
Best for: Ideal for shorter installations within large facilities, where space constraints limit cable length yet high durability is needed. It’s a good match for temporary builds or split-level electrical runs in commercial spaces.
Limitations: Shorter cable length means more joints in the same area, which can introduce more potential points for moisture ingress if not properly sealed at terminations.
Kimbluth 8/3 MC Cable With Ground – 75ft
Product overview: This 8/3 MC cable uses solid copper conductors and a 10 AWG ground with aluminum armor. The insulation and metal jacket are designed to withstand temperatures up to 90°C, aligning with UL 83, UL 1569, and UL 2556 standards. The aluminum armor offers corrosion resistance and flexibility for outdoor or mixed indoor-outdoor use, meeting NEC Article 330 requirements for exposed or concealed applications.
Best for: A solid choice for outdoor utility runs and locations with exposure to weather, heat, or humidity. The aluminum armor reduces weight and improves flexibility compared with heavier steel armor.
Limitations: Aluminum armor may not provide the same level of impact protection as steel interlocked armor in certain high-risk industrial settings; confirm site risk factors before selection.
Stock Wire 8/2 MC Cable With Ground – 100ft
Product overview: This 8/2 MC cable features aluminum armor and stranded copper conductors with a 10 AWG ground. It is designed for multiple applications, including branch and feeder runs in commercial, industrial, and multi-residential construction. The aluminum armor provides outdoor durability and EMI protection, with a 55 Amp THHN rating noted in its description.
Best for: Suitable for general-purpose MC cabling where outdoor exposure and flexible routing are required. It offers practical balance between durability and ease of installation for moderate-power circuits.
Limitations: Being 8/2 rather than 8/3 means it supports two conductors plus ground. Ensure your project needs align with a two-conductor setup before selecting.
Buying Guide: 8/3 MC Cable Essentials
What is MC Cable and when should I use it?
Metal Clad (MC) cable is a protective, armored electrical cable designed for both indoor and outdoor use. It combines conductors with a metal outer sheath that resists physical damage, moisture, and abrasion. Use MC cable for exposed installations, outdoor runs, industrial environments, and locations where conduit is impractical or code requires rigid protection for the wiring.
Which armor type is best for my site?
Steel interlocked armor offers maximum protection against impact and moisture, ideal for harsh industrial environments. Aluminum armor provides durability with lighter weight and greater flexibility, better for outdoor conditions where corrosion resistance and easier handling matter. For vertical installations or exposed outdoor routes, aluminum armor can simplify routing while still meeting safety standards.
How do conductor size and temperature ratings affect choice?
8 AWG conductors deliver substantial current capacity for 600V systems. Temperature ratings of 90°C dry/75°C wet allow operation in spaces with higher ambient temperatures or moisture exposure. Ensure terminations, breakers, and devices are compatible with these ratings, and verify that the location’s ambient temperature will not exceed the conductor’s rating.
When to prefer 8/3 versus 8/2 configurations?
Choose 8/3 when you need three conductors plus a ground for complex circuits (two hot legs and a neutral plus ground). Opt for 8/2 when a two-conductor plus ground configuration suffices for the circuit. Ensure compliance with NEC rules for conductor count and equipment grounding in your specific application.
What installation considerations matter?
Inspect for moisture exposure, chemical exposure, and physical hazards where cables will run. Use proper clamps, connectors, and terminations designed for MC cables. Avoid tight bends that exceed the cable’s minimum bend radius, and plan routing to minimize the number of terminations in outdoor or dirty environments.
Are there practical maintenance tips?
Inspect armor and jacket integrity during routine electrical maintenance. Look for corrosion, kinks, or physical damage after heavy machinery movement. Ensure sealants or enclosures around terminations remain intact to maintain moisture resistance and insulation integrity.
How to compare these five options quickly?
- Best for longest runs and maximum protection: MOOKEERF 8/3 MC Cable With Ground – 100ft.
- Best for shorter or room-constrained runs: MOOKEERF 8/3 MC Cable With Ground – 50ft.
- Best for outdoor and mixed indoor/outdoor installs with lighter armor: Kimbluth 8/3 MC Cable With Ground – 75ft.
- Best value for general purpose with outdoor durability and two conductors: Stock Wire 8/2 MC Cable With Ground – 100ft.
- Best option for outdoor or exposed installations with easy handling: WesBell 8/3 MC Cable With Ground – 50ft.
Frequently Asked Questions
- What does MC stand for in MC cable?
MC stands for Metal Clad. It indicates an armored cable with a protective outer sheath designed for rugged environments.
- Can MC cables be used outdoors?
Yes, MC cables with aluminum or steel armor are designed for outdoor or exposed installations, providing moisture and abrasion resistance.
- What conductor material is common in these cables?
Most options use copper conductors for high conductivity and reliability, with aluminum armor jackets for added protection and flexibility in some models.
- Is 8 AWG appropriate for residential use?
8 AWG is commonly used for medium to high-current circuits, including certain branch circuits and feeders. Always follow local code requirements and consult a licensed electrician.
- What should I consider when sizing MC cable for a project?
Consider current load, distance (voltage drop), temperature rating, environment (wet/dry), and the number of conductors required. Ensure compatibility with NEC Article 330 and relevant local codes.
- Are there safety concerns using metal clad cable?
Yes. Follow proper termination practices, use compatible fittings, and ensure that terminations, panels, and enclosures are rated for MC cables with the appropriate armor and conductors.
