Best 63 Amp Changeover Switches for Power Switching
Protect power systems and simplify switching between sources with reliable 63A changeover switches. This guide highlights five top options designed for high-current, three-phase and two-pole configurations, featuring 660V Uis, multiple positions, and sturdy housings. Whether you need exterior boxes, master switches, or compact 12-terminal assemblies, these selections balance durability, ease of installation, and safe operation for solar and grid applications.
| Brand | Model | Poles/Positions | Voltage / Current | Special Feature |
|---|---|---|---|---|
| Keymoo | SZW26-63/D202.2D IP65 | 2 Poles, 3 Positions | 660V / 63A | Exterior box option |
| Baomain | SZW26-63/D303.3 | 3 Poles, 3 Positions | 660V / 63A | 3 Phase |
| Baomain | SZW26-63/0-3.3 | 3 Poles, 4 Positions | 660V / 63A | 0-1-2-3 positions |
| XINTAIHELE | JYW29-63/3 | 3 Poles, 3 Positions | 690V / 63A | 12-terminal main switch box |
| Keymoo | 63A Rotary Changeover With Exterior Box | 3 Poles, 3 Positions | 660V / 63A | 2-Way 3NO 3NC |
Keymoo 63A Rotary Changeover SZW26-63/D202.2D
The Keymoo SZW26-63/D202.2D is a 2-pole, 3-position rotary changeover switch rated for 660V and 63A. It features an exterior box option for enhanced enclosure and IP65-rated protection against dust and water. With eight terminals and a compact 4.3 x 4.3 x 5.2 inches footprint, this unit supports safe, reliable switching between energy sources in solar or grid configurations.
Baomain SZW26-63/D303.3 Rotary Changeover Switch
The Baomain SZW26-63/D303.3 is a 3-pole, 3-position rotary switch designed for 660V and 63A. It supports three-phase configurations and provides a straightforward switching arrangement (1-0-2). Its robust construction makes it suitable for applications requiring dependable source selection with multiple poles for enhanced control.

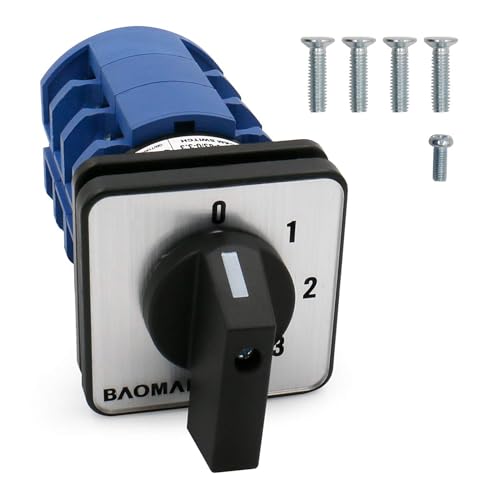

Baomain SZW26-63/0-3.3 Rotary Changeover (4 Position)
This Baomain unit expands to four positions (0-1-2-3) across 3 poles, maintaining 660V and 63A ratings. The 4-position design increases configuration options for load shedding, test modes, or seamless source transition. It is well-suited for residential or industrial switching needs that require more granular control over each circuit.
Baomain Master Switch Exterior Box LW28-63/4
The Baomain exterior box LW28-63/4 is designed to house a universal rotary changeover cam switch (SZW26-63). This accessory package includes the master switch exterior box and necessary fittings, facilitating safer installation and easier maintenance in complex switching systems or solar/grid installations.
XINTAIHELE JYW29-63/3 Universal Rotary Changeover
The XINTAIHELE JYW29-63/3 offers 3 poles and 3 positions, rated at 690V and 63A. It features 12 terminals and a compact, main-switch-capable design for reliable solar and grid switching. The higher voltage rating provides flexibility for demanding environments while keeping current handling robust.
KEYMOO 63A Rotary Changeover With Exterior Box
This Keymoo model provides a 3-pole, 3-position rotary changeover with an exterior box and 12 terminals. It is designed for versatile solar and grid switching scenarios, delivering reliable operation at 660V and 63A with a compact exterior enclosure for easier mounting and protection against the elements.
Baomain SZW26-63/D202.2 8-Terminal, 3-Position
The Baomain SZW26-63/D202.2 offers 3 poles with 8 terminals and 3 positions (1-0-2). With 660V and 63A ratings, this unit suits compact, high-current switching needs where space and terminal count matter. It remains a solid option for economical yet capable source switching.
Buying Guide: Key Purchase Considerations
- Voltage and current ratings: Confirm Ui voltage and Ith current ratings align with your system requirements. 660V and 63A are common in these models, but higher-voltage variants exist for specialized use.
- Poles and positions: Choose between 2-pole or 3-pole designs and the number of positions (3-position ON-OFF-ON is standard; 4-position variants offer additional run modes).
- Phasing: Decide between 2-phase and 3-phase configurations depending on your source and load arrangement. Three-pole designs suit 3-phase systems.
- Enclosure and IP rating: Exterior boxes increase protection against dust and moisture (IP65 is common). An external master switch can simplify integration.
- Terminals: A higher terminal count allows more wiring options, but ensure the terminal sizes match your conductor gauge (e.g., up to AWG 8 in some models).
- Mounting and footprint: Consider dimensions (length x width x height) to ensure compatibility with existing panels and space constraints.
- Safety and compliance: Verify any regulatory or safety certifications relevant to your installation environment and warranty terms.
