Best 600 Amp CT Cabinet Options for Clean Power Distribution
If you’re assembling a robust DC or AC power distribution setup, a 600 amp current transformer (CT) cabinet or related distribution cabinet component can simplify monitoring and protection. This guide highlights five practical choices and explains who benefits most from each. Choose these options to improve accuracy, reliability, and ease of installation in electrical panels, control cabinets, or workshop setups.
| Product | Brand | Best For | Why It’s a Fit |
|---|---|---|---|
| Quick Installation 400A500A600A Open Type CT AKH-0.66KCT-60X40 | JJCEQBPE | Budget-friendly, basic CT cabinet installations | Offers 600A(5A) transformer configuration suitable for simple distribution cabinets. |
| Quick Installation 400A500A600A Open Type CT AKH-0.66KCT-60X40 | ZDIEVYPP | Same-family option for consistent parts | Similar sensors-focused cabinet transformation with 600A 5A capability. |
| Quick Installation 400A500A600A Open Type CT AKH-0.66KCT-60X40 | LDNZAMXW | Alternatives for matched cabinet parts | Open-type CT distribution cabinet transformation with 600A 5A compatibility. |
| AC Ammeter 3A 5A 10A 20A 30A 50A Pointer Meter 64 x 80mm | AAHSHPNV | Direct meter mounting in smaller panels | Indicates AC current with a compact 64x80mm footprint for direct use in cabinets. |
| Hall Effect Current Sensor 2.5V±2V 50A-400A Open Loop | FTTYHT | High-precision CT sensing | Offers 0.5% (or 0.2%) accuracy, linearity, and IEC 61869 standards readiness. |
Note: Each option emphasizes different aspects—ease of installation, sensor accuracy, and display capability. The table above helps you compare core use cases at a glance.
JJCEQBPE Quick Installation CT Cabinet
Features highlight a 400A500A600A open-type CT arrangement with 600A 5A capability. This cabinet is best for buyers who want a straightforward installation path and a cost-conscious entry into CT-based distribution. It’s well-suited for smaller panels or workshops where space and simplicity matter. Caution: verify mounting dimensions and connector compatibility with your panel before purchase.
ZDIEVYPP Quick Installation CT Cabinet
Same family of quick-install CT cabinets designed for 600A 5A tap configurations. This option appeals to buyers who want consistent part availability and rerouting capability within a modular cabinet system. Limitation: detailed specifications may vary by seller; confirm sensor rating and enclosure size for your application.
LDNZAMXW Quick Installation CT Cabinet
Another quick-install option in the 400A500A600A range with 600A 5A compatibility. This choice is best for buyers who value alternative supplier options or require a backup cabinet with similar specifications. Limitation: availability of spare parts and accessories should be checked to maintain long-term serviceability.
CFYGULKK 69l9 AC Ammeter Cabinet
Designed for direct mounting of AC ammeters in cabinets, this option supports 3A to 50A ranges and provides a compact, readable meter display. Best for users who need a clear, local readout in a panel. Caution: this is a measurement accessory rather than a full CT cabinet; pairing with a dedicated CT sensor ensures accurate current measurement.

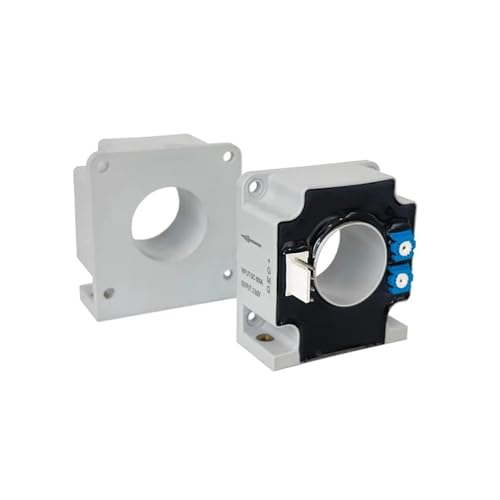

FTTYHT Hall Effect Current Sensor
Offers high-accuracy current sensing with 2.5V±2V input and ranges up to 400A. This sensor is suitable for precise metering in distribution cabinets and can be paired with monitoring modules for real-time data. Limitation: open-loop design may require careful signal conditioning in some setups.
Buying Guide
What matters most when choosing a 600 amp CT cabinet or related cabinet components:
- Current rating and accuracy: Ensure the CT rating matches your system’s max current and that the sensor’s accuracy meets your monitoring needs. Look for 0.5% class or IEC 61869-compliant sensors if precision is critical.
- Mounting and enclosure compatibility: Check panel cutouts, mounting depth, and enclosure dimensions to fit your cabinet. Open-type CT cabinets can simplify wiring but require adequate space.
- Ease of installation: Quick-install or plug-and-play designs reduce on-site work and potential wiring errors. Verify available connector types and wiring schemes (CT, 5A outputs, or 2.5V signals).
- Display and readout options: Decide if you need local meters (AC ammeter displays) or remote monitoring via a data logger or controller. Local meters are convenient for quick checks; remote systems enable data analysis.
- Sensor compatibility and expansion: If you plan future upgrades, choose cabinets and sensors with compatible accessories and easy expansion paths.
- Budget and availability: Multiple brands offer similar specs. Consider lead times, spare parts, and regional availability for long-term maintenance.
Common buying questions
- What is a CT cabinet used for? It houses current transformers or sensors used to monitor current in electrical distributions safely and accurately.
- Do I need 600A or 400A CTs? Choose based on the maximum expected current in your circuit. A 600A rating provides headroom for higher loads or future expansion.
- Is an open-type CT cabinet easier to install? Generally yes, because wiring access is simpler, but consider enclosure protection and environmental exposure.
- Can I mix meters and CT sensors in one cabinet? Yes, but ensure compatibility and proper signal conditioning for accurate readings.
For best results, align the chosen CT cabinet with the monitoring and protection scheme of your electrical system. The options above provide a range of entry points from simple meters to precise current sensors in modular cabinets.
