Best 5kW Grid Tie Inverter Options for Reliable Home Solar Power
Choosing a 5kW grid-tie inverter involves balancing efficiency, reliability, compatibility with your battery and PV setup, and how you plan to integrate with the utility grid. This guide highlights five 5 kW-class grid-tie inverters designed to support American家庭 solar systems, including models that handle hybrid charging, MPPT control, and flexible output configurations. Each option is evaluated for typical home, RV, or small commercial installations, focusing on safety, performance, and ease of installation.
Summary table of selected products:
| Product | Brand | Key Feature | Output Type | PV Input Range |
|---|---|---|---|---|
| SUNGOLDPOWER UL1741 5000W Hybrid Solar Inverter | SGPWATT | All-in-One with 80A MPPT | Pure Sine Wave | PV up to 5500W |
| 5KW Grid-Tied Photovoltaic Inverter (GD6248JMH/48V) | LVSEDTAL | Integrated Controller | Pure Sine Wave | PV input flexibility |
| Y&H 5000W Hybrid Inverter | Y&H | 80A MPPT, 4 charging modes | Pure Sine Wave | PV up to 6000W |
| PowMr 5000W Solar Inverter | PowMr | Built-in MPPT, LCD monitoring | Pure Sine Wave | PV up to 5500W |
| Y&H 10000W Hybrid Inverter | Y&H | Dual MPPT, 120A, multiple modes | Pure Sine Wave | PV up to 6400W |
SUNGOLDPOWER 5000W Hybrid Inverter: All-In-One 48V System
The SUNGOLDPOWER SPH504880A combines a 5000W 48V DC input with a 110V/120V AC output in a single unit. It includes up to 80A MPPT solar charging and a 40A AC battery charger, enabling multiple charging modes to suit solar-first or grid-assisted setups. The inverter is UL1741 listed by ETL and supports four modes: AC Priority, Solar Priority, Only Solar, and a Hybrid with mains. It is designed to support off-grid components while providing robust protection for loads up to several horsepower, such as refrigerators, computers, and TVs. Note that it does not support parallel operation with other inverters.

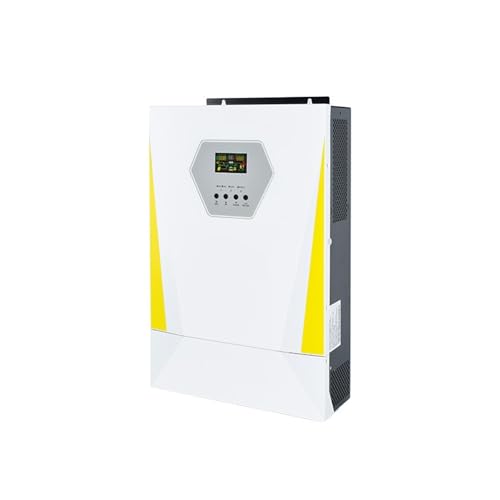

5KW Grid-Tied Inverter With MPPT Controller (GD6248JMH/48V6.2KW)
LVSEDTAL presents a 5kW grid-tied inverter with an integrated 100A MPPT battery charging controller. The design emphasizes long-term stability and compatibility with multiple energy sources, including solar, utility, and generator power. It is positioned as a flexible backup solution that can act as a reliable power source during utility outages, while providing smooth interaction with the grid. It supports flexible scheduling of charging and discharging to optimize battery life and system efficiency.
Y&H 5000W Hybrid Inverter: Battery-Free Operation & MPPT
This Y&H 5000W inverter offers a peak power of 11,000VA with a 48V input, a wide DC voltage range (120-500V), and up to 22A MPPT input. It features four charging modes (PV priority, utility priority, hybrid, and only solar) with two output modes (inverter and mains) to match diverse installation needs. The device emphasizes high-efficiency SPWM-generated pure sine wave output, suitable for homes, RVs, and off-grid applications, while supporting lithium and lead-acid batteries.
PowMr 5000W Solar Inverter With Built-In MPPT
PowMr offers a 5000W pure sine wave inverter from 48V DC to 110V/120V AC, with an internal 80A MPPT controller and a maximum PV input of 5500W. It uses digital control loops and SPWM to deliver high charging efficiency (up to 99.9%). The inverter supports a wide input range and an AC input range of 90-140V, with output options of 100/105/110Vac ±5%. A built-in LCD display provides real-time status and fault codes for straightforward troubleshooting.
Breulscog 5KW Hybrid Inverter: Grid-Tie Ready
Breulscog’s 5KW/5.5KW units are designed for off-grid and grid-tied setups, featuring 48V input and 5000-5500W PV input capacity. The model emphasizes compatibility with both solar and wind or grid sources, offering a compact all-in-one solution with WiFi connectivity for monitoring. While the product page highlights inverter and grid-tie functionality, potential buyers should verify parallel operation capabilities if multiple units are planned for a larger system. The listing underlines compatibility with various system configurations and remote monitoring via WiFi.
SUNGOLDPOWER 10000W Hybrid Inverter: Dual MPPT
SUNGOLDPOWER’s SPH10048P is a high-capacity 10kW inverter with dual MPPT inputs and up to 200A of battery charging. It supports 120/240V split-phase outputs and can be configured for single-phase outputs as well. The unit includes a WiFi module for monitoring and an emphasis on protection features (over-voltage, over-current, battery protection). This model is suitable for larger homes or small commercial installations that require robust backup and seamless integration with solar, battery storage, and grid power.
Buying Guide: Key Purchase Considerations
- System architecture: Determine whether you need pure grid-tie, hybrid, or off-grid capability. Hybrid inverters support both solar input and battery charging, while grid-tie only inverters rely on the grid.
- MPPT capacity and PV input range: More MPPT channels and higher input power handle larger solar arrays and varying sun conditions, improving energy harvest.
- Battery compatibility: Confirm compatible battery types (Lithium, Lead-Acid, LiFePO4) and charging currents. Battery management features extend life and ensure safe operation.
- Output configuration: Assess whether you need split-phase 120/240V service, single-phase 120V, or multi-mode outputs for diverse loads.
- Safety and standards: Look for UL1741 (or equivalent) listings, efficient protection features, and warranty terms to ensure long-term reliability.
- Monitoring and connectivity: WiFi or app-based monitoring helps optimize performance and diagnose issues remotely.
- Expansion potential: If you anticipate scaling, verify parallel operation capability or modular scalability for future upgrades.
Practical considerations include local utility interconnection rules, possible required permits, and installation constraints such as space, ventilation, and wiring. Compare models not only by peak power but by continued sustainable output, charging efficiency, and how well they align with your existing solar panels, battery banks, and electrical panel. For grid-tie use, ensure the inverter’s anti-islanding and safety features comply with regional requirements. For off-grid or hybrid installations, assess the inverter’s ability to manage multiple charging sources and maintain stable voltage and frequency under load changes.
