Best 5000 Psi Solenoid Valve Guide for High-Pressure Systems
This article highlights five top 5000 psi solenoid valves ideal for high-pressure hydraulic and pneumatic applications. Each product is evaluated on design, pressure rating, and suitability for demanding environments. The guide also includes a buying overview to help you compare features such as coil type, port sizes, and flow rates to match your system needs.
| Product | Brand | Max PSI | Type |
|---|---|---|---|
| PARKER DSH161CR | Parker | 5000 | 2-position, 2-way, Normally Closed |
| PARKER DSH161NR | Parker | 5000 | 2-way, Normally Open |
| Chief 12V DC Stackable | Chief | 5000 | Stackable Solenoid-Operated Circuit Selector |
| Chief D05 | Chief | 5000 | 2-Position, Spring Offset Closed |
| Chief DO3 | Chief | 5000 | 3-Position, Spring Center Open |
Parker DSH161CR 2-Position, 2-Way, 5000 PSI
The Parker DSH161CR is a two-position, two-way valve rated for up to 5000 psi (350 bar). It operates with a normally closed configuration, making it suitable for systems where flow must be shut off when de-energized. The robust poppet design helps maintain a tight seal under high pressure, and the compact form factor facilitates integration into crowded hydraulic manifolds.
Parker DSH161NR 2 Way, 40 GPM, 5000 PSI
The Parker DSH161NR variant provides a normally open configuration with a 2-way flow and a maximum inlet pressure of 5000 psi. It is described as a surplus item, with potential packaging wear or may be unused. Its high-pressure capability makes it a viable option for systems requiring quick re-routing of flow when energized.

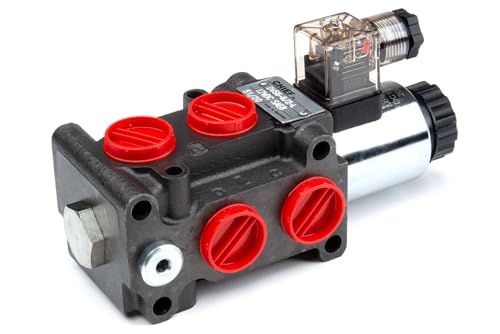

Chief 12V DC Stackable Solenoid Valve
The Chief stackable valve is designed for circuit-logic control with stackable solenoids. It supports up to 5000 psi and offers SAE 8 ports. This model is particularly adaptable for modular hydraulic systems where multiple valves must operate in sequence or parallel to achieve complex flow patterns.
Chief D05 (2 Position Spring Offset Closed)
The Chief D05 features a spring-offset closed design across two positions and can handle up to 5000 psi with a 32 GPM flow rating. This valve is suitable for systems that require secure shutoff when de-energized and reliable performance in demanding hydraulic circuits.
Chief DO3 (3 Position Spring Center Open)
The Chief DO3 DO3S-2H-115A-35 model provides three positions with a spring center open configuration, designed for 115 V AC operation and up to 5000 psi. It includes two solenoids and supports a series circuit type for complex control schemes, delivering flexible hydraulic routing in high-pressure environments.
Buying Guide: Key Considerations For 5000 Psi Solenoid Valves
When selecting a 5000 psi solenoid valve, consider pressure rating strictness, valve configuration, and electrical requirements. Decide between normally open, normally closed, or mixed arrangements based on system fail-safety needs. The number of ports (2-way vs 3-way) affects how you route flow and may influence valve size and mounting.
- Valve type and position: Determine whether your application needs 2-position, 3-position, or a stackable valve for modular circuits. Do you require spring offset or spring center operation for reliable return in power-down scenarios?
- Port sizing and fittings: Ensure SAE port compatibility and matching seal materials (e.g., VITON) with the working fluids, temperatures, and potential chemical exposure.
- Electrical characteristics: Verify coil voltage (12V DC, 115V AC, etc.), coil power draw, and the ability to drive the valve from your existing control system. Consider coil resistance and heat dissipation.
- Cycle life and durability: Look for valves designed for high cycle rates in demanding environments. Materials like brass housings offer corrosion resistance but require compatibility with fluids used.
- Environmental and safety: Consider enclosure ratings, mounting options, and environmental conditions such as vibration, dust, and moisture exposure. For hazardous or explosive settings, select intrinsically safe or approved variants where applicable.
- Maintenance and availability: Opt for valves with readily available replacement parts, seals, and diaphragms. Compatibility with existing hydraulic manifolds can reduce installation complexity.
In summary, the Parker and Chief models featured here provide a range of configurations—from simple two-position, two-way valves to multi-position and stackable designs. Matching pressure tolerances, solenoid voltage, and port formats with your system ensures reliable, high-pressure operation and long-term performance.
