Best 40 Amp Timer Switches for Reliable Scheduling
Choosing a 40 amp timer switch means balancing high-load capability with dependable daily programming. This guide highlights top options that handle heavy-duty loads such as pumps, HVAC equipment, pool equipment, and outdoor lighting. Each model brings a different mix of voltage compatibility, enclosure type, and programming features to fit residential, commercial, and outdoor installations.
Summary of selected products
| Product | Voltage/Load | Program Type | Enclosure | Key Benefit |
|---|---|---|---|---|
| Intermatic T104 24-Hour Mechanical Timer | 208–277 VAC, DPST, 40A | 24-hour mechanical, up to 12 ON/OFF/daily | Industrial metal enclosure | Heavy-duty, dual-leg control for high-demand circuits |
| Woods 59104RWD Outdoor 24-Hour Timer | 208/277V, 40A DPST | 24 ON/OFF per day, repeats daily | Outdoor-rated housing | Weather-ready for exterior use |
| Intermatic T101 24-Hour Mechanical Timer | 120V SPST, 40A | 24-hour control, up to 12 ON/OFF/daily | Indoor metal enclosure | Reliable, simple mechanical program |
| DEWENWILS 24-Hour Mechanical Timer Switch | 208–277VAC, DPST, 40A | Two on/off programs per day | Metal enclosure, weatherproof | Rugged design with straightforward wiring |
| SURAIELEC Pool Timer | 120/240/277 VAC, 40A | 7-day programmable, DST, backup | Digital box (indoor/outdoor capable) | Seven-day versatility with battery backup |
The following sections dive into each product’s standout features, typical uses, and how they fit into a 40 amp timer switch setup. The focus is on performance, durability, and ease of installation for American installers and homeowners.
Intermatic T104 24-Hour Mechanical Timer
The Intermatic T104 is a 24-hour mechanical timer rated for 208–277 VAC with double-pole, single-throw (DPST) switching. It supports heavy loads up to 40 amps and up to 5 HP motors at 240V, making it suitable for indoor HVAC compressors, pumps, and large lighting circuits. The timer’s analog dial enables up to 12 ON/OFF cycles per day with at least a one-hour interval, allowing dependable daily automation. Its industrial-grade metal enclosure provides durable, secure mounting in mechanical rooms, control panels, or electrical closets. This model does not include digital programming, which offers a simple, robust option for fixed schedules. Typical applications include high-voltage lighting, pumps, and general equipment control inside a facility.
Key points:
– Heavy-duty 40A DPST control for both circuit legs
– 24-hour mechanical scheduling with up to 12 cycles
– Indoor metal enclosure for secure installation
Woods 59104RWD Outdoor Timer
The Woods 59104RWD is designed for outdoor or damp environments, delivering 24-hour mechanical scheduling on a DPST 40A platform. It repeats daily with up to 24 ON/OFF settings, making it a good fit for exterior lighting, pool equipment, and outdoor pumps. The unit’s rugged construction stands up to weather exposure when properly installed in a suitable enclosure. Installation is straightforward, though it shares the general limitations of mechanical timers, such as fixed one-hour intervals and lack of digital DST adjustments. Its outdoor suitability helps simplify scheduling for landscape lighting and pool pumps in residential settings.
Key points:
– Outdoor-rated, 40A DPST timer
– 24 ON/OFF settings per day with daily repetition
– Robust construction for exterior installations
Intermatic T101 24-Hour Mechanical Timer
The Intermatic T101 provides 120V SPST control with a 40A rating and a 24-hour dial. It supports up to 12 ON/OFF operations per day, with a minimum interval of one hour. A manual override switch adds practical control when immediate equipment operation is needed. This model is particularly suitable for indoor installations like lights, water heaters, fans, and HVAC components where a compact, reliable mechanical timer is preferred. As a simpler option, it offers robust performance without the complexity of digital timers.
Key points:
– 120V SPST, 40A rating for single-pole loads
– Up to 12 ON/OFF cycles per day
– Manual override for quick control
DEWENWILS 24-Hour Mechanical Timer Switch
The DEWENWILS 24-hour timer switch supports 208–277 VAC with a DPST configuration and a 40A maximum load. It is designed for heavy-duty indoor or weather-exposed settings, such as pool pumps, water heaters, lights, and fans. The internal wiring layout reduces the need for extra jumper wires, making installation faster and more accessible for first-time users. The timer provides two on/off programs within a 24-hour period and repeats daily. It is ETL listed and built to withstand tougher environments, which helps ensure long-term reliability in demanding applications.
Key points:
– 40A, 208–277V, DPST with two daily programs
– Weatherproof metal enclosure designed for challenging environments
– ETL listed for safety and reliability

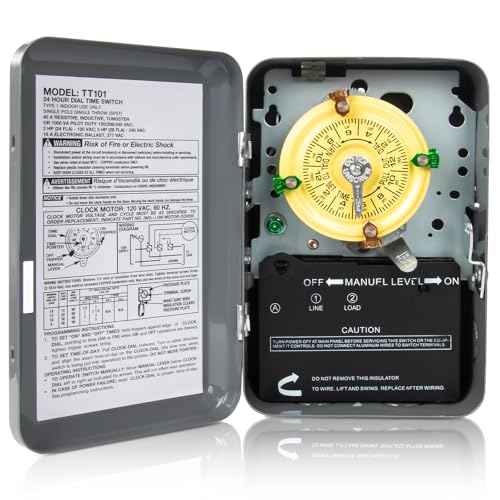

T101 Mechanical Timer Switch (MEOZXIXT)
The T101 mechanical timer switch from MEOZXIXT is specified for 120V with a 40A SPST rating and a 2HP load capability, suited for outdoor lighting, water heaters, HVAC, and pool pumps. It offers 12 ON/OFF cycles per day and a manual override, ensuring flexible operation. The device is designed for residential and commercial use, with a focus on durability and predictable timing. The product notes emphasize versatility across pool pumps, water heaters, fans, and HVAC, but also caution that it is not waterproof, so placement should avoid direct exposure to moisture.
Key points:
– 120V SPST, 40A, 2HP rating
– 12 daily ON/OFF cycles with manual override
– Not waterproof; install in a protected location
SURAIELEC Pool Timer (7-Day Digital)
The SURAIELEC 7-day digital pool timer offers 40A compatibility and supports 120/240/277 VAC. It is suitable for pool pumps, water heaters, and outdoor lighting, with ETL listed safety compliance. It provides up to 20 ON/OFF program settings, including DST adjustments, 15-day combinations, single-day settings, and a DST feature. A built-in rechargeable battery backup can retain time and settings for up to three months, ensuring continuous operation during outages. This model blends digital precision with practical outdoor resilience for complex weekly schedules.
Key points:
– 7-day programmable digital timer, 40A
– Rechargeable backup battery preserves time and settings
– DST, 20 program settings, and versatile load support
Buying Guide: Key Purchase Considerations
Load and voltage: Confirm the timer’s voltage rating (120V, 208–277V, or mixed) and its maximum load (40A is common for high-demand equipment). DPST (two-pole) switching is essential for controlling both legs of a high-voltage circuit, while SPST (single-pole) suits simpler applications.
Enclosure and environment: Indoor timers are fine for mechanical rooms and panels, while outdoor or damp locations require weatherproof, UL/ETL-rated enclosures. Outdoor timers should be protected from direct exposure to moisture.
Programming type: Mechanical timers offer simple, robust scheduling with fixed intervals (usually hourly), while digital timers provide more programming options, multi-day schedules, and DST handling. Assess whether you need two daily programs or a full seven-day cycle.
Backup and reliability: Digital timers with battery backups help maintain settings during outages, especially for outdoor or pool equipment. Mechanical timers lack memory during power loss but are highly durable with minimal failure modes.
Installation considerations: Ensure compatibility with existing wiring, enclosure space, and trip points in electrical panels. Follow manufacturer wiring diagrams and local electrical codes. For outdoor installs, secure weatherproofing and proper cable routing to minimize exposure to the elements.
Use case variety: For pool equipment, prioritize corrosion resistance and water exposure tolerance. For HVAC and pumps, a reliable 40A rating and stable schedules are crucial to prevent cycling on and off too frequently, reducing wear and energy waste.
Summary of the five highlighted options: Intermatic T104 and T101 are dependable mechanical timers with solid enclosure options for indoor use. Woods 59104RWD and DEWENWILS offer outdoor-ready solutions with DPST configurations. SURAIELEC’s seven-day digital timer delivers enhanced weekly scheduling with battery-backed memory, ideal for complex outdoor and pool setups.
