Best 300 Amp Single-Phase Panel Solutions for Industrial Power
For heavy-duty electrical control and monitoring, a 300A single-phase panel is a critical backbone. This guide highlights five top products designed to handle high current, reliable switching, and accurate monitoring. Each item is suitable for industrial automation, panel mounting, or field installations where robust performance matters. Explore options from trusted brands and learn how to choose the right combination of SSRs, current transformers, and energy meters to fit your system.
Product Overview
| Product | Type | Key Benefit |
|---|---|---|
| Rayne’s World 300A DA SSR Module | Solid State Relay | High-current 24–480VAC load with 3–32VDC control |
| AMNOUR 300A SSR Module | Solid State Relay | Compact single-phase SSR up to 480VAC output |
| PXFOCOYD Digital Three-Phase Meter | Energy/Power Meter | All-in-one monitoring with data protection and overload alerts |
| KIQPEEFK SCT024TS Current Transformer | Split Core Current Transformer | Plug-and-play monitoring with 5A output across several ranges |
| LVSEDTAL Energy Meters (300A input) | Single-Phase Meter | Real-time voltage, current, and bidirectional energy reporting |
These selections cover high-current switching, safe DC control, and reliable metering. They pair well with panel installations requiring 300A capacity and provide flexibility for automation and energy management tasks in commercial and industrial settings.
Rayne’s World 300A DA SSR Module
The Rayne’s World 300A DA solid-state relay module is designed for single-phase loads with a broad 24–480VAC switching range. Its control input accepts 3–32VDC, enabling straightforward PLC or automation interface. This heavy-duty unit supports high-current applications from 60A up to 400A, making it a strong option for robust panel control and safety-driven switching.
AMNOUR 300A SSR Module
The AMNOUR SSR module provides a compact, single-phase switching solution rated up to 480VAC. It emphasizes non-contact operation with low switching losses, which helps minimize heat and wear in high-current panel environments. It is suitable for automation systems requiring reliable solid-state switching with straightforward DC control (3–32VDC).
PXFOCOYD Digital Three-Phase Meter
This all-in-one meter displays voltage, current, power, energy, and power factor on a single screen. It also features data protection during outages and an intelligent overload alert system with visual indicators. While not a relay, it plays a critical role in monitoring, diagnosing, and optimizing 300A single-phase systems.

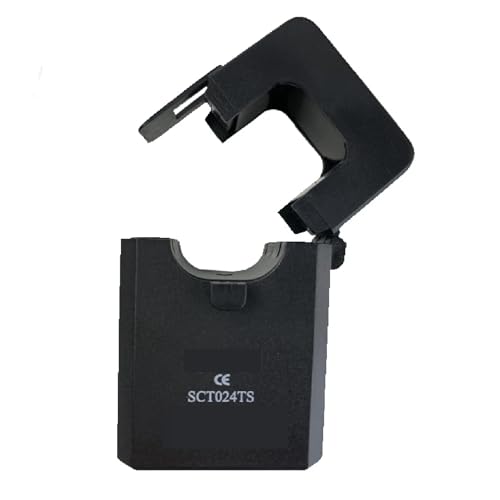

KIQPEEFK SCT024TS Split Core Transformer (100A–300A)
The SCT024TS line from KIQPEEFK offers hinged, split-core current transformers with five input ranges and a standard 5A secondary output. These transformers enable easy, non-intrusive current monitoring for 300A-class panels, simplifying integration with existing meters, PLCs, or data loggers.
KIQPEEFK SCT024TS 0.5 Class Transformer
A second variant in the SCT024TS family, this transformer provides similar split-core convenience with a 0.5 class accuracy option, suitable for precision energy monitoring and safety compliance on larger 300A panels. It complements metering and SSR components by delivering accurate current measurement across multiple ranges.
LVSEDTAL Single-Phase Energy Meter (300A Input)
LVSEDTAL’s single-phase meter supports voltage, current, power factor, active power, and frequency with real-time reporting. It is designed for easy setup and operation in 300A panels, including bidirectional energy measurement for solar or grid-tied configurations. This meter adds visibility and control to high-current installations.
LVSEDTAL ACR10R-D16TE Energy Meter With Inverter
The ACR10R-D16TE variant offers similar real-time reporting with an integrated inverter-focused design. It supports bidirectional energy reporting, making it suitable for solar-plus-grid setups and other scenarios where energy flow direction matters for 300A systems.
Buying Guide
When selecting components for a 300A single-phase panel, several factors influence long-term reliability and performance:
- Current and voltage ratings: Ensure SSRs and meters support your exact load range (60–400A for SSRs and up to 480VAC), and verify your actual supply voltage.
- Control interface: Choose DC control ranges (commonly 3–32V) compatible with your PLCs or automation controllers.
- Protection and safety: Look for low-switching losses, proper isolation, and clear overload indicators to prevent equipment damage.
- Monitoring and data: All-in-one meters reduce wiring, but confirm data logging, outage protection, and alarms meet your monitoring requirements.
- Ease of installation: Split-core transformers enable non-disruptive current measurement, important for retrofit projects.
- System integration: Ensure compatibility with existing panels, metering systems, and any communication protocols used (Modbus, etc.).
- Physical fit: Panel mounting dimensions and heat dissipation should align with enclosure space and ambient conditions.
For robust industrial panels, combining a high-current SSR with accurate metering and convenient current sensing provides operational clarity and protection. The selected products above offer a balanced mix of switching, monitoring, and measurement, suitable for diverse 300A single-phase applications.
