Best 3 Phase RFI Filter Solutions for Industrial Power Systems
Choosing a reliable 3-phase RFI (radio frequency interference) filter is essential for protecting industrial equipment, improving electromagnetic compatibility, and ensuring stable operation of motors, drives, and controllers. This article presents five high-potential options, highlighting their specifications, intended use, and key features. Each product is analyzed for three-phase compatibility, attenuation performance, installation footprint, and suitability for commercial or rugged environments. Use the buying guide below to compare options and identify the best fit for your system’s electrical ratings and space constraints.
| Product | Brand | Model / Description | Key Feature |
|---|---|---|---|
| Ramsi Electronics 3 Phase Rfi Filter 3G3mv Pfi 3010-E 1592Omf | Generic | 3G3mv Pfi 3010-E | Basic three-phase filter for EMI suppression |
| Power Line Filters 42A SFTY TERM BLOCK RFI FLTR-3 PHASE SYS | SCHAFFNER | RFI FLTR-3 PHASE SYS | 40+ amp rating, robust block terminal design |
| Noteflora Single-Phase Two-Stage EMI/RFI Power Supply Filter | Noteflora | Single-Phase Two-Stage EMI/RFI Filter | Compact footprint, versatile connections |
| KDNHVRQY Three-Phase and Three-Line Bipolar EMI Filter CW12B | KDNHVRQY | CW12B series, 10A/20A/30A/40A/50A/60A | High-current three-phase protection |
| Three-Phase and Three-Line Bipolar EMI Filter CW12B | EIUWWVT | CW12B series, 10A/20A/30A/40A/50A/60A | Balanced bipolar EMI filtering |
Ramsi Electronics 3 Phase Rfi Filter 3G3mv Pfi 3010-E
The Ramsi Electronics 3G3mv PFi 3010-E filter is designed for three-phase electrical systems needing EMI suppression across motor drives and industrial controllers. Its compact form supports integration in tight switchgear or enclosure spaces. While marketed as a general-purpose filter, its three-phase configuration targets suppression of common-mode and differential-mode noise generated by power electronics. The unit’s rated performance aligns with typical industrial drives, offering attenuation across the 150 kHz to several MHz range. Ensure compatible input voltage and current requirements prior to integration.

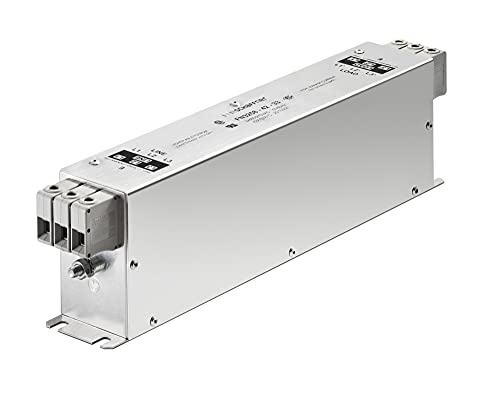

Power Line Filters 42A SFTY TERM BLOCK RFI FLTR-3 PHASE SYS
The SCHAFFNER 42A RFI Filter for 3-phase systems combines reliability with a sturdy terminal block design suitable for industrial environments. This model emphasizes robust electrical isolation and consistent attenuation of both common and differential-mode interference. It is well-suited for equipment requiring higher current handling while maintaining compact installation within control panels. Potential users should verify voltage ratings and terminal configurations to ensure straightforward mounting and safe enclosure clearance.
Noteflora Single-Phase Two-Stage EMI/RFI Power Supply Filter
Noteflora’s single-phase two-stage EMI/RFI filter provides a compact footprint with versatile connector options, making it ideal for tight spaces in automation cabinets and communication devices. While this item is single-phase, it offers dual-stage attenuation and a broad voltage tolerance suitable for controlled equipment and lab setups. It is worth considering for supplementary filtering in systems that combine China-made drives with sensitive electronics, though it is not a three-phase solution per se.
KDNHVRQY Three-Phase and Three-Line Bipolar EMI Filter CW12B
The KDNHVRQY CW12B model delivers three-phase and three-line bipolar EMI suppression with a focus on protecting sensitive loads from interference. Suitable for large motor drives and CNC equipment, the CW12B range accommodates various current ratings (10A–60A) to fit different system requirements. The bipolar configuration helps balance line-to-line and line-to-ground interference, contributing to cleaner power delivery and improved uptime for critical applications.
Three-Phase and Three-Line Bipolar EMI Filter CW12B 380VAC
The EIUWWVT CW12B EMI filter extends three-phase protection to higher voltage systems (380VAC) with the same bipolar, three-line approach. This makes it a strong candidate for industrial installations featuring large drives, pumps, or presses where voltage spikes and conducted EMI are concerns. Available current ratings cover a wide range, enabling precise matching to motor and inverter outputs while maintaining compact enclosure presence.
Buying Guide: Key Considerations for Selecting a 3-Phase RFI Filter
- Current and voltage ratings: Ensure the filter’s maximum current and voltage align with the equipment and distribution panels. Overrating can reduce attenuation efficiency, while underrating may lead to overheating and failure.
- Filter topology: Three-phase filters may be delta- or wye-connected and can include common-mode and differential-mode attenuation. Consider the drive type (VFD, inverter, or servo) and whether premium suppression is needed for sensitive loads.
- Attenuation performance: Look for tests or datasheets detailing attenuation across relevant frequencies (often kHz to MHz). Higher attenuation improves EMC compliance but may come with physical trade-offs.
- Physical footprint and mounting: Evaluate enclosure space, panel depth, and terminal accessibility. Terminal blocks vs. screw terminals affect installation time and serviceability.
- Electrical noise environment: In factories with extensive wiring and nearby radio equipment, selecting a filter with robust common-mode rejection helps reduce interference radiated to or from the system.
- Reliability and standards: Check for certifications (CE, UL, CSA) and build quality features such as grounding, shielding, and protection against short circuits or surges.
- Maintenance and serviceability: Consider filters with clear labeling, standard mounting patterns, and availability of spare parts or replacement modules for extended equipment lifetimes.
- Integration with existing systems: Ensure compatibility with the control cabinet layout, wire routing, and any EMC-related requirements from the machine manufacturer.
- Cost vs. benefit: Weigh the initial investment against potential downtime avoidance, energy efficiency improvements, and compliance benefits in your facility.
